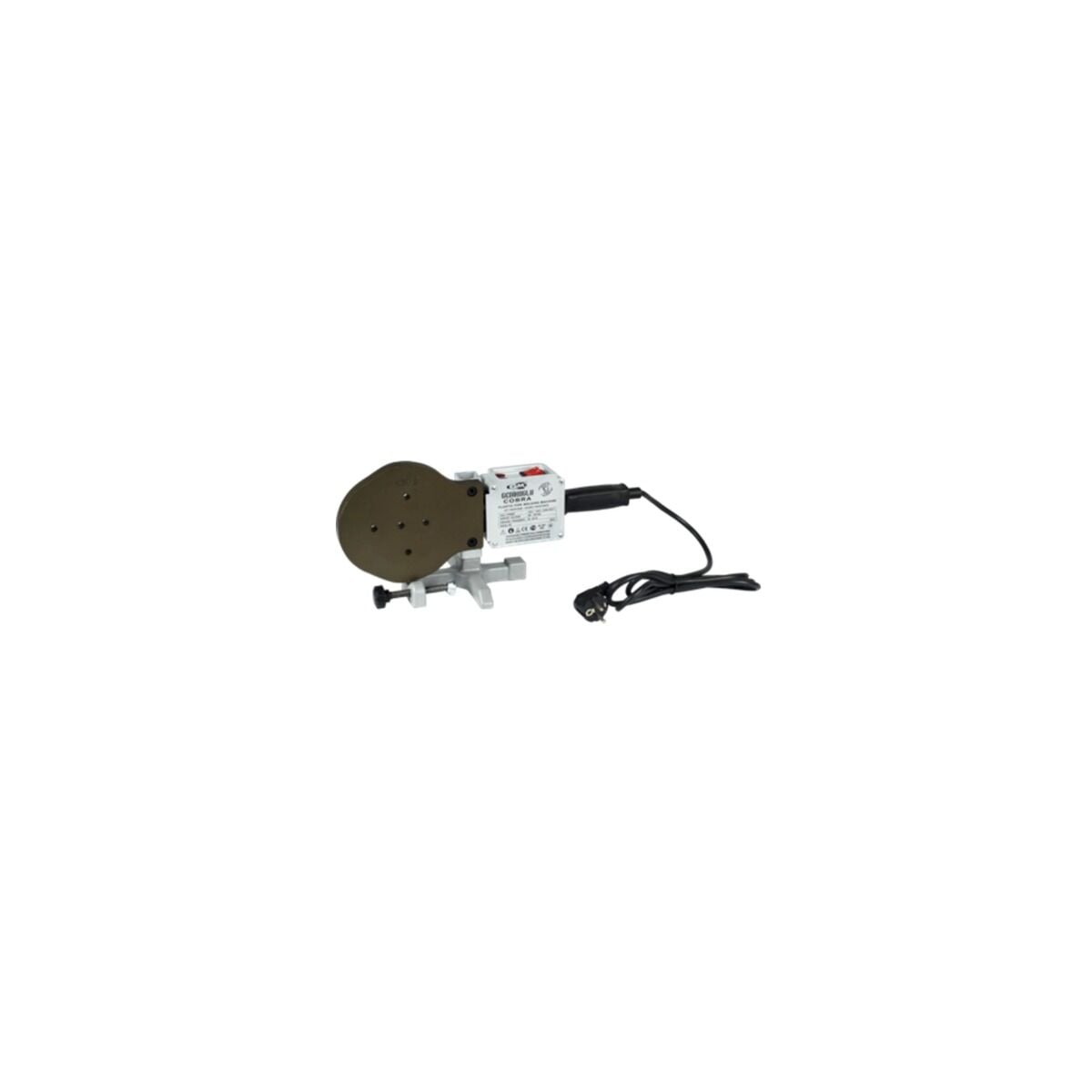

GF+ Aquasystem PP-R Welding Machine (Single unit) Ø50–125 mm
GF+ Aquasystem PP-R Welding Machine (Single unit) Ø50–125 mm — A high-power heating machine for socket fusion welding of large-diameter PP-R pipes and fittings (machine only, without dies).
Applications
- Risers and main distribution lines
- Boiler room and mechanical installations
- Welding from Ø50 to Ø125 mm (GF data)
Key features
- High heating power for large diameters
- Thermostatic temperature control
- Dies selected separately
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | PP-R Welding Machine - d50-125 mm |
Product code
| Product | Product code |
|---|---|
| GF+ Aquasystem PP-R Welding Machine (Single unit) Ø50–125 mm | 4301900044382 |
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
| Ø125 | 40 | 60 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Frequently asked questions
Are welding dies included?
The kit contents vary by product type; welding dies for missing diameters can be purchased separately as PP-R Welding Dies (Moulds).
What are the welding times?
The welding table below gives the heating, joining and cooling times per diameter for socket fusion welding.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
