GF+ Aquasystem PP-R Welding Kit

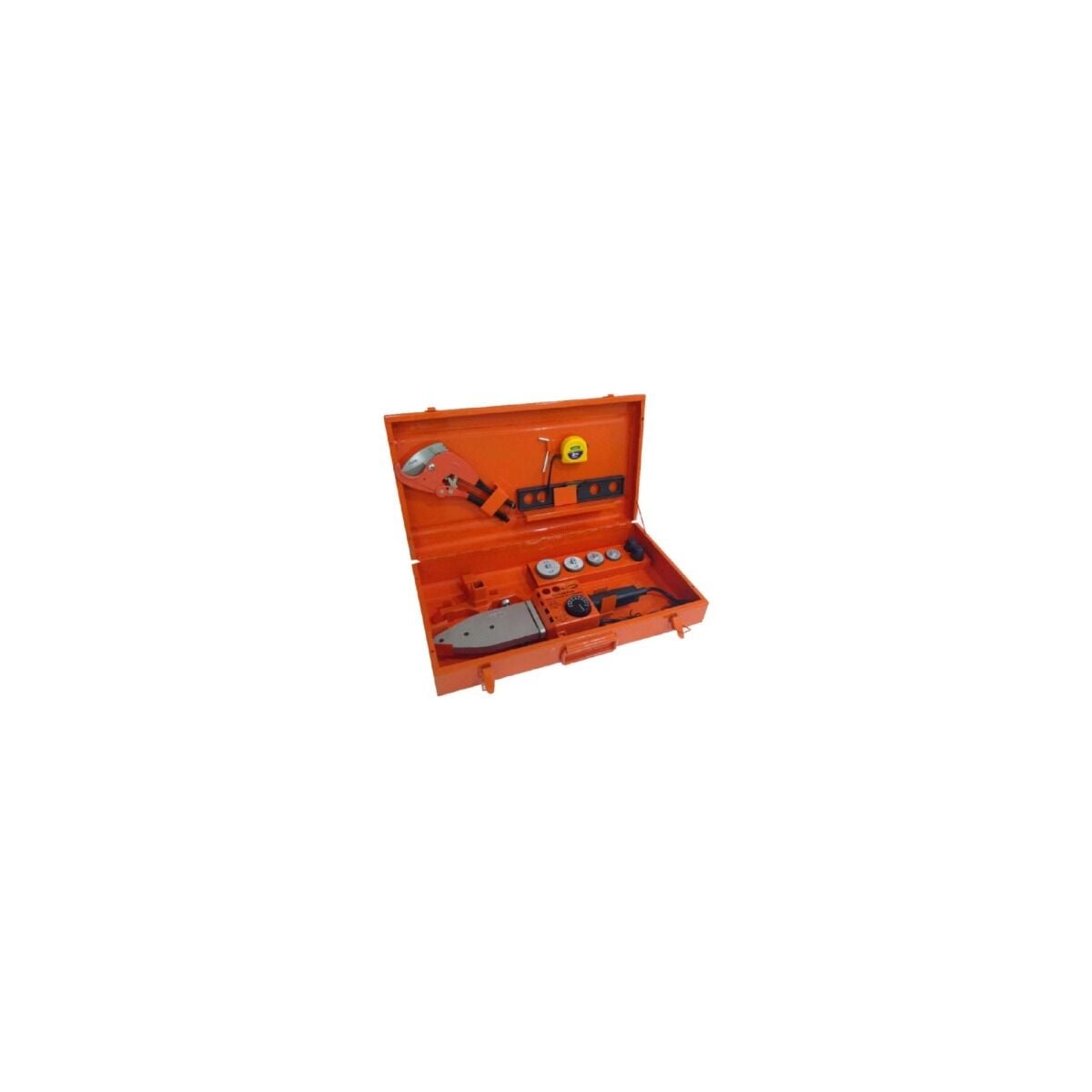

GF+ Aquasystem PP-R Welding Kit — A kit in a carrying case consisting of a heating machine, welding dies and auxiliary tools for socket fusion welding of Aquasystem PP-R pipes and fittings.
Applications
- In-apartment and building installation work
- Installers and service teams
- Welding from Ø20 to Ø75 mm (GF data)
Key features
- Complete kit: machine, dies and tools in a case
- Thermostatic temperature control
- Welding range per GF data d20–d75 mm
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | PP-R Welding Machine Set |
Product code
| Product | Product code |
|---|---|
| GF+ Aquasystem PP-R Welding Kit | 4301900044282 |
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Frequently asked questions
Are welding dies included?
The kit contents vary by product type; welding dies for missing diameters can be purchased separately as PP-R Welding Dies (Moulds).
What are the welding times?
The welding table below gives the heating, joining and cooling times per diameter for socket fusion welding.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90° · PP-R Tee
