GF+ Aquasystem PP-R Welding Dies (Moulds)

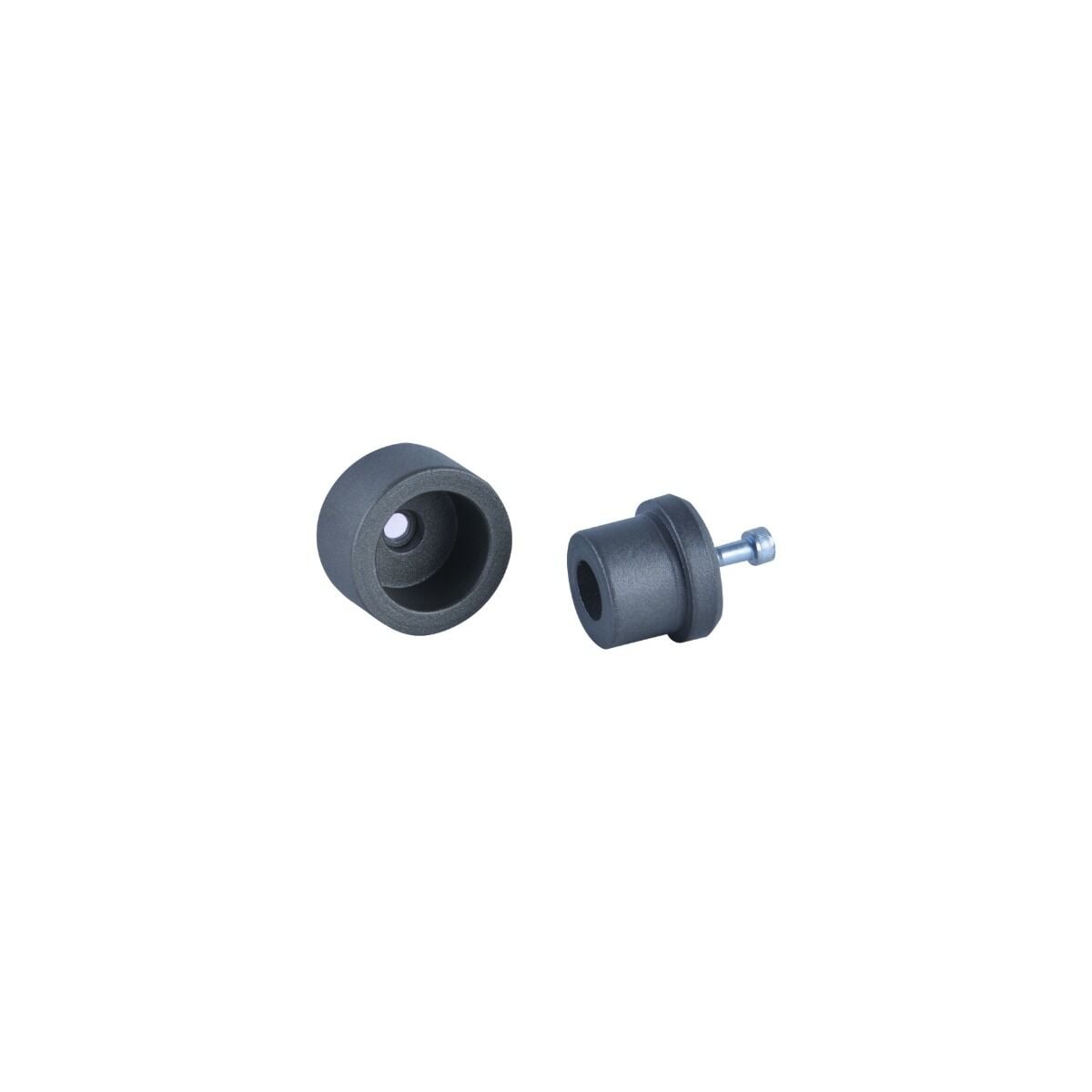

GF+ Aquasystem PP-R Welding Dies (Moulds) — Teflon-coated male–female heating moulds (dies) mounted on the PP-R welding machine. One side heats the outer surface of the pipe while the other heats the socket of the fitting at the same time.
Applications
- Adding a new diameter to the welding machine
- Replacing worn dies or dies with damaged coating
- Ø20 – Ø110 mm diameters
Key features
- Teflon coating: melt does not stick, easy to clean
- Male–female die pair
- Standard machine mounting
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | PP-R Welding Moulds |
Dimensions
| Size | Product code | d |
|---|---|---|
| 20 mm | 4301902045082 | 20 |
| 25 mm | 4301902545182 | 25 |
| 32 mm | 4301903245282 | 32 |
| 40 mm | 4301904045382 | 40 |
| 50 mm | 4301905045482 | 50 |
| 63 mm | 4301906345582 | 63 |
| 75 mm | 4301907545682 | 75 |
| 90 mm | 4301909045782 | 90 |
| 110 mm | 4301911045882 | 110 |
d: pipe outside diameter (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
| Ø125 | 40 | 60 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Frequently asked questions
When should a die be replaced?
It should be replaced when the Teflon coating is scratched or melt starts to stick; otherwise weld quality drops.
How are the dies cleaned?
While the machine is hot, with a wooden spatula or a cotton cloth; do not scrape with metal tools.
