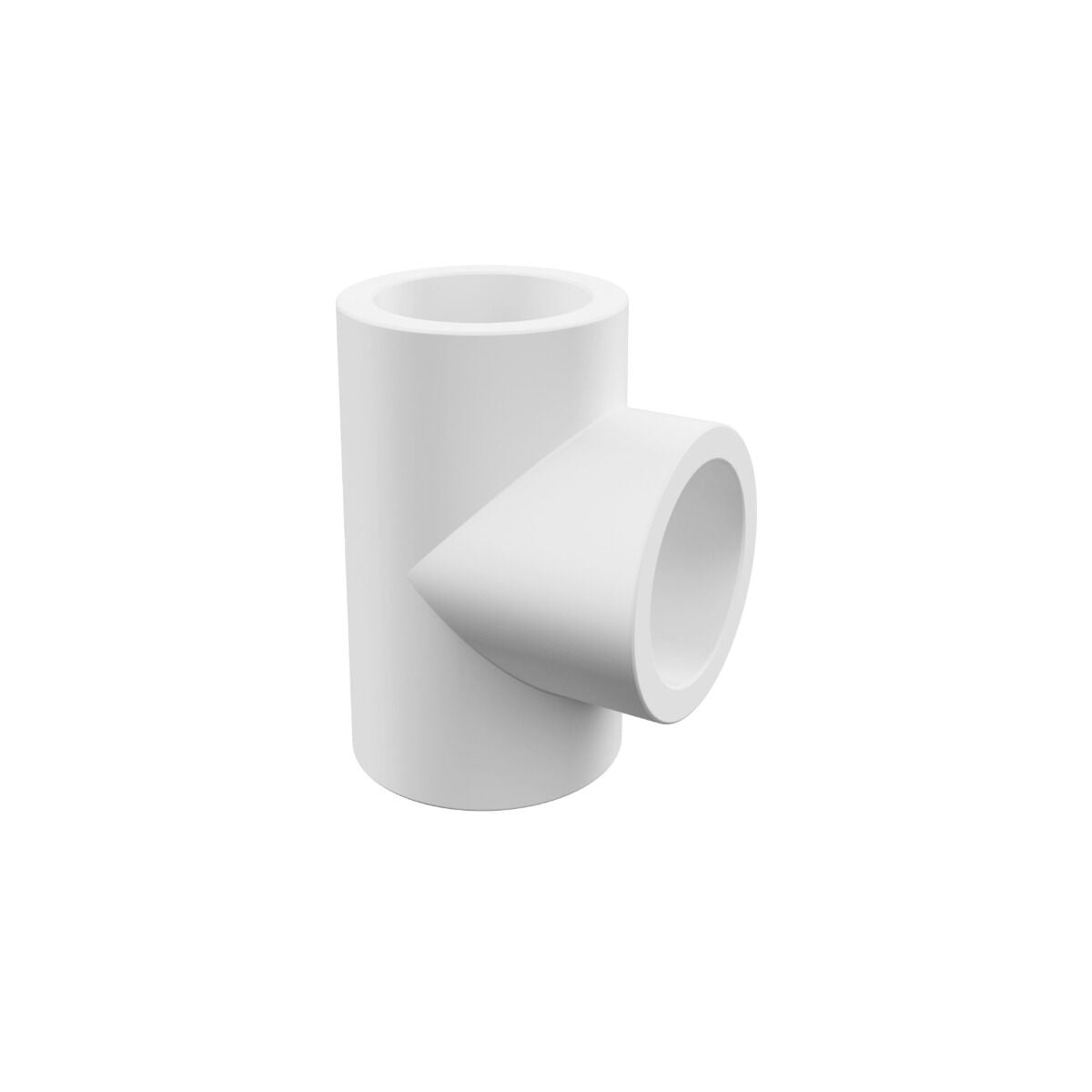

GF+ Aquasystem PP-R Tee
GF+ Aquasystem PP-R Tee — An equal tee that takes a 90° branch of the same diameter off the line. All three ends are for socket fusion welding; it is used at distribution points to split a line in two or to join two lines.
Applications
- Bathroom and kitchen branches in in-apartment distribution
- Floor outlets from risers
- Flow and return splits in heating lines
Key features
- Three equal ends, Ø20 – Ø160 mm
- PN25 pressure rating
- Gasket-free, leak-tight joint by socket fusion welding
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Tee PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN20 / PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | PN | D | L1 | LB |
|---|---|---|---|---|---|---|
| 20 mm | 4300902008021 | 20 | 25 | 27.8 | 14.8 | 51.5 |
| 25 mm | 4300902508121 | 25 | 25 | 32.5 | 16.0 | 59.0 |
| 32 mm | 4300903208221 | 32 | 25 | 41.5 | 18.0 | 70.0 |
| 40 mm | 4300904008321 | 40 | 25 | 54.0 | 21.0 | 87.0 |
| 50 mm | 4300905008421 | 50 | 25 | 66.2 | 25.5 | 102.5 |
| 63 mm | 4300906308521 | 63 | 25 | 83.0 | 27.5 | 128.0 |
| 75 mm | 4300907508621 | 75 | 25 | 98.0 | 30.5 | 140.0 |
| 90 mm | 4300909008721 | 90 | 25 | 117.5 | 35.5 | 163.8 |
| 110 mm | 4300911008821 | 110 | 25 | 143.5 | 38.0 | 194.0 |
| 160 mm | 4300916009021 | 160 | 20 | 208.0 | 48.0 | 260.0 |

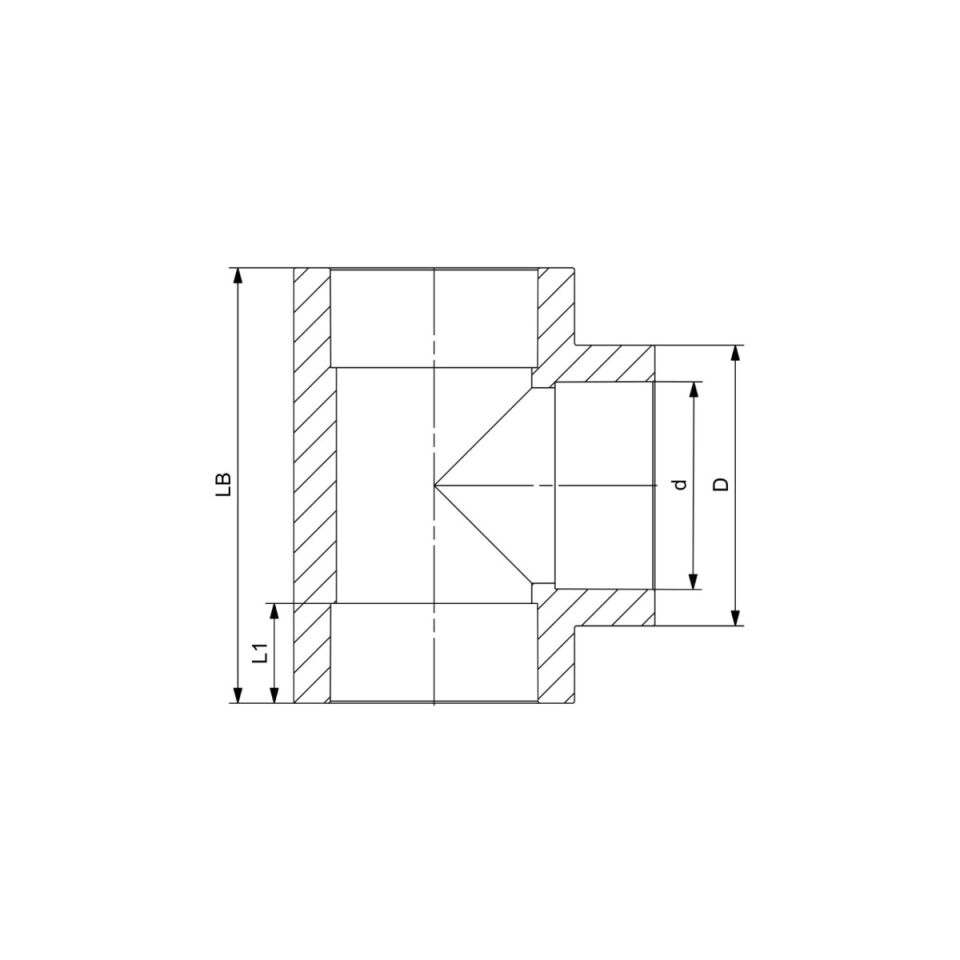

d: pipe outside diameter (mm) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
What is used if the branch has a different diameter?
For outlets of different diameters, a PP-R Reducing Tee is used.
Which jointing method is used for Ø160 mm?
For Ø160 mm, GF offers two options: butt welded (SDR11) and socket welded. This product is socket welded and can be welded to pipes of all SDR series.
