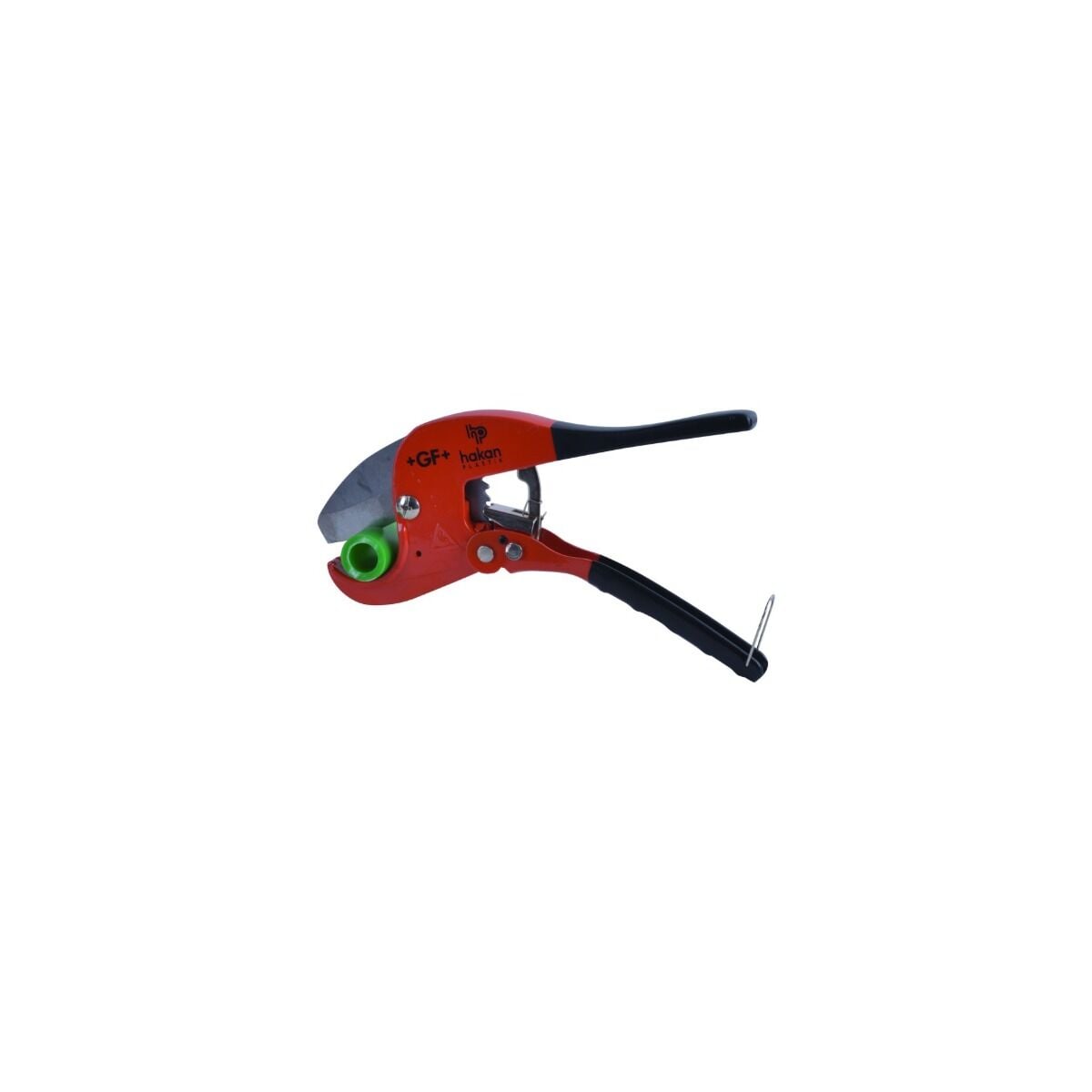

GF+ Aquasystem PP-R Pipe Cutter
GF+ Aquasystem PP-R Pipe Cutter — A ratchet pipe cutter for square, burr-free cutting of PP-R pipe. A square cut is a prerequisite for the pipe to seat fully and axially in the socket during welding.
Applications
- Cutting pipes up to Ø42 mm (GF data)
- In-apartment installation work
- Service and repair work
Key features
- Ratchet mechanism: cuts with little force
- Square, burr-free cut
- One-handed operation
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | PP-R Pipe Clipper |
Product code
| Product | Product code |
|---|---|
| GF+ Aquasystem PP-R Pipe Cutter | 4301900043082 |
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Frequently asked questions
Does it also cut Faser pipe?
Yes; Aquasystem standard and Faser pipes up to Ø42 mm can be cut.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Elbow 90° · PP-R Tee
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
