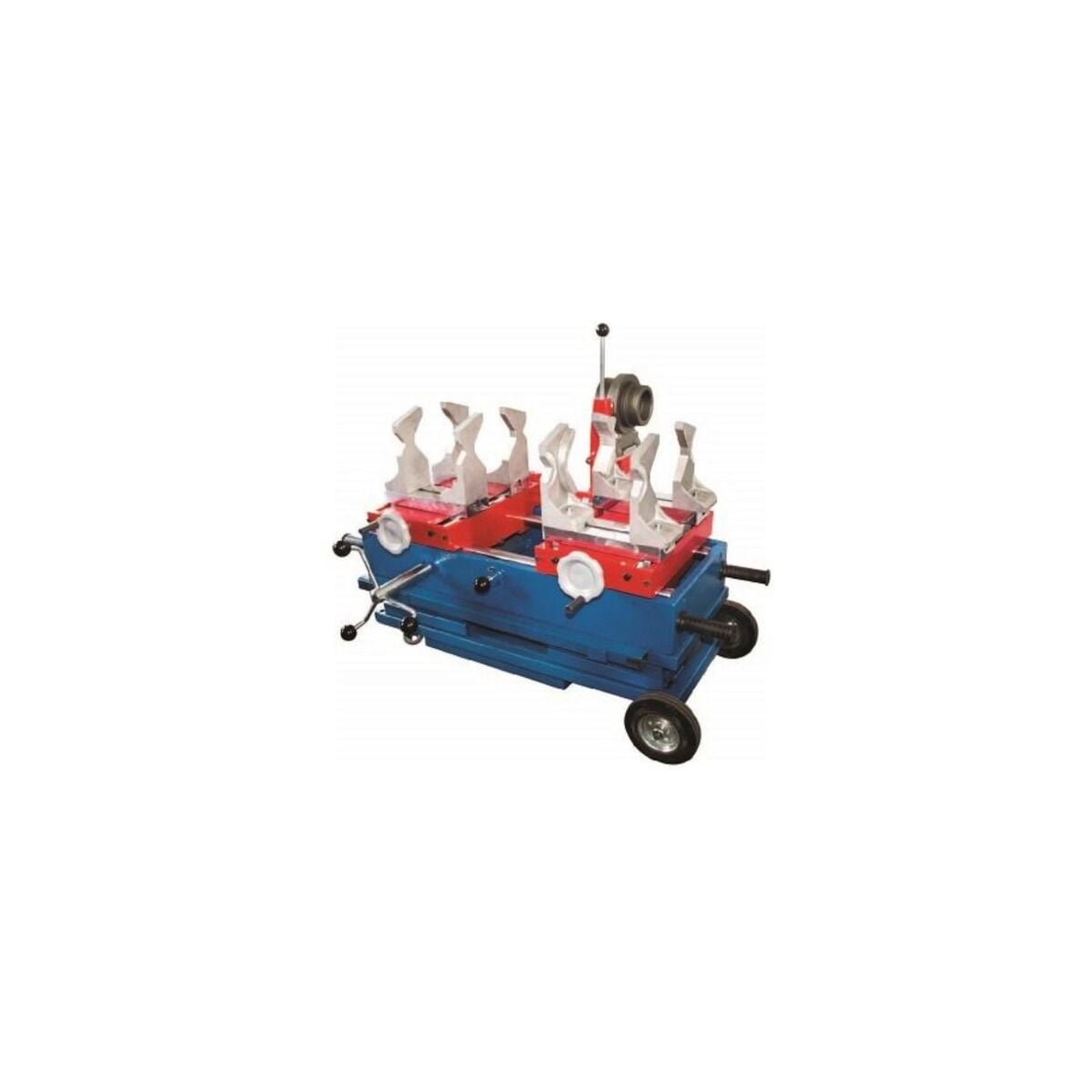

GF+ Aquasystem PP-R Welding Machine Bench Type Ø160 mm
GF+ Aquasystem PP-R Welding Machine Bench Type Ø160 mm — A bench (trolley) type welding machine for aligned and controlled welding of large-diameter PP-R pipes and fittings. Because the pipe and fitting are pressed together axially on slides, it gives a much more uniform joint at large diameters than hand welding.
Applications
- Ø50 – Ø160 mm riser and main line welding (GF data)
- Workshop prefabrication
- Boiler room and mechanical installations
Key features
- Mechanical slide: axial, aligned welding
- Wheeled transport trolley
- Welding range per GF data d50–d160 mm
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | PP-R Welding Machine Bench Type |
Product code
| Product | Product code |
|---|---|
| GF+ Aquasystem PP-R Welding Machine Bench Type Ø160 mm | 4301900045982 |
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
| Ø125 | 40 | 60 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Frequently asked questions
Are welding dies included?
The kit contents vary by product type; welding dies for missing diameters can be purchased separately as PP-R Welding Dies (Moulds).
What are the welding times?
The welding table below gives the heating, joining and cooling times per diameter for socket fusion welding.
