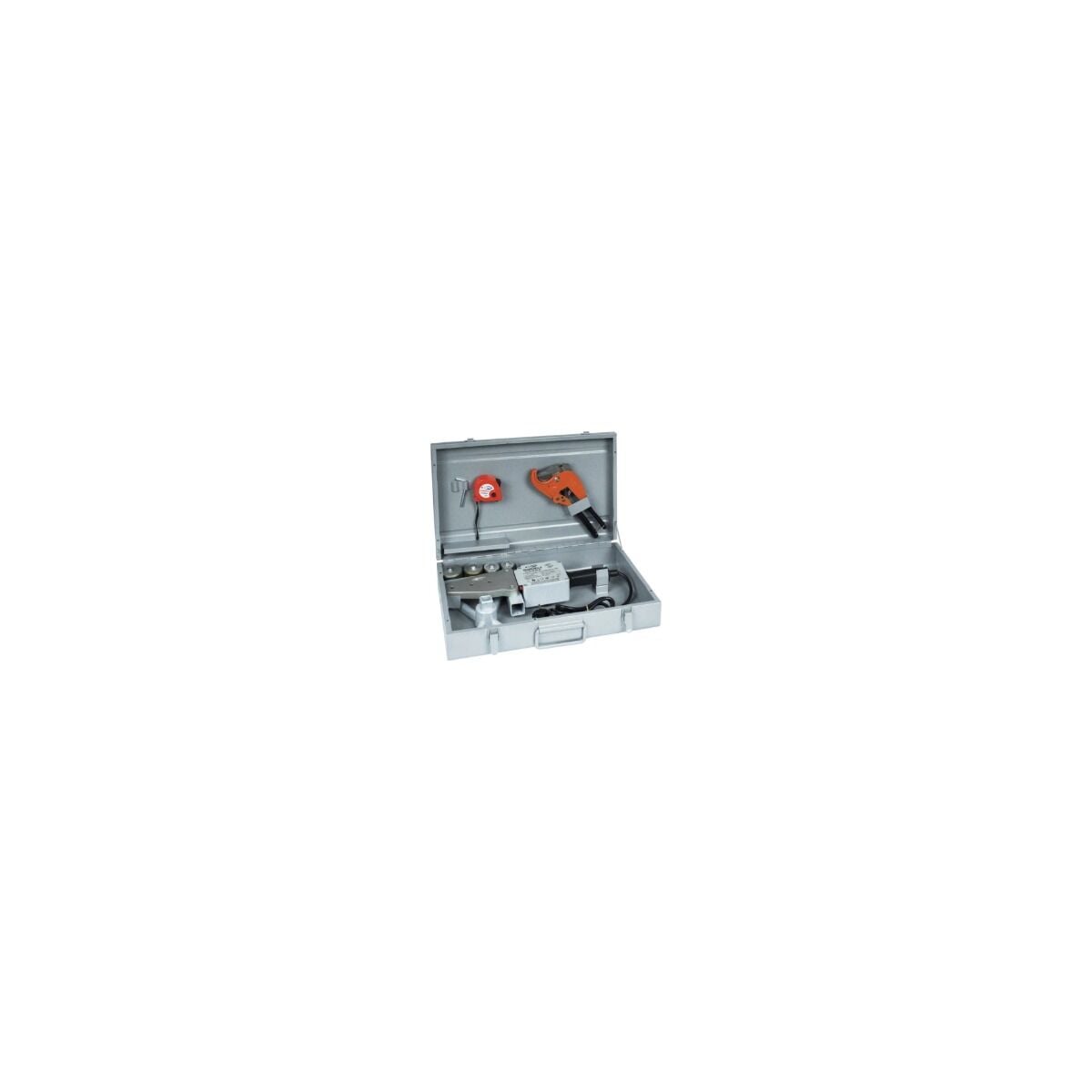

GF+ Aquasystem PP-R Welding Kit – Economy
GF+ Aquasystem PP-R Welding Kit – Economy — An economy PP-R socket fusion welding kit for small and medium-scale installation jobs; the heating machine, dies and tools come in a case.
Applications
- In-apartment installation and renovation
- Service and repair work
- Welding from Ø20 to Ø63 mm (GF data)
Key features
- Economy complete kit
- Thermostatic temperature control
- Welding range per GF data d20–d63 mm
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | PP-R Welding Machine Set |
Product code
| Product | Product code |
|---|---|
| GF+ Aquasystem PP-R Welding Kit – Economy | 4301900044082 |
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Frequently asked questions
Are welding dies included?
The kit contents vary by product type; welding dies for missing diameters can be purchased separately as PP-R Welding Dies (Moulds).
What are the welding times?
The welding table below gives the heating, joining and cooling times per diameter for socket fusion welding.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
