GF+ Aquasystem PP-R UV-Resistant Pipe SDR6 (PN20)

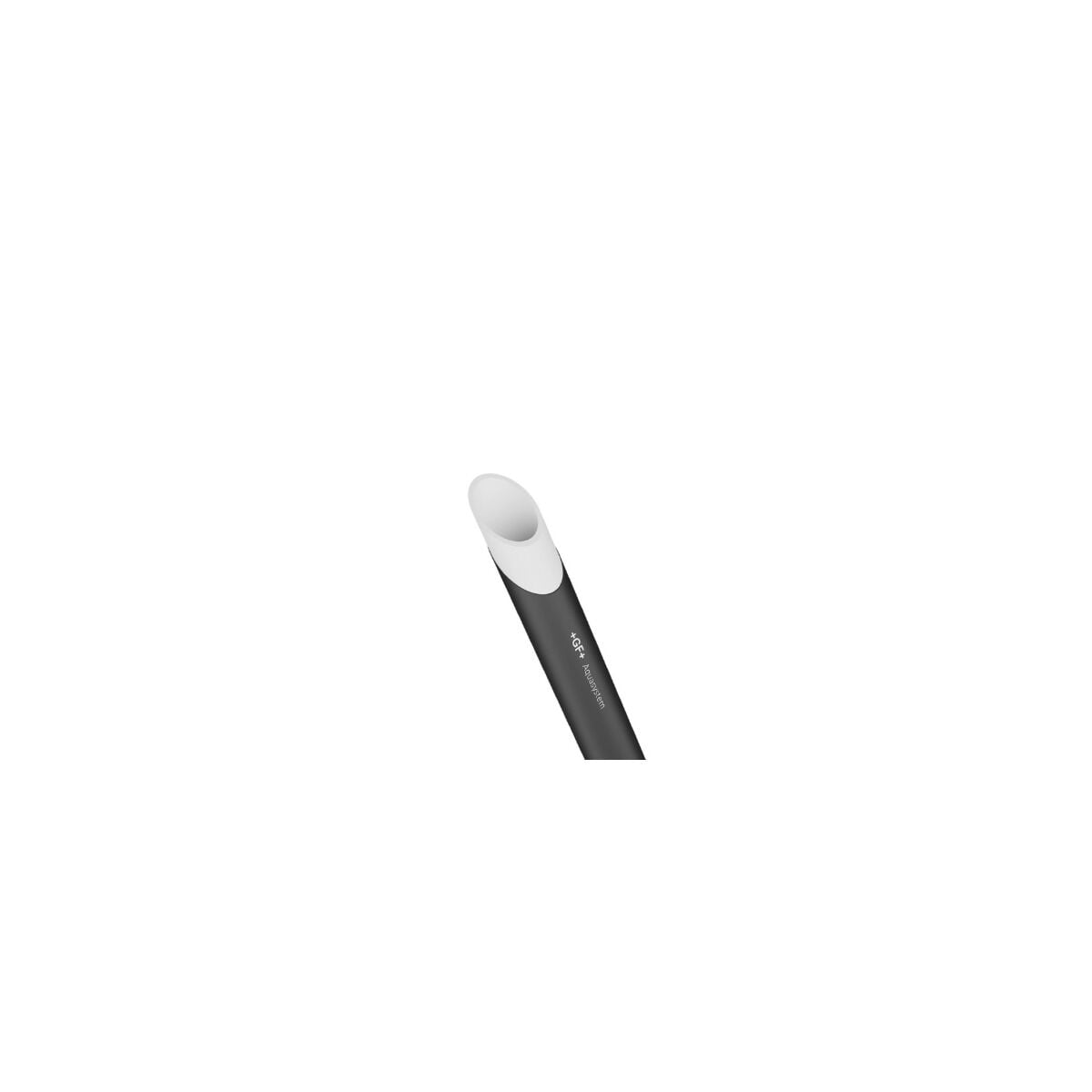

GF+ Aquasystem PP-R UV-Resistant Pipe SDR6 (PN20) — A PP-R pipe with a black protective coating whose outer layer is resistant to sunlight (UV). Standard PP-R pipe becomes brittle over time in sunlight; the UV-resistant pipe was developed for outdoor installations.
Applications
- Roof and terrace installations, solar energy systems
- Garden, irrigation and open-area lines
- Facades and open shafts
Key features
- UV-resistant outer layer
- Inner layer standard Aquasystem PP-R: welded with the same fittings
- SDR6, PN20 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM UV Resistant Pipe PP-R PN20 SDR6 |
| Raw material | PP-R (polypropylene random copolymer, type 3) |
| Construction | UV-resistant outer layer + PP-R inner layer |
| Pressure rating (GF data) | PN20 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | Black (UV-protective outer layer) |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
| Length / sales unit | 4 m lengths; sold by the meter in multiples of 4 m |
Dimensions
| Size | Product code | d | DN | e | SDR | PN | LB | Inside diameter |
|---|---|---|---|---|---|---|---|---|
| 20 mm | 4000002010021 | 20 | 20 | 3.4 | 6 | 20 | 4000 | 13.2 |
| 25 mm | 4000002510021 | 25 | 25 | 4.2 | 6 | 20 | 4000 | 16.6 |
| 32 mm | 4000003210021 | 32 | 32 | 5.4 | 6 | 20 | 4000 | 21.2 |
| 50 mm | 4000005010021 | 50 | 50 | 8.3 | 6 | 20 | 4000 | 33.4 |
| 63 mm | 4000006310021 | 63 | 63 | 10.5 | 6 | 20 | 4000 | 42.0 |
d: pipe outside diameter (mm) · DN: nominal size · e: wall thickness (mm) · SDR: standard dimension ratio (d/e) · PN: nominal pressure (bar, 20 °C) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
Is there any difference in welding?
Welding is done with standard Aquasystem fittings and welding times.
How is the pipe sold?
Pipes are produced in 4 m lengths; they are sold by the meter in multiples of 4 m.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
