GF+ Aquasystem PP-R Street Elbow 90°

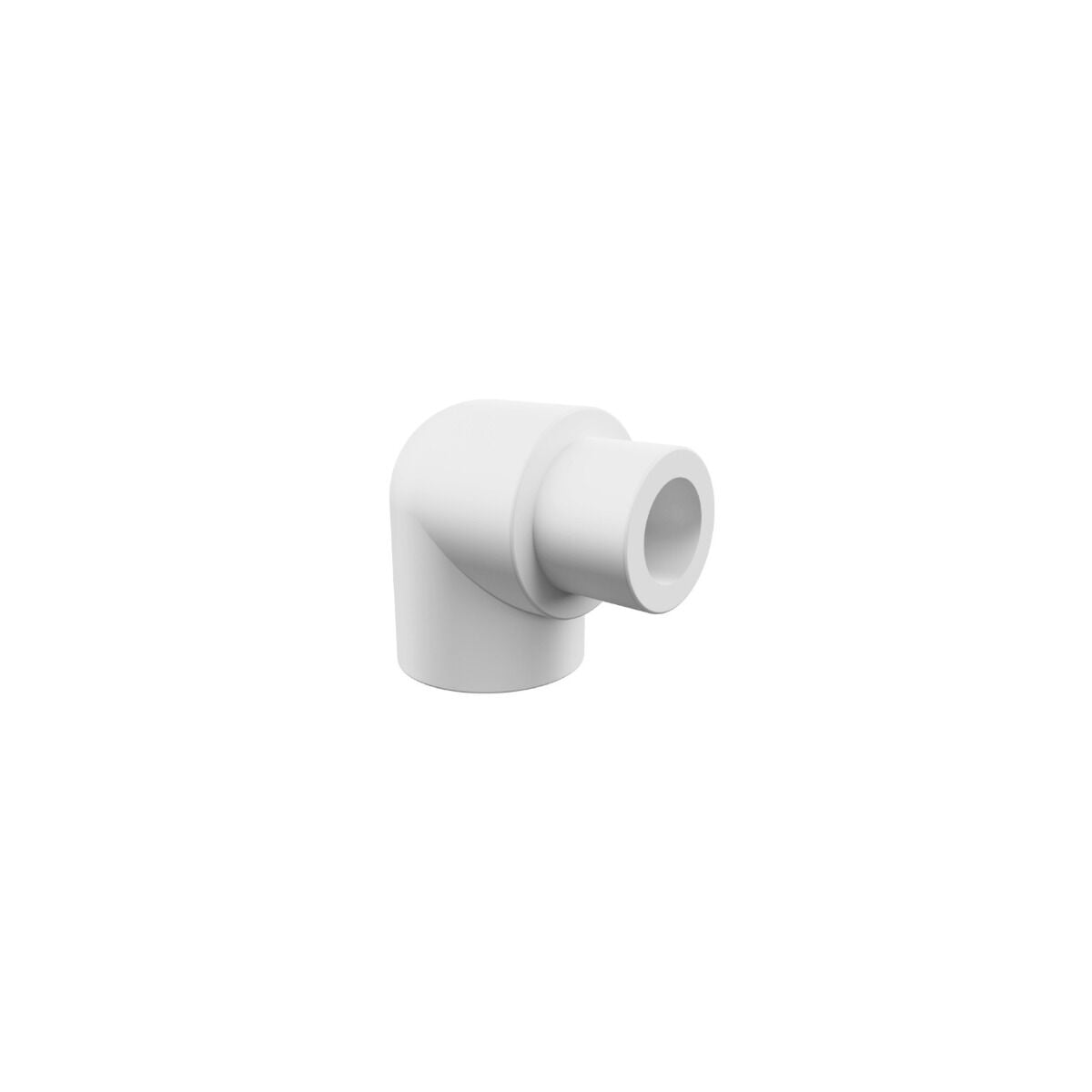

GF+ Aquasystem PP-R Street Elbow 90° — A 90° elbow with a socket (female) on one end and a spigot (male) of pipe diameter on the other. The spigot end is welded directly into the socket of another fitting, so no short pipe piece is needed in between.
Applications
- Turns connected directly to a tee, socket or valve
- Short, compact turns at faucet and fixture connections
- Reducing pipe cutting in tight recesses
Key features
- Male–female design: welds directly into a fitting
- Fewer welding points since no intermediate pipe is needed
- PN25 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Elbow 90° Male-Female PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | d1 | PN | D | L1 | L2 | LB |
|---|---|---|---|---|---|---|---|---|
| 20 mm | 4300102005021 | 20 | 20 | 25 | 29 | 16.0 | 16.0 | 41.5 |
| 25 mm | 4300102505121 | 25 | 25 | 25 | 35 | 17.0 | 17.0 | 47.5 |

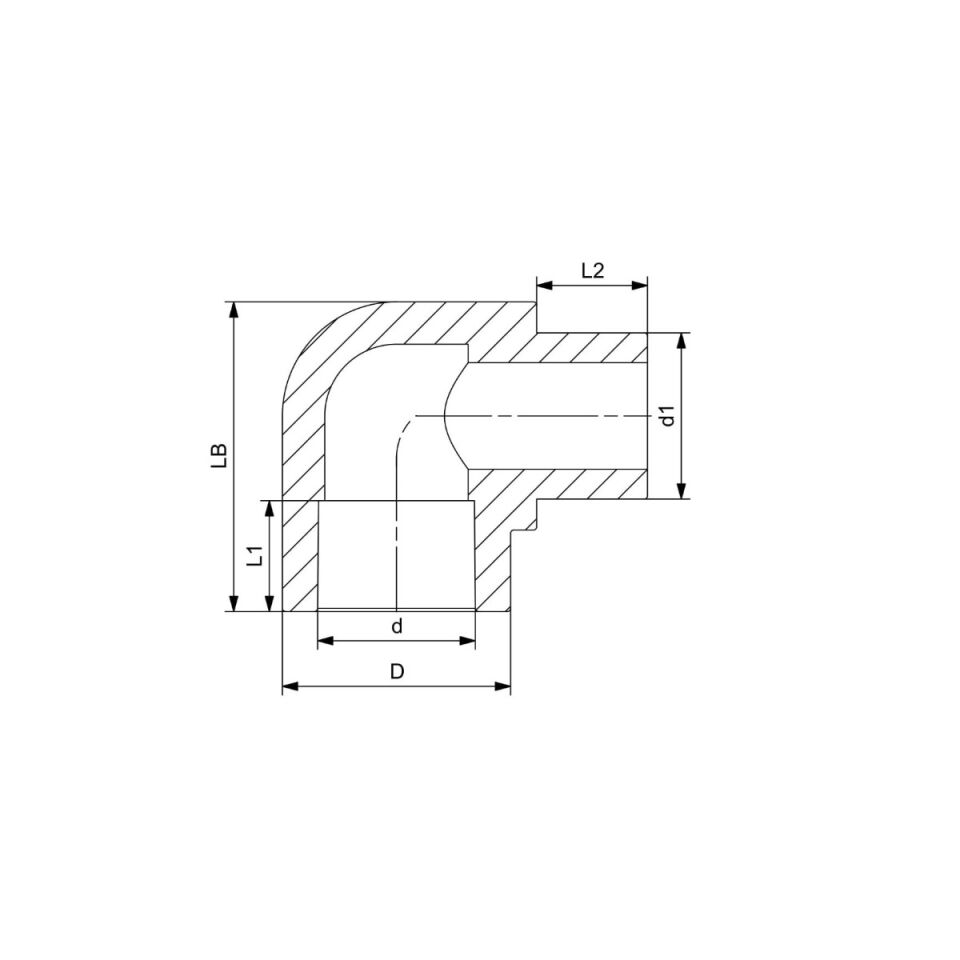

d: pipe outside diameter (mm) · d1: second outlet pipe diameter (mm) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · L2: second socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
Can the spigot end be welded to a pipe?
No. The spigot (male) end goes into the socket of a fitting; the side that connects to the pipe is the socket end.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
