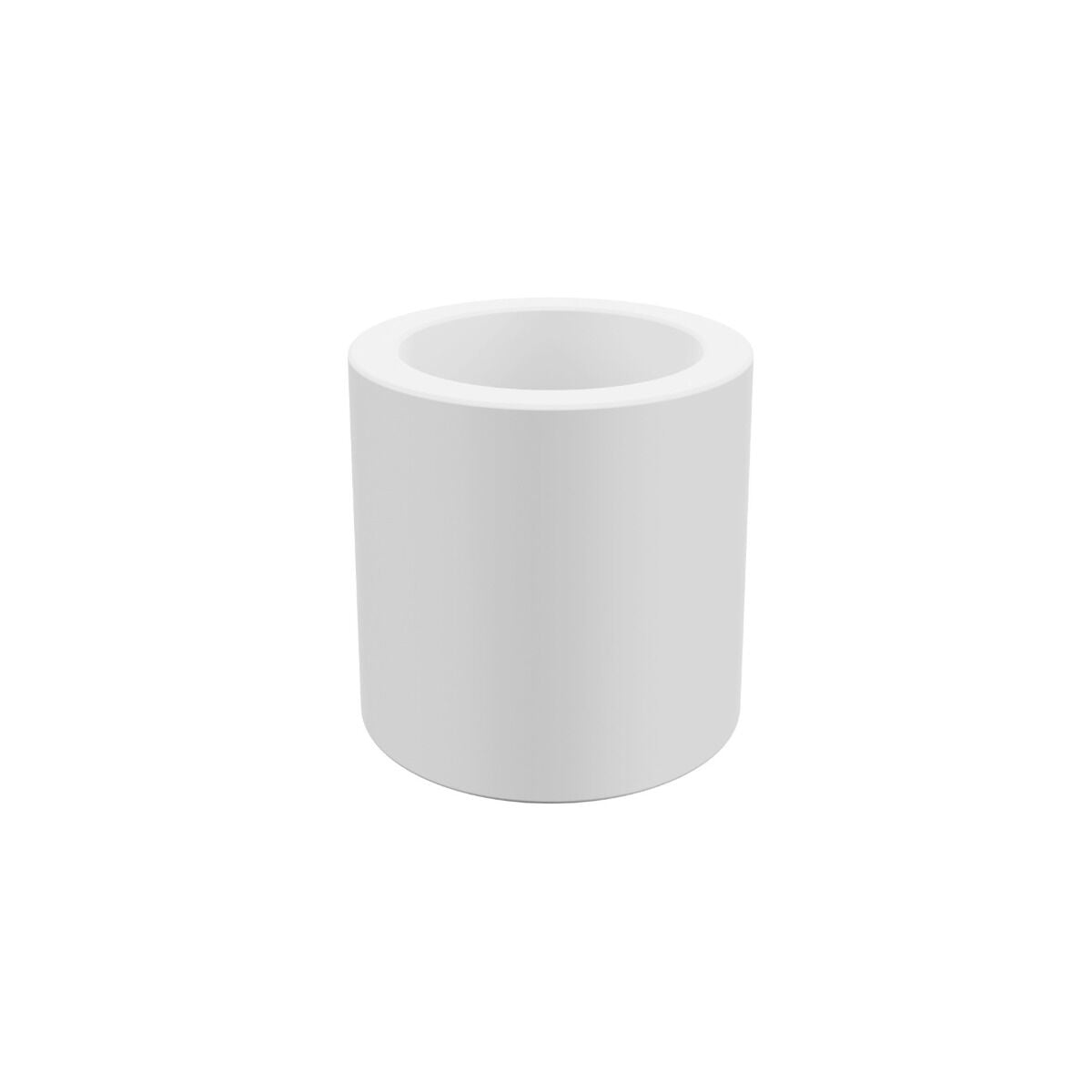

GF+ Aquasystem PP-R Socket (Coupler)
GF+ Aquasystem PP-R Socket (Coupler) — A fitting that joins two pipes of the same diameter end to end in a straight line. It is used to extend pipe length and to cut out a damaged pipe section and insert a new one.
Applications
- Extending pipe lengths (Aquasystem pipes come in 4 m lengths)
- Replacing the damaged section during repairs
- Risers and main distribution lines
Key features
- Both ends for socket fusion welding
- Ø20 – Ø160 mm, PN25 pressure rating
- Short body, minimal space on the line
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Socket PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN20 / PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | PN | D | L1 | LB |
|---|---|---|---|---|---|---|
| 20 mm | 4300502020021 | 20 | 25 | 27.5 | 14.5 | 33.0 |
| 25 mm | 4300502520121 | 25 | 25 | 33.0 | 16.0 | 37.0 |
| 32 mm | 4300503220221 | 32 | 25 | 41.0 | 18.0 | 40.0 |
| 40 mm | 4300504020321 | 40 | 25 | 52.0 | 21.0 | 45.0 |
| 50 mm | 4300505020421 | 50 | 25 | 66.3 | 23.5 | 51.0 |
| 63 mm | 4300506320521 | 63 | 25 | 83.5 | 28.0 | 57.5 |
| 75 mm | 4300507520621 | 75 | 25 | 98.0 | 30.5 | 66.0 |
| 90 mm | 4300509020721 | 90 | 25 | 118.0 | 34.5 | 75.0 |
| 110 mm | 4300511020821 | 110 | 25 | 143.5 | 39.5 | 83.5 |
| 160 mm | 4300516000121 | 160 | 20 | 208.0 | 48.0 | 103.0 |

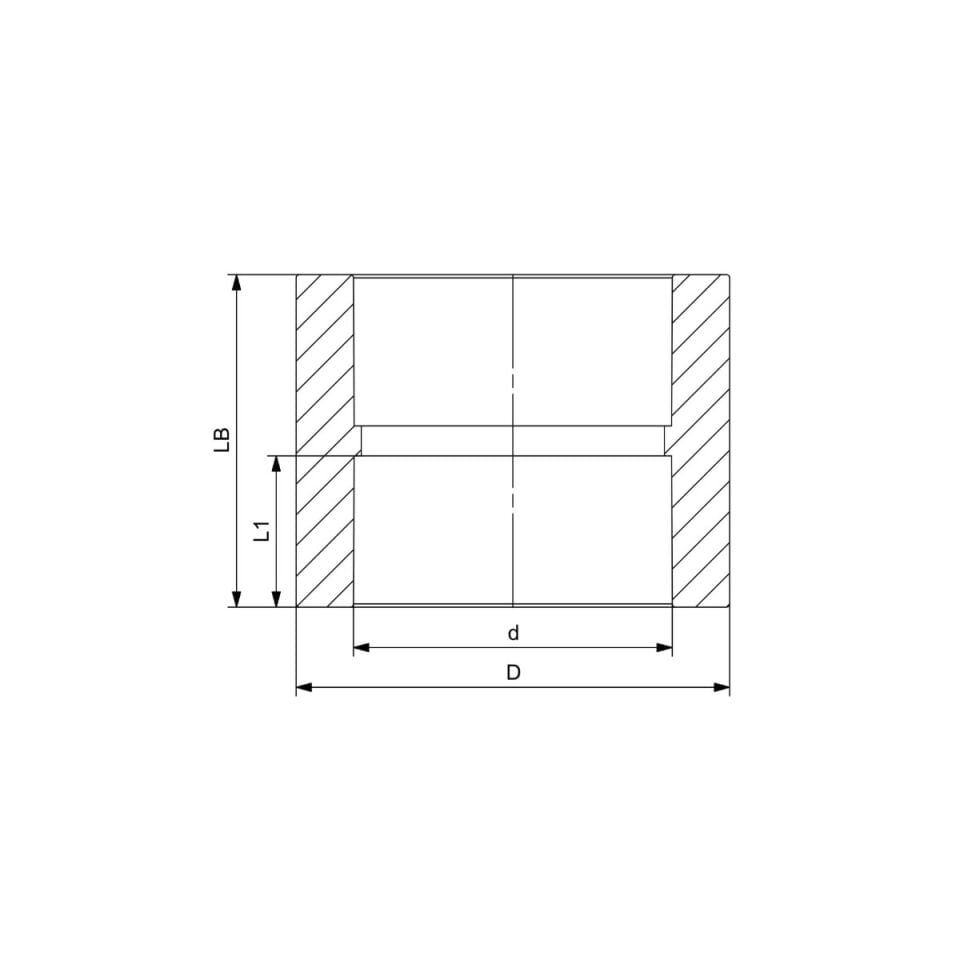

d: pipe outside diameter (mm) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
How are different diameters joined on the same line?
For different diameters, a PP-R Reducer is used instead of a socket.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
