GF+ Aquasystem PP-R Six-Port Faucet Connection 20 mm - 1/2″

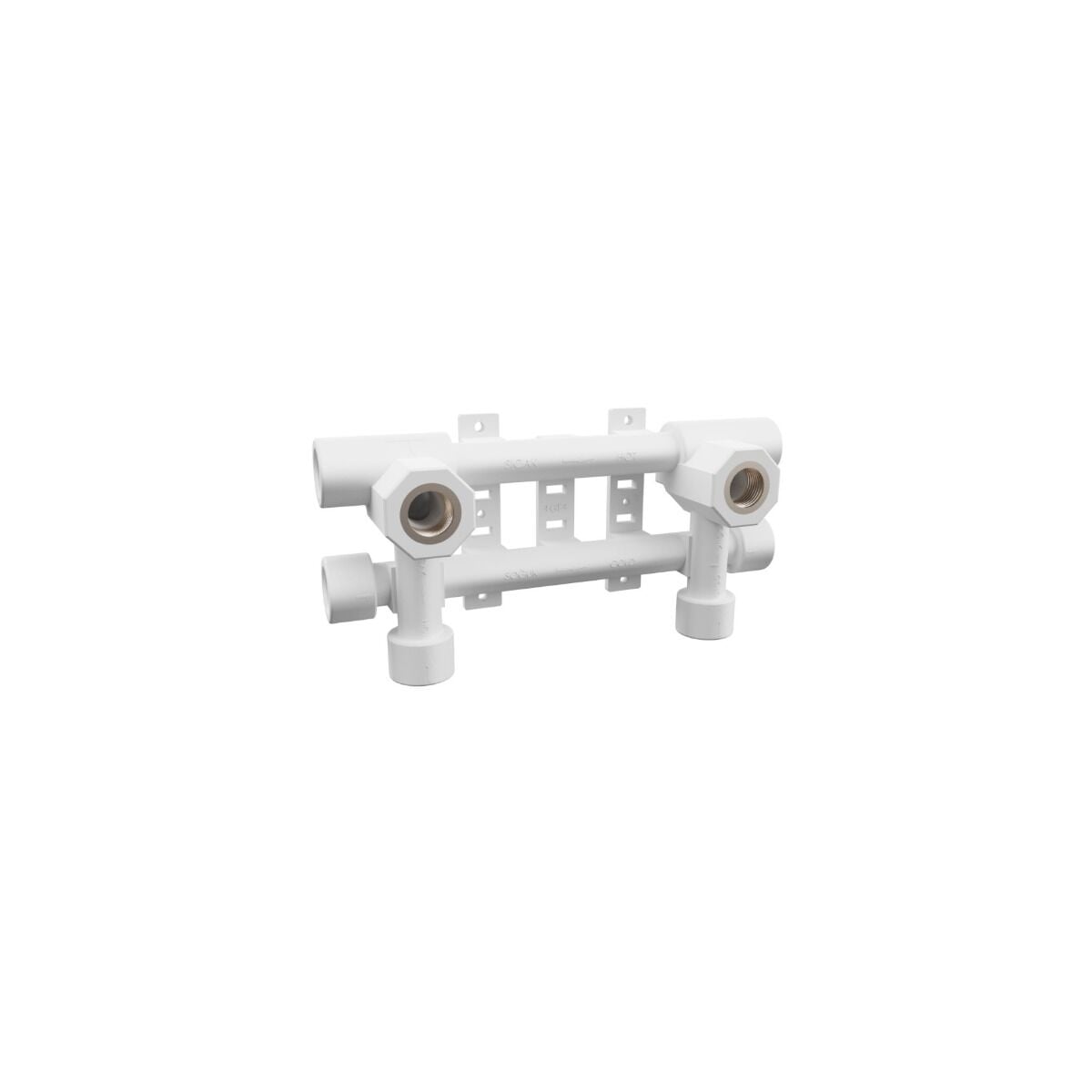

GF+ Aquasystem PP-R Six-Port Faucet Connection 20 mm - 1/2″ — A distribution fitting (6 ports) that combines two female-threaded faucet outlets for hot and cold water and four welding sockets on a single mounting bar. The lines can pass through the fitting and continue to the next fixture.
Applications
- Faucet connection in ring (series) distribution
- Shower, washbasin and sink faucets
- Prefabricated and modular bathroom and kitchen installations
Key features
- Six ports: two threaded outlets + four welding sockets
- Fixed and aligned outlets with the mounting bar
- Nickel-plated brass female thread (BSPP-G), PN25
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Distribution Manifold 6 Ported BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | G | PN | D | L1 | LB |
|---|---|---|---|---|---|---|---|
| 20 mm - 1/2″ | 4300902002321 | 20 | 1∕2 | 25 | 30.8 | 14.5 | 235.7 |

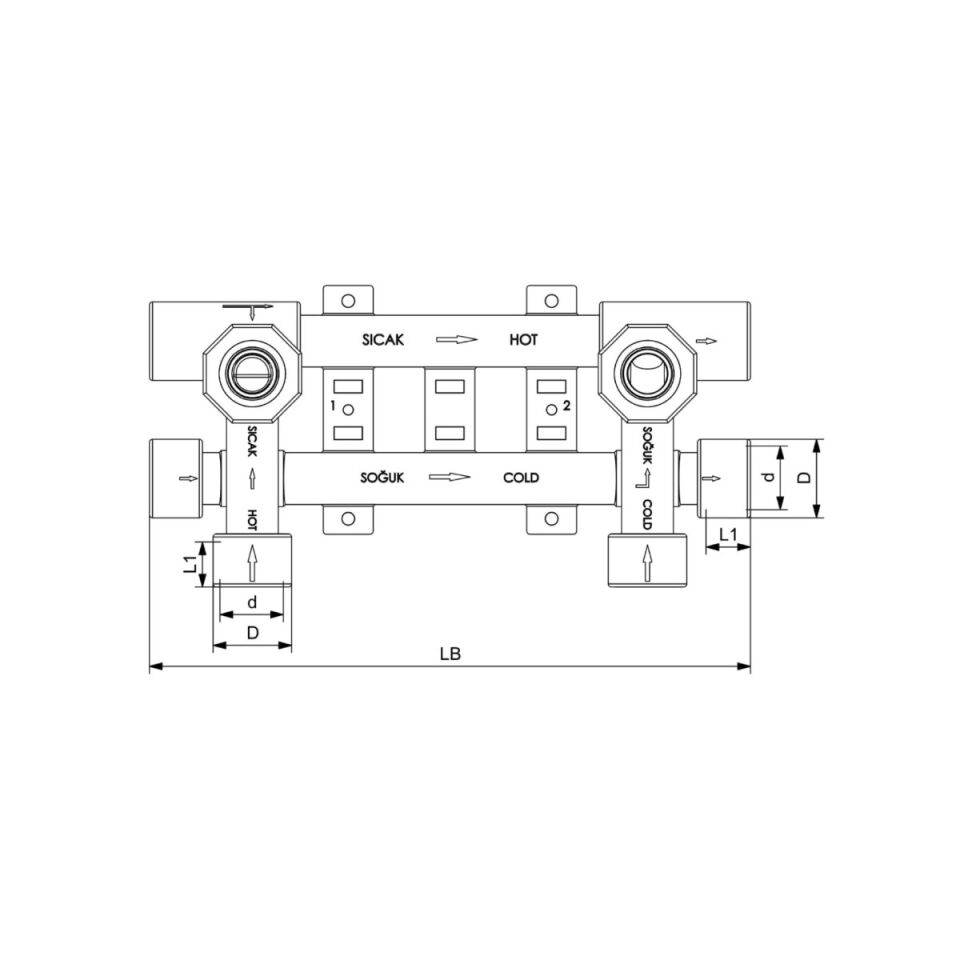

d: pipe outside diameter (mm) · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
Which pipe does it connect to?
The welding sockets are for Ø20 mm Aquasystem pipe; the outlets are ½″ female thread.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
