GF+ Aquasystem PP-R Reducing Tee

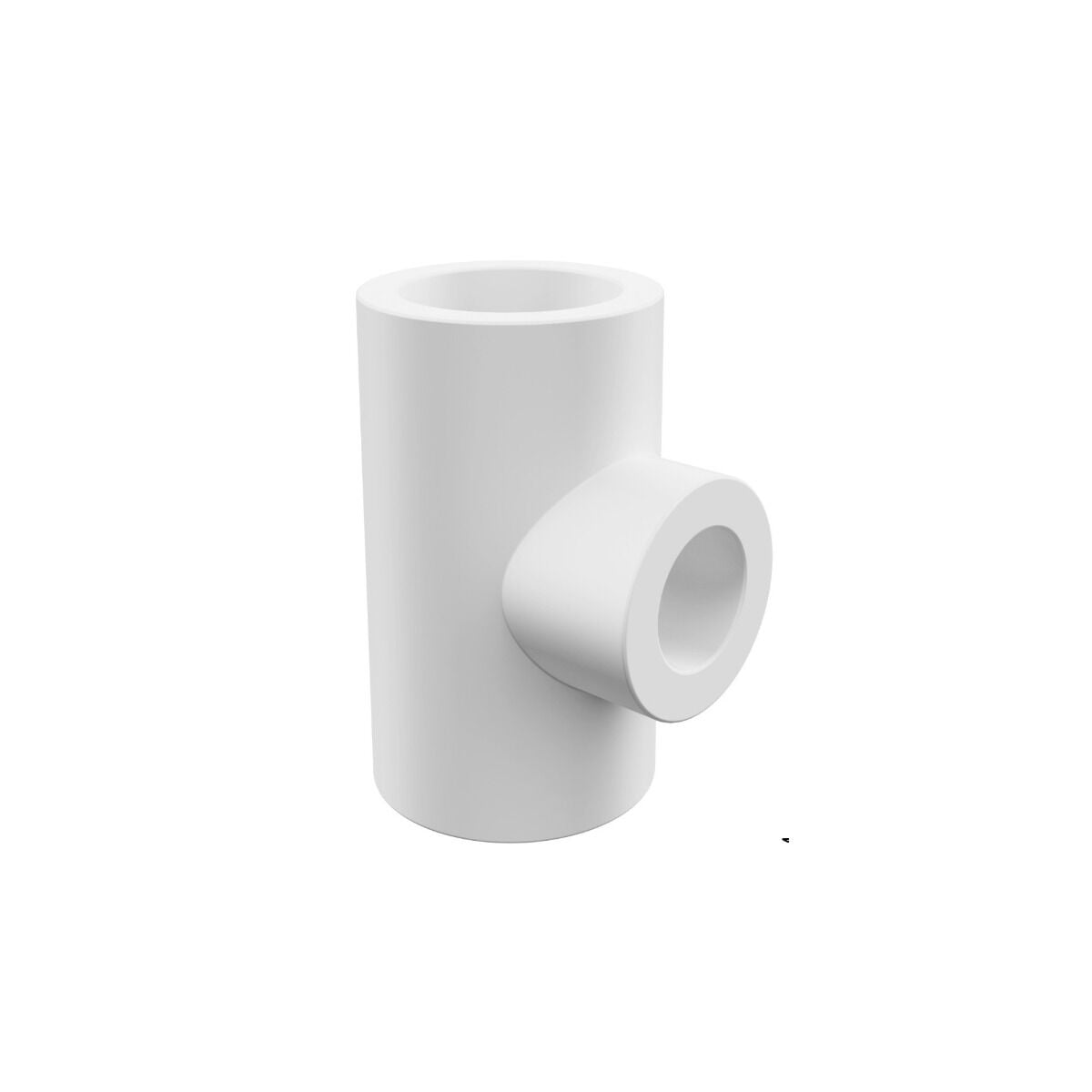

GF+ Aquasystem PP-R Reducing Tee — A reducing tee used to take branches of smaller or different diameters off the main line. Because it combines a tee and a reducer in one piece, it reduces the number of welds and the installed length.
Applications
- Taking a smaller floor branch off a riser
- Reduced outlets on manifolds and distribution lines
- Taking a branch while the main line reduces at one end (types with three different ends)
Key features
- 30 sizes from 25-20-20 up to 110-75-110 mm
- Two types: main line continuing at the same diameter (A-B-A) and all three ends different (Type 2)
- PN25 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Reducing Tee Type 2 PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | d1 | d2 | PN | L1 | L2 | L3 | LB |
|---|---|---|---|---|---|---|---|---|---|
| 25-20-20 | 4300902520021 | 25 | 20 | 20 | 25 | 16.0 | 14.5 | 14.5 | 57.0 |
| 25-20-25 | 4300902520121 | 25 | 20 | 25 | 16.0 | 14.5 | 59.0 | ||
| 32-20-20 | 4300903220221 | 32 | 20 | 20 | 25 | 18.1 | 14.5 | 14.5 | 69.0 |
| 32-20-25 | 4300903220321 | 32 | 20 | 25 | 25 | 18.1 | 14.5 | 16.0 | 70.5 |
| 32-20-32 | 4300903220421 | 32 | 20 | 25 | 19.2 | 17.2 | 74.0 | ||
| 32-25-20 | 4300903220521 | 32 | 25 | 20 | 25 | 18.1 | 16.0 | 14.5 | 69.0 |
| 32-25-32 | 4300903220621 | 32 | 25 | 25 | 19.2 | 17.5 | 74.0 | ||
| 40-20-40 | 4300904020721 | 40 | 20 | 25 | 21.9 | 17.4 | 88.0 | ||
| 40-25-40 | 4300904020821 | 40 | 25 | 25 | 21.9 | 17.4 | 88.0 | ||
| 40-32-40 | 4300904020921 | 40 | 32 | 25 | 21.9 | 20.0 | 87.5 | ||
| 50-20-50 | 4300905021021 | 50 | 20 | 25 | 26.0 | 18.0 | 106.0 | ||
| 50-25-50 | 4300905021221 | 50 | 25 | 25 | 26.0 | 17.0 | 106.0 | ||
| 50-32-50 | 4300905021321 | 50 | 32 | 25 | 26.0 | 20.5 | 105.5 | ||
| 50-40-50 | 4300905021421 | 50 | 40 | 25 | 23.5 | 20.5 | 107.0 | ||
| 63-20-63 | 4300906321321 | 63 | 20 | 25 | 27.5 | 14.5 | 80.0 | ||
| 63-25-63 | 4300906321421 | 63 | 25 | 25 | 27.6 | 16.5 | 85.0 | ||
| 63-32-63 | 4300906321521 | 63 | 32 | 25 | 27.6 | 18.1 | 91.0 | ||
| 63-40-63 | 4300906321621 | 63 | 40 | 25 | 27.6 | 21.1 | 102.5 | ||
| 63-50-63 | 4300906321721 | 63 | 50 | 25 | 27.5 | 23.5 | 111.5 | ||
| 75-20-75 | 4300907521621 | 75 | 20 | 25 | 30.0 | 14.5 | 138.0 | ||
| 75-25-75 | 4300907521721 | 75 | 25 | 25 | 30.0 | 16.0 | 138.0 | ||
| 75-32-75 | 4300907521821 | 75 | 32 | 25 | 30.0 | 18.0 | 138.0 | ||
| 75-40-75 | 4300907521921 | 75 | 40 | 25 | 30.0 | 20.5 | 138.0 | ||
| 75-50-75 | 4300907522021 | 75 | 50 | 25 | 30.0 | 23.5 | 138.0 | ||
| 75-63-75 | 4300907522121 | 75 | 63 | 25 | 30.0 | 27.5 | 138.0 | ||
| 90-63-90 | 4300909021622 | 90 | 63 | 25 | 33.0 | 27.5 | 145.6 | ||
| 90-75-90 | 4300909021722 | 90 | 75 | 25 | 33.0 | 30.0 | 152.4 | ||
| 110-63-110 | 4300911021522 | 110 | 63 | 25 | 37.0 | 27.5 | 174.5 | ||
| 110-75-110 | 4300911021622 | 110 | 75 | 25 | 37.0 | 31.3 | 192.5 | ||
| 110-90-110 | 4300911021722 | 110 | 90 | 25 | 37.0 | 33.8 | 188.2 |

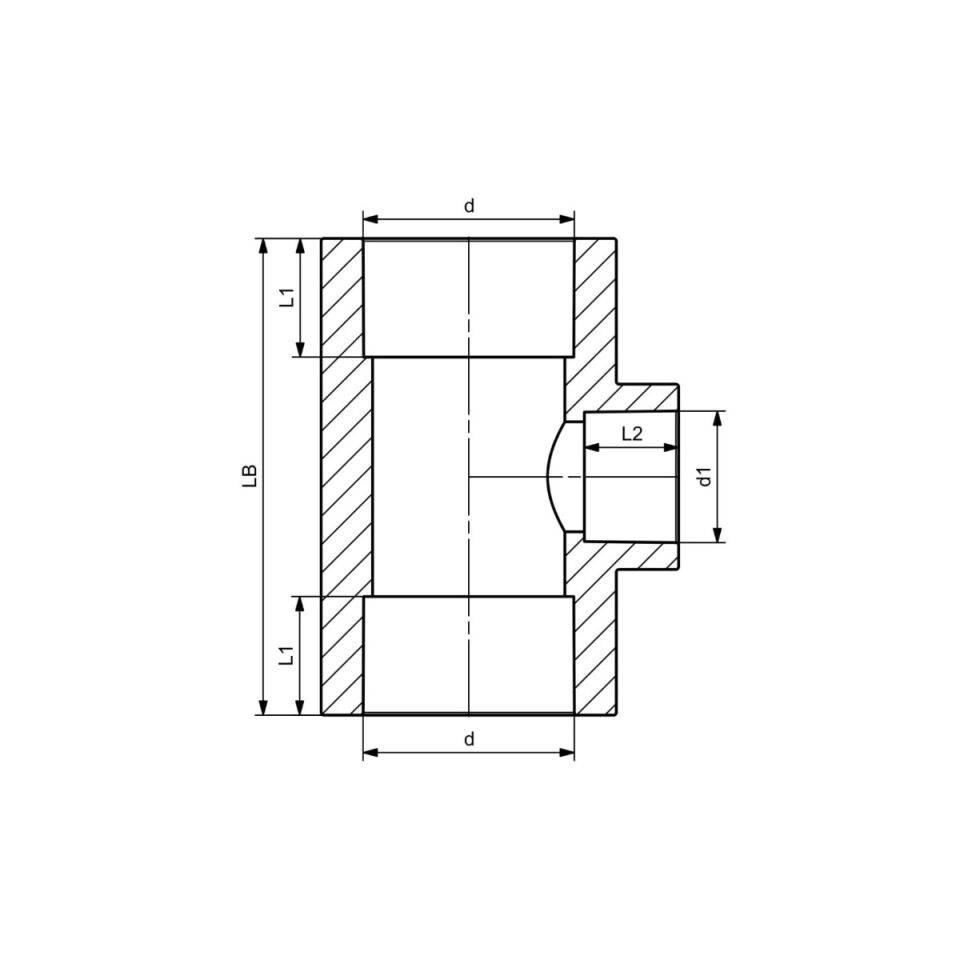

d: pipe outside diameter (mm) · d1: second outlet pipe diameter (mm) · d2: third outlet pipe diameter (mm) · PN: nominal pressure (bar, 20 °C) · L1: socket depth (mm) · L2: second socket depth (mm) · L3: third socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
How is the size read?
The order is main line inlet – branch – main line outlet. 32-20-32: main line Ø32, branch Ø20 mm. With three different sizes such as 32-20-25, the main line also narrows at the outlet.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
