GF+ Aquasystem PP-R Pipe Clip (Single)

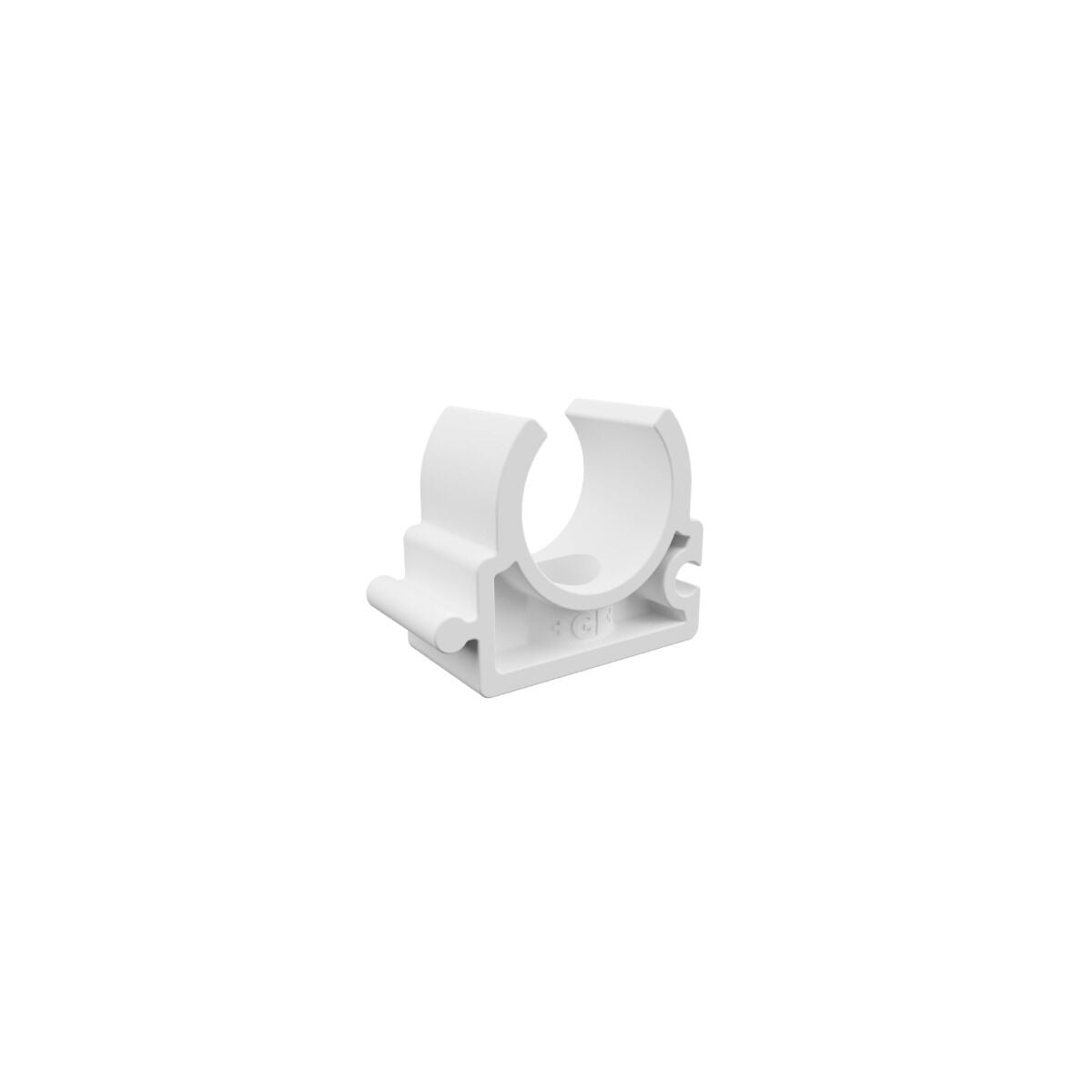

GF+ Aquasystem PP-R Pipe Clip (Single) — A single snap-in pipe clip that fixes the Aquasystem pipe to a wall, ceiling or bracket. The pipe is pressed into the clip and the clip is fixed with a screw.
Applications
- Fixing pipes in exposed (surface-mounted) installations
- Supporting lines in shafts and service floors
- Intermediate support in sliding and fixed point arrangements
Key features
- Snap-in design: tool-free pipe mounting
- Same material as the pipe, does not corrode
- Ø20 – Ø110 mm
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Single Clamp PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | PN | D | L1 | H | LB |
|---|---|---|---|---|---|---|---|
| 20 mm | 4300902025021 | 20 | 25 | 5.5 | 33 | 6.9 | 32.5 |
| 25 mm | 4300902525121 | 25 | 25 | 5.5 | 37 | 7.5 | 37.5 |
| 32 mm | 4300903225221 | 32 | 25 | 5.5 | 43 | 8.0 | 47.5 |
| 40 mm | 4300904025322 | 40 | 25 | 5.5 | 48 | 14.4 | 55.0 |
| 50 mm | 4300905025422 | 50 | 25 | 5.5 | 64 | 11.2 | 56.0 |
| 63 mm | 4300906331622 | 63 | 25 | 7.5 | 82 | 14.2 | 79.0 |
| 75 mm | 4300907532022 | 75 | 25 | 7.5 | 93 | 16.6 | 93.0 |
| 90 mm | 4300909032022 | 90 | 25 | 7.5 | 115 | 16.7 | 120.0 |
| 110 mm | 4300911009022 | 110 | 25 | 7.5 | 134 | 16.4 | 124.0 |

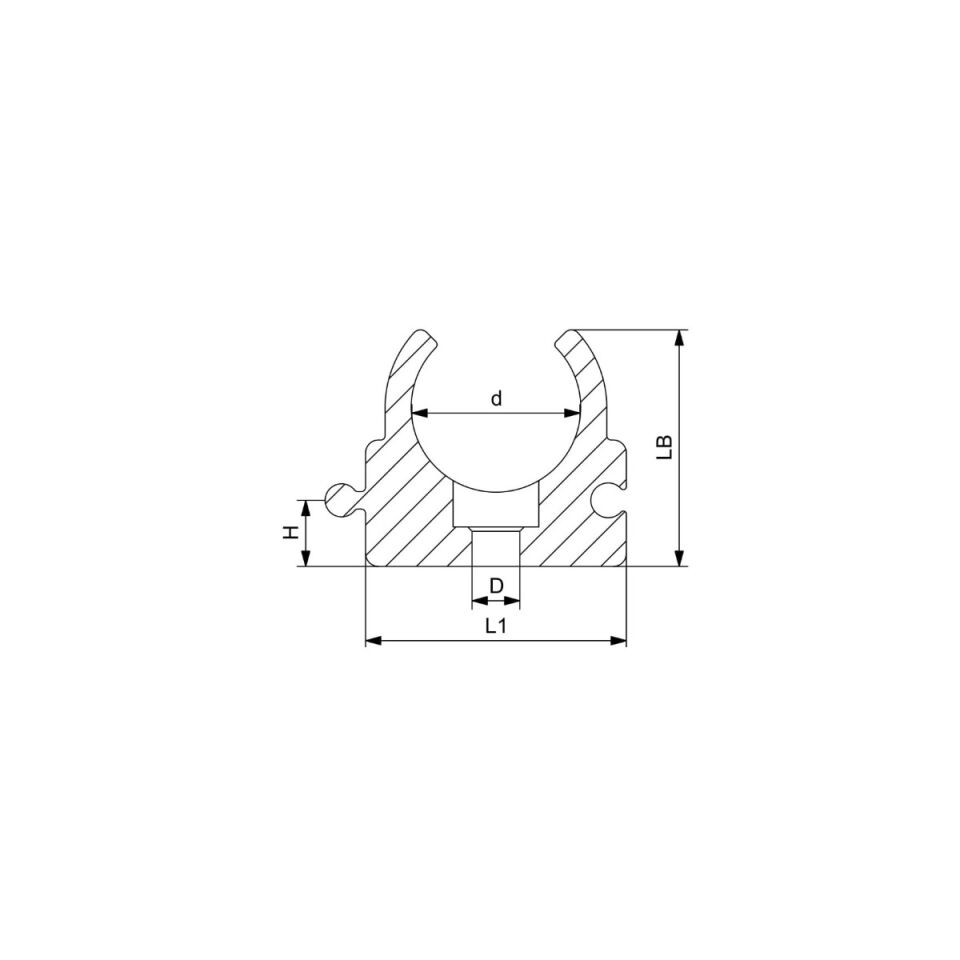

d: pipe outside diameter (mm) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · H: height (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
What should the clip spacing be?
Spacing depends on pipe diameter, water temperature and pipe type; hot water lines and pipes without fiberglass need closer clip spacing. Determine it according to the project values.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
