GF+ Aquasystem PP-R Pipe Clip (Double)

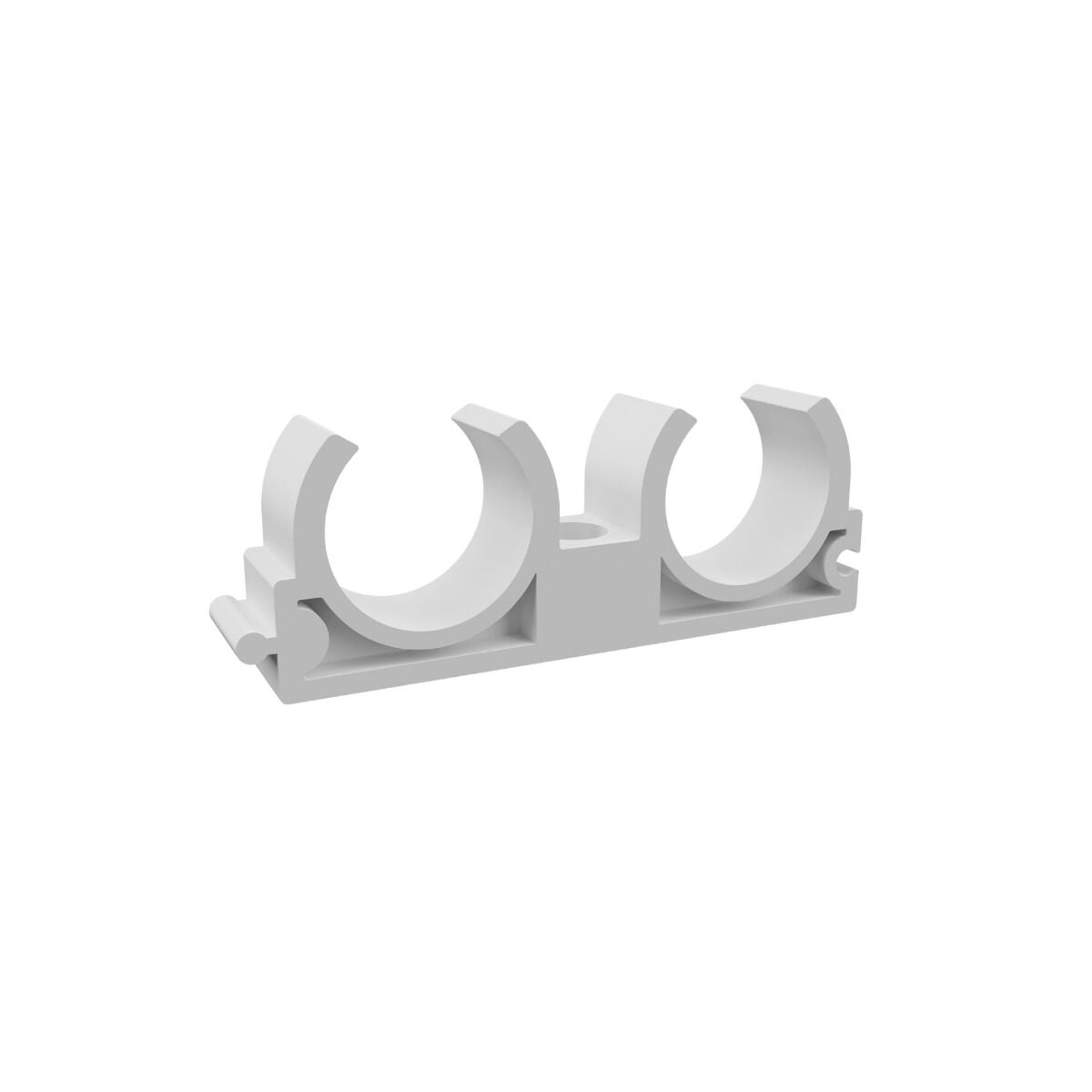

GF+ Aquasystem PP-R Pipe Clip (Double) — A double snap-in clip that fixes two parallel pipes (for example hot and cold water) at the same point. It keeps the distance between the two lines constant and gives a neat installation.
Applications
- Running hot and cold water lines together
- Heating flow and return lines
- Surface-mounted and in-shaft installations
Key features
- Two pipes, one fixing point
- Constant center distance between lines
- Ø20 – Ø32 mm
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Double Clamp PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | PN | D | L1 | H | LB |
|---|---|---|---|---|---|---|---|
| 20 mm | 4300902025521 | 20 | 25 | 6.0 | 70 | 7.6 | 28.0 |
| 25 mm | 4300902525621 | 25 | 25 | 6.0 | 83 | 7.5 | 33.0 |
| 32 mm | 4300903225722 | 32 | 25 | 6.0 | 90 | 6.3 | 36.0 |

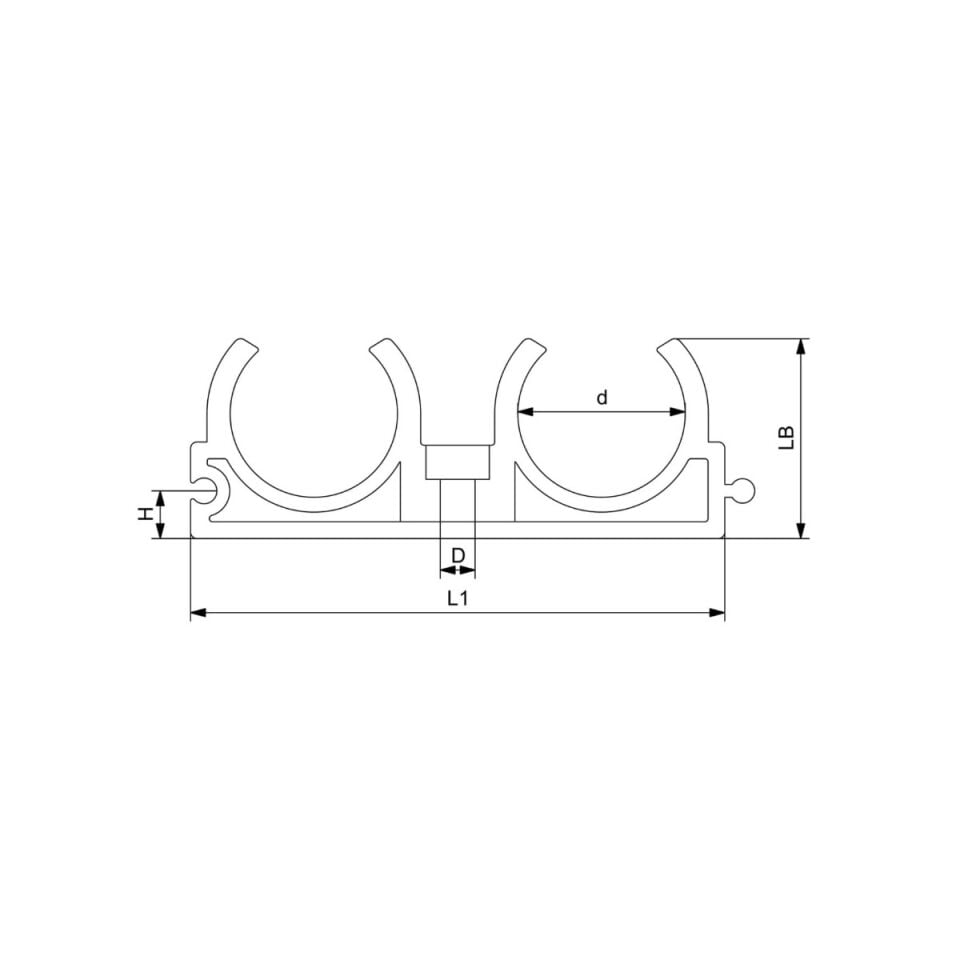

d: pipe outside diameter (mm) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · H: height (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
Can two pipes of different diameters be fitted?
No; both seats are for the same diameter.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
