GF+ Aquasystem PP-R Male Threaded Wall Elbow (with mounting plate) 25 mm - 3/4″

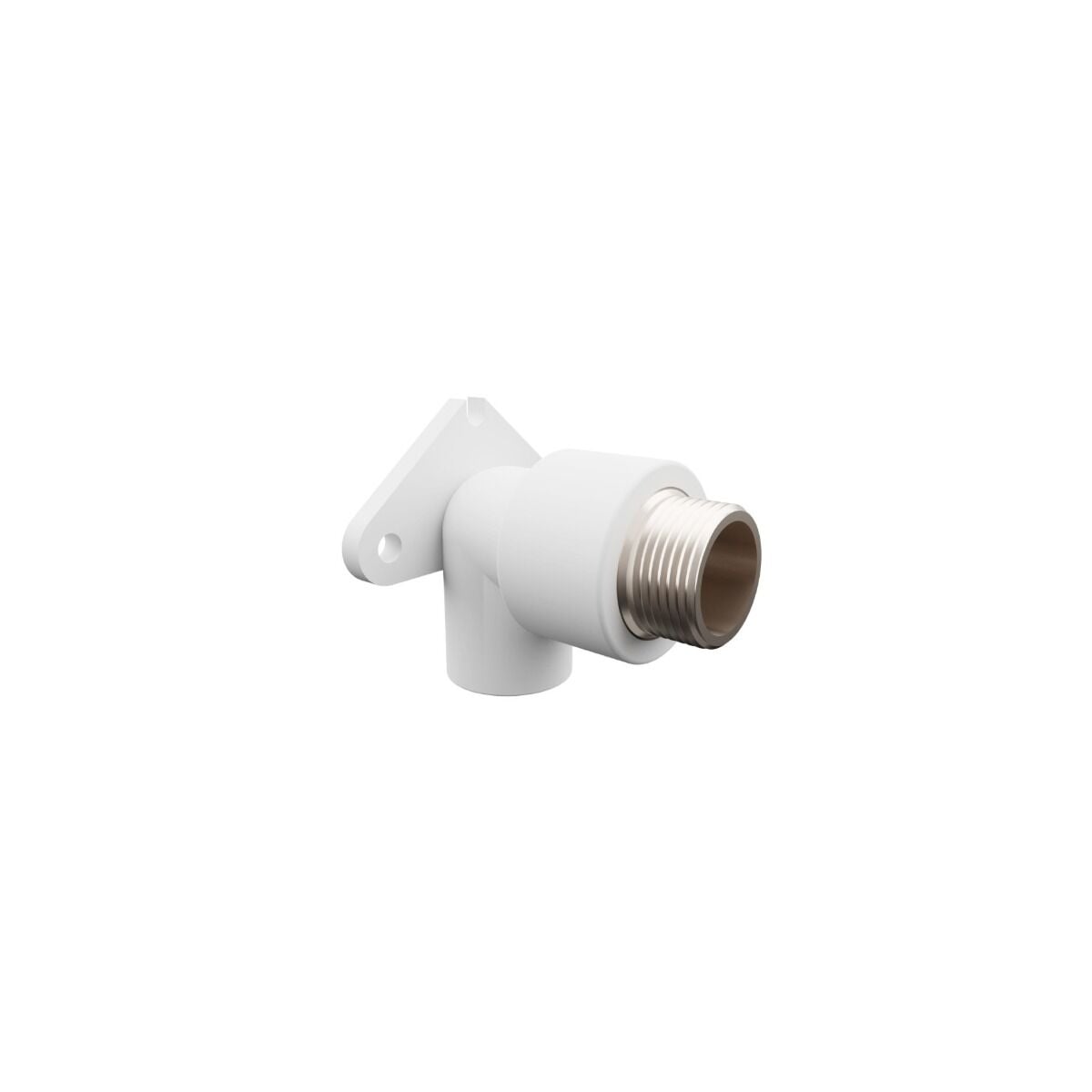

GF+ Aquasystem PP-R Male Threaded Wall Elbow (with mounting plate) 25 mm - 3/4″ — An elbow with mounting lugs that can be screwed to the wall and a nickel-plated brass male-threaded outlet. It holds female-threaded fixture and hose connections firmly on the wall.
Applications
- Female-threaded fixture and tap connections
- Flexible hose connection outlets
- Threaded outlets that must be fixed to the wall
Key features
- Screw mounting lug
- Nickel-plated brass male thread (BSPP-G)
- PN25 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Male Backplate Elbow Type 3 BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | DN | G | PN | D | L1 | LB |
|---|---|---|---|---|---|---|---|---|
| 25 mm - 3/4″ | 4300102509221 | 24.2 | 25 | 3∕4 | 25 | 35.0 | 16.0 | 66.5 |

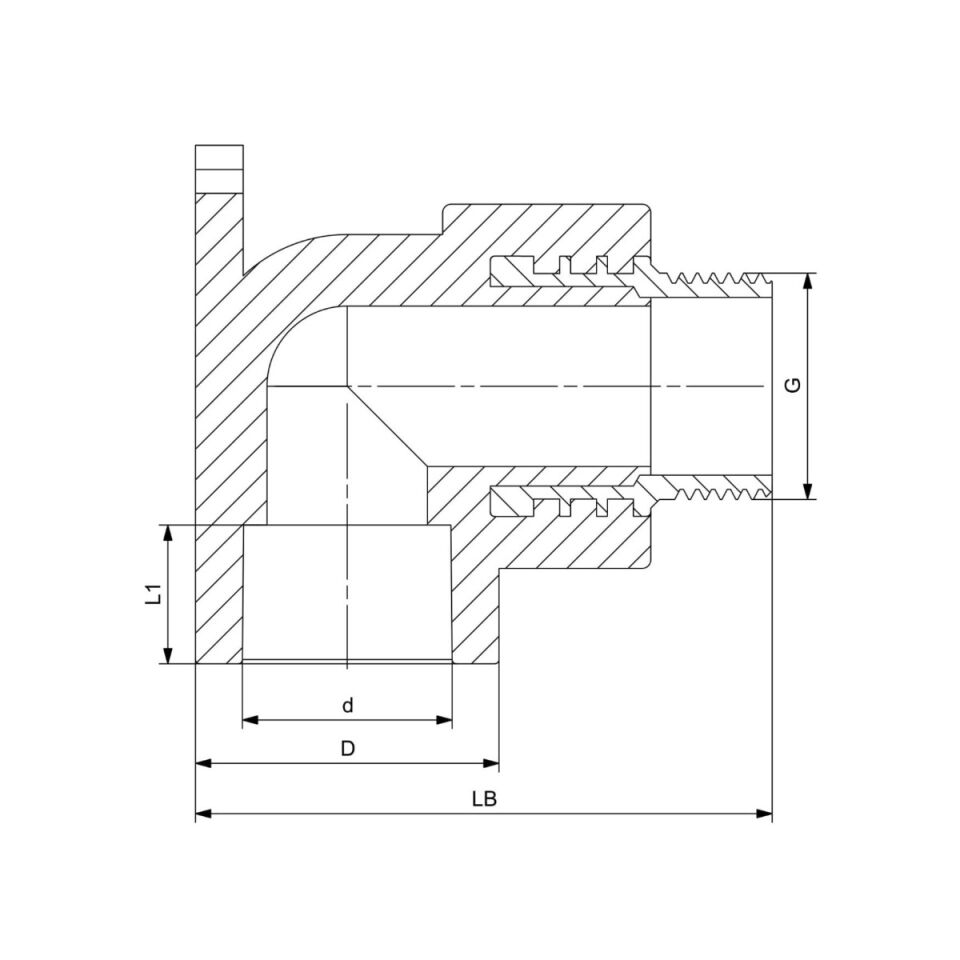

d: pipe outside diameter (mm) · DN: nominal size · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø25 | 15 | 7 | 4 | 2 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
What if a female-threaded outlet is needed?
For a female-threaded outlet, the PP-R Female Threaded Wall Elbow (with mounting plate) is used.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
