GF+ Aquasystem PP-R Male Threaded Tee 20 mm - 1/2″
GF+ Aquasystem PP-R Male Threaded Tee 20 mm - 1/2″ — A tee that continues the main line welded to the pipe while providing a nickel-plated brass male-threaded outlet in the middle. It is used to take a branch directly off the line to a female-threaded valve or fixture.
Applications
- Female-threaded valve and tap branches
- Fitting female-threaded equipment on the line
- Installation test points
Key features
- Nickel-plated brass male thread on the branch (BSPP-G)
- Main line for socket fusion welding
- PN25 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Tee Male BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | DN | G | PN | D | L1 | L | LB |
|---|---|---|---|---|---|---|---|---|---|
| 20 mm - 1/2″ | 4300902012021 | 19.2 | 20 | 1∕2 | 25 | 27.5 | 14.8 | 51.5 | 59.8 |

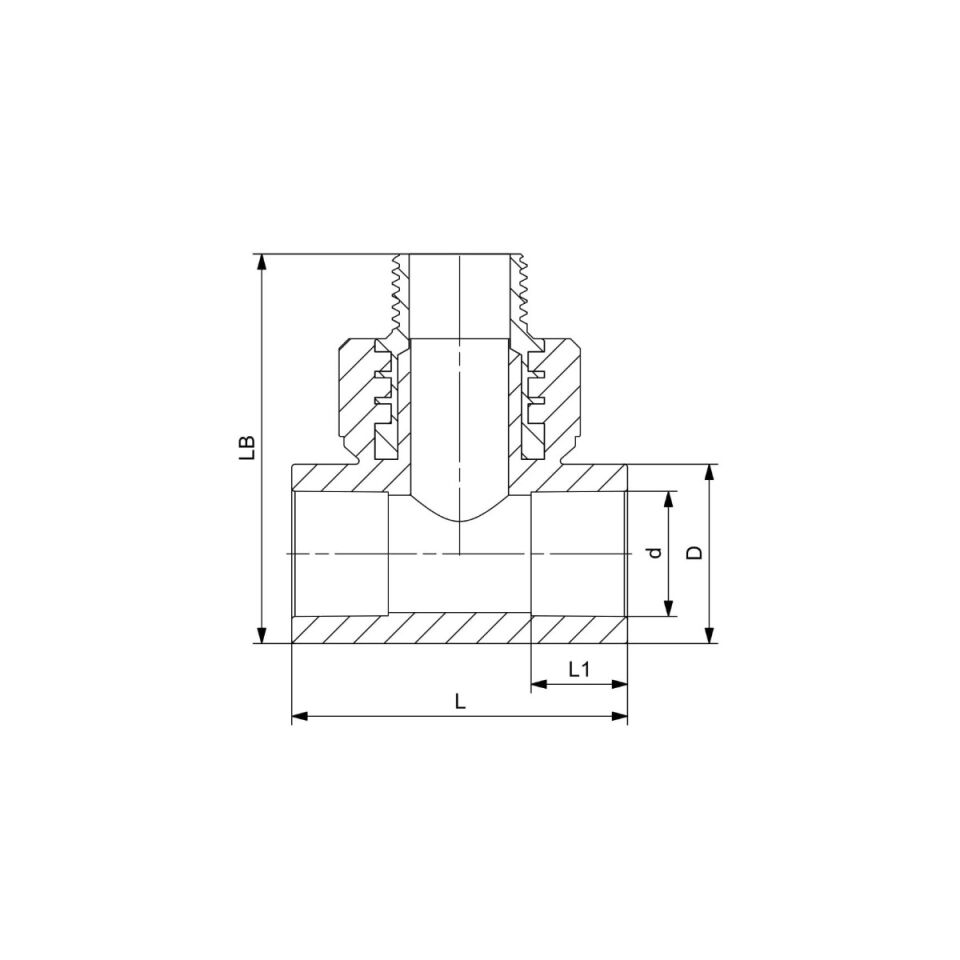

d: pipe outside diameter (mm) · DN: nominal size · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · L: side outlet / thread length (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
What if I want a female-threaded branch?
For a female-threaded outlet, the PP-R Female Threaded Tee is used.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
