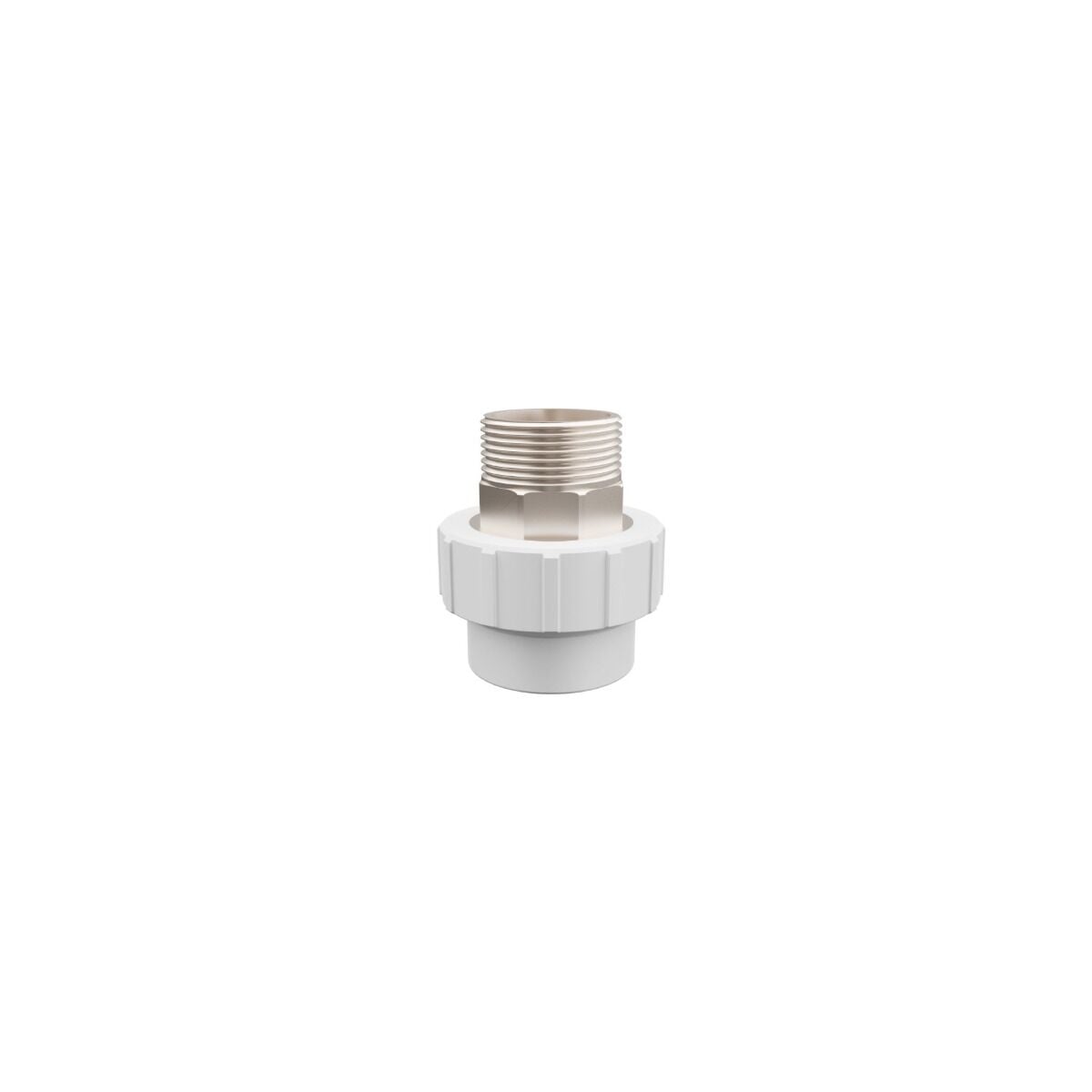

GF+ Aquasystem PP-R Male Threaded Adapter (Hexagon)
GF+ Aquasystem PP-R Male Threaded Adapter (Hexagon) — An adapter with a hexagon brass body that provides the transition from PP-R pipe to male-threaded equipment on large-diameter lines. The hexagon wrench flats allow secure tightening at high torque.
Applications
- Valve, pump and manifold connections on risers and main lines
- Boiler room and plant room connections
- Large-diameter threaded equipment inlets
Key features
- Nickel-plated brass hexagon male thread (BSPP-G)
- Secure tightening with a wrench
- Ø32 – Ø110 mm, PN25
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Male Socket (Hexagon) BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | G | PN | D | L1 | LB |
|---|---|---|---|---|---|---|---|
| 32 mm - 1″ | 4300703227021 | 32 | 1 | 25 | 43.0 | 18.0 | 72.6 |
| 40 mm - 1 1/4″ | 4300704027121 | 40 | 1 1∕4 | 25 | 52.8 | 21.1 | 77.5 |
| 50 mm - 1 1/2″ | 4300705027221 | 50 | 1 1∕2 | 25 | 65.0 | 26.0 | 81.5 |
| 63 mm - 2″ | 4300706327321 | 63 | 2 | 25 | 82.5 | 28.0 | 95.3 |
| 75 mm - 2 1/2″ | 4300707527421 | 75 | 2 1∕2 | 25 | 101.2 | 31.0 | 104.2 |
| 90 mm - 3″ | 4300709027521 | 90 | 3 | 25 | 119.0 | 35.8 | 122.0 |
| 110 mm - 4″ | 4300711027621 | 110 | 4 | 25 | 147.0 | 43.0 | 130.4 |

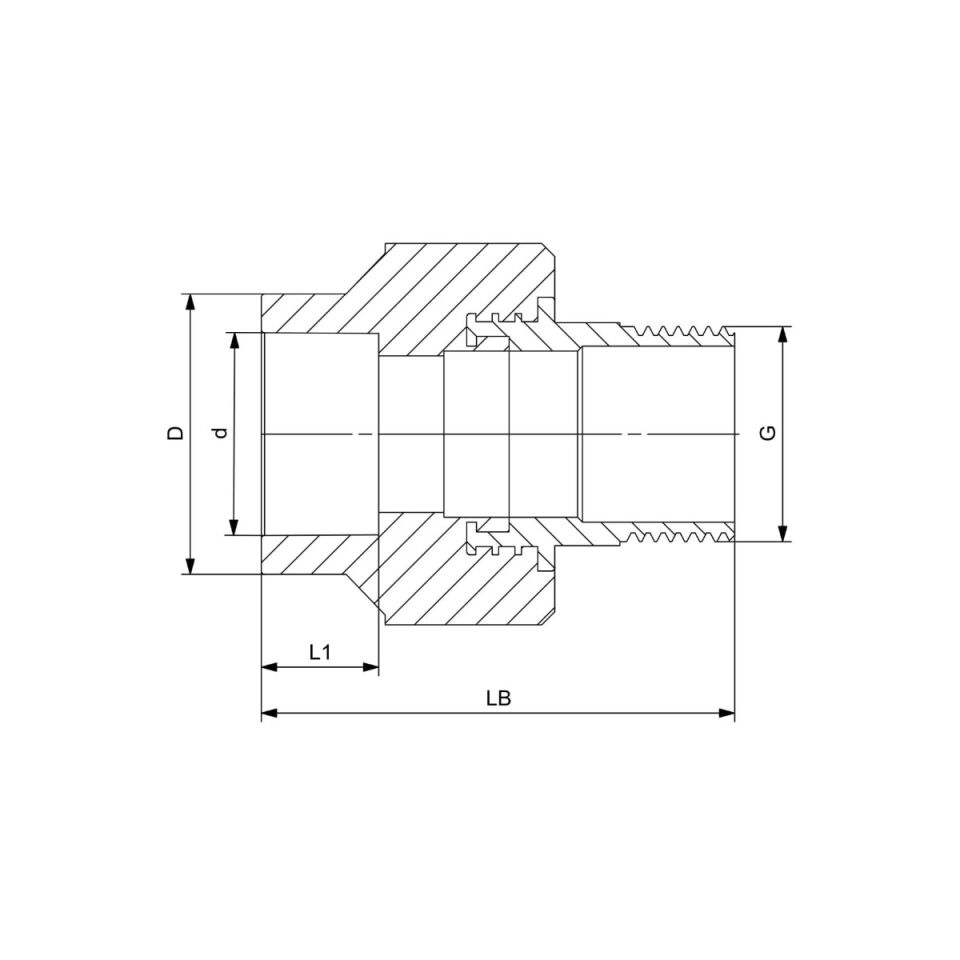

d: pipe outside diameter (mm) · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
