GF+ Aquasystem PP-R Flange Adapter

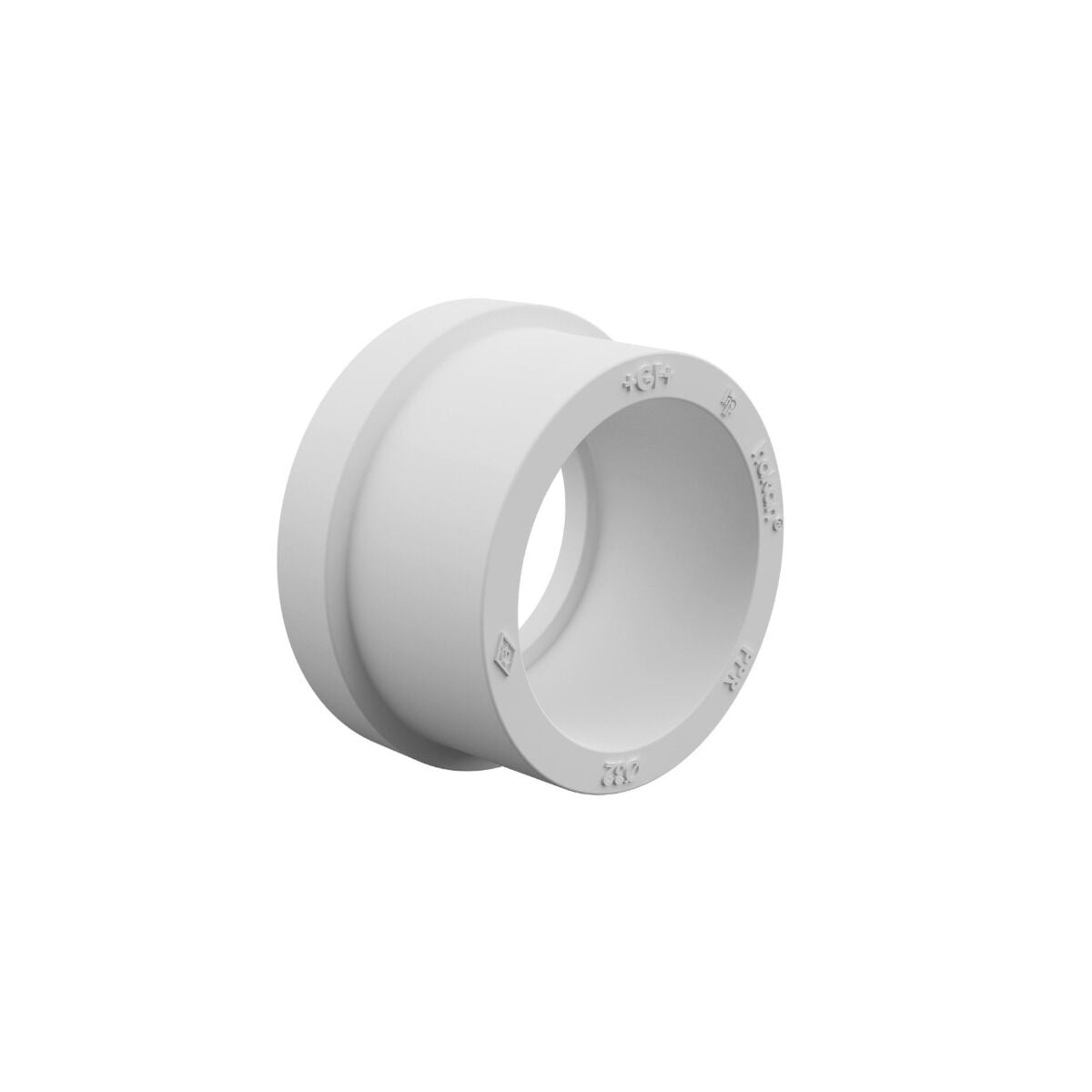

GF+ Aquasystem PP-R Flange Adapter — A flange adapter (stub flange) welded to the pipe, used to connect large-diameter Aquasystem lines to flanged valves, pumps, heat exchangers and equipment. It connects to the mating side with a loose (backing) flange.
Applications
- Flanged valve, pump and check valve connections
- Boiler rooms, heating substations and booster sets
- Detachable large-diameter connections
Key features
- Ø75 – Ø110 mm, PN25 pressure rating
- Socket fusion welded to the pipe
- Detachable connection with loose flange and gasket
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM PP-R Flange Adaptor |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | DN | PN | D | L | LB |
|---|---|---|---|---|---|---|---|
| 75 mm | 4300907533022 | 73.4 | 75 | 25 | 107.0 | 30.0 | 39.0 |
| 90 mm | 4300909033022 | 88.2 | 90 | 25 | 126.0 | 33.0 | 46.0 |
| 110 mm | 4300911033022 | 108.0 | 110 | 25 | 150.0 | 37.0 | 49.0 |

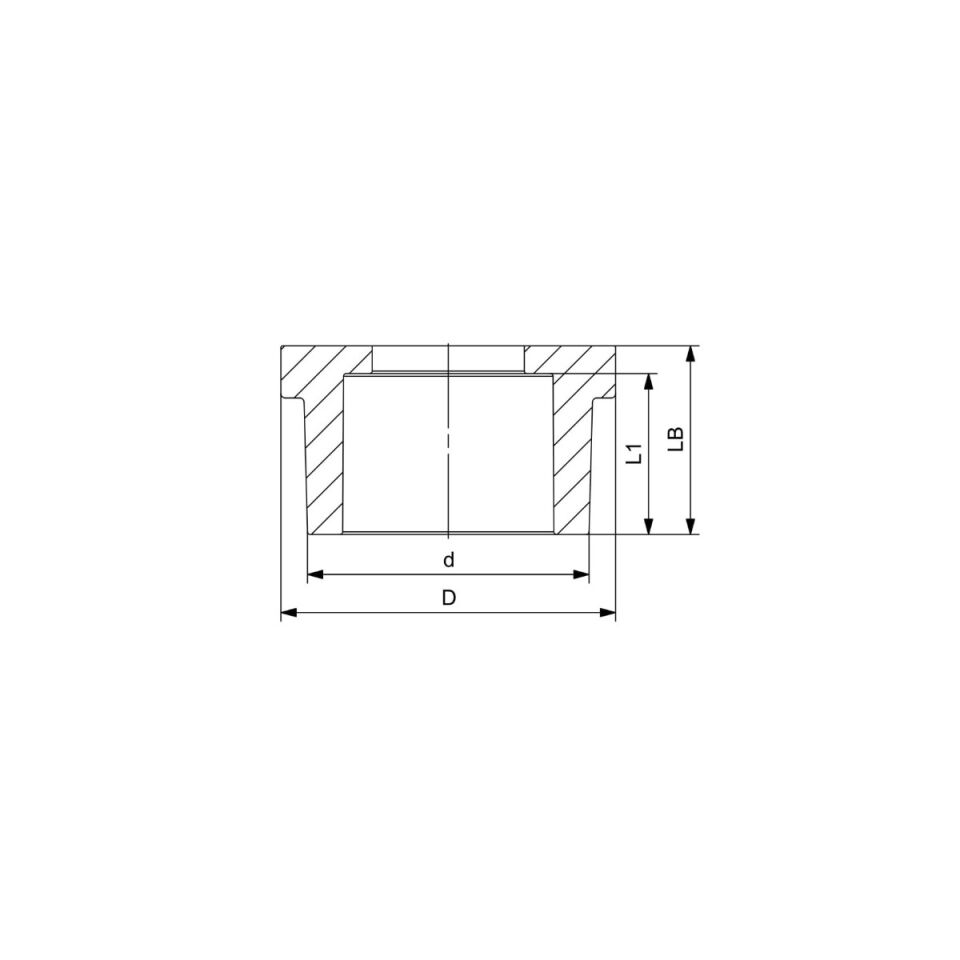

d: pipe outside diameter (mm) · DN: nominal size · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L: side outlet / thread length (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
Is the flange included?
The product is a welded flange adapter; the steel backing flange and gasket are selected separately. Determine the flange size according to the DN/PN values of the mating equipment.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
