GF+ Aquasystem PP-R Female Threaded Transition Union with Loose Nut (Hexagon)

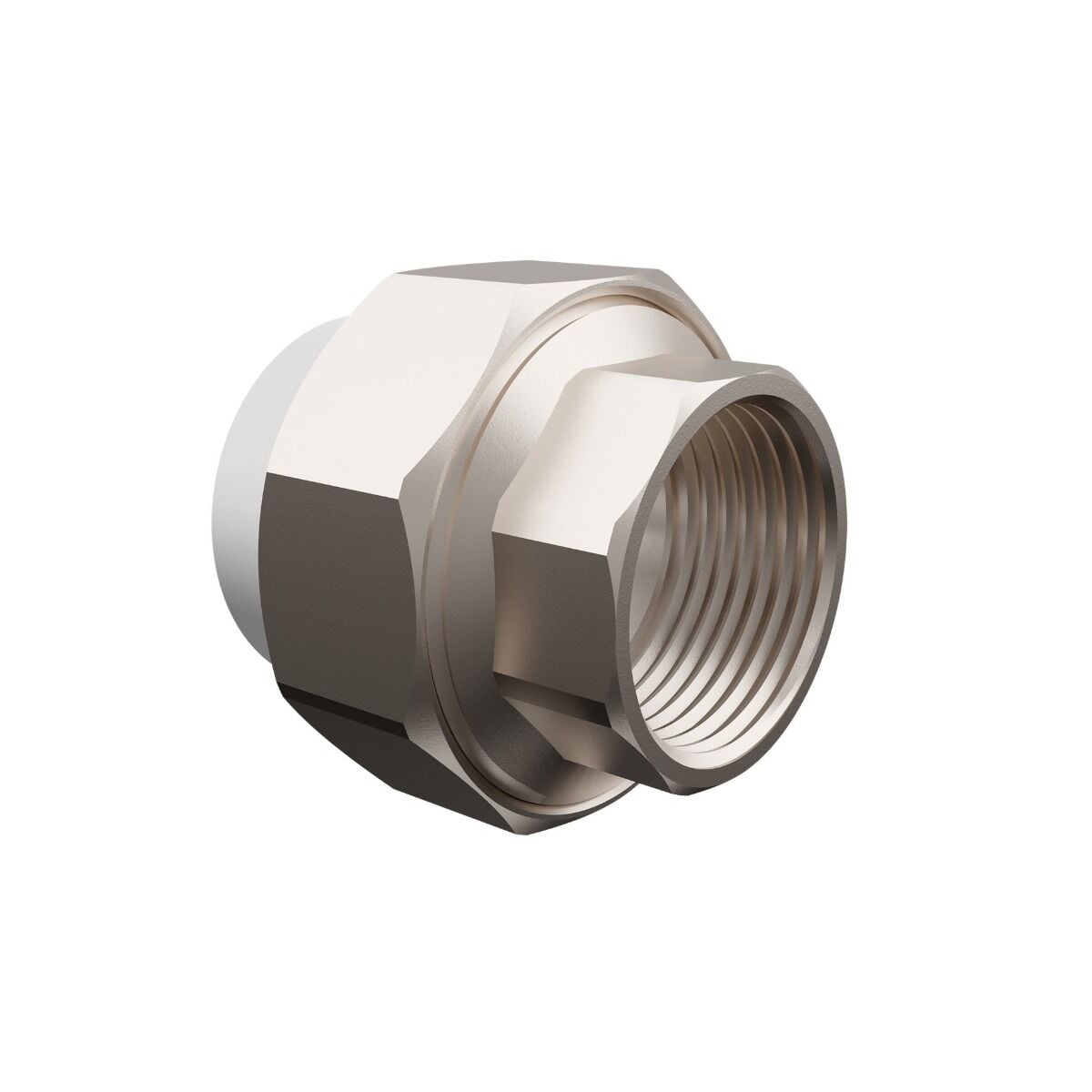

GF+ Aquasystem PP-R Female Threaded Transition Union with Loose Nut (Hexagon) — A transition union consisting of a PP-R body welded to the pipe and a rotating (loose) hexagon brass female-threaded nut. Because the nut turns independently, neither the pipe nor the mating equipment needs to be rotated.
Applications
- Equipment that must be removable, such as pumps, meters and valves
- Connection to fixed male-threaded equipment
- Boiler room and manifold connections
Key features
- Loose nut: connects without rotating the line
- Nickel-plated brass hexagon female thread (BSPP-G)
- Ø20 – Ø63 mm, PN25
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Transition Joint Hexagonal Female BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | DN | G | PN | D | L1 | LB |
|---|---|---|---|---|---|---|---|---|
| 20 mm - 1/2″ | 4300902003021 | 19.2 | 20 | 1∕2 | 25 | 25.2 | 15.4 | 38.6 |
| 20 mm - 3/4″ | 4300902003121 | 19.2 | 20 | 3∕4 | 25 | 25.2 | 15.4 | 41.1 |
| 25 mm - 3/4″ | 4300902503321 | 24.3 | 25 | 3∕4 | 25 | 32.8 | 18.5 | 44.1 |
| 32 mm - 1″ | 4300903203521 | 31.2 | 32 | 1 | 25 | 39.9 | 20.5 | 50.1 |
| 40 mm - 1 1/4″ | 4300904005021 | 39.0 | 40 | 1 1∕4 | 25 | 49.7 | 23.9 | 58.7 |
| 50 mm - 1 1/2″ | 4300905005121 | 48.9 | 50 | 1 1∕2 | 25 | 57.9 | 24.0 | 58.9 |
| 63 mm - 2″ | 4300906305221 | 61.9 | 63 | 2 | 25 | 73.6 | 27.5 | 66.1 |

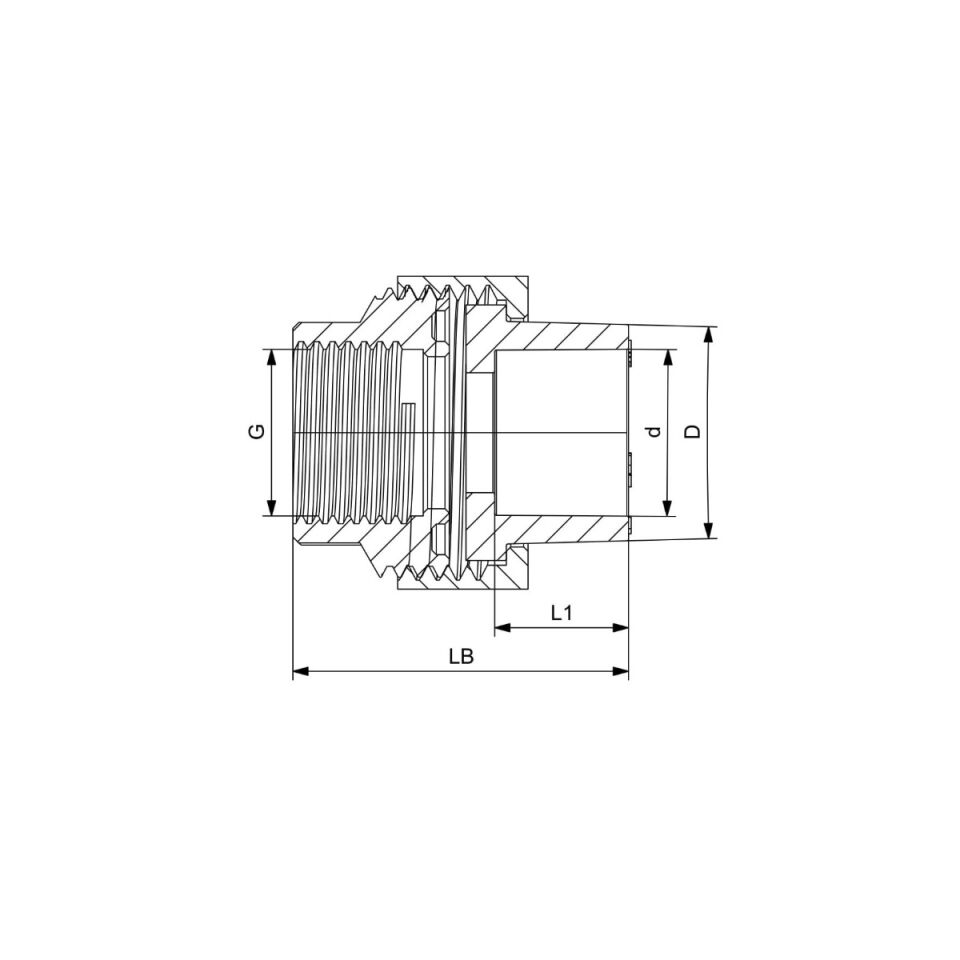

d: pipe outside diameter (mm) · DN: nominal size · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
What is the advantage of the loose nut?
The connection can be made while the mating equipment stays fixed, and it can be removed when needed without cutting the line.
