GF+ Aquasystem PP-R Female Threaded Tee
GF+ Aquasystem PP-R Female Threaded Tee — A tee that continues the main line welded to the pipe while providing a nickel-plated brass female-threaded outlet in the middle. It is used to take a threaded branch (tap, valve, sensor, air vent) directly off the line.
Applications
- Tap and garden valve outlets
- Fitting a pressure gauge, thermometer or air vent on the line
- Threaded fixture branches
Key features
- Nickel-plated brass female thread on the branch (BSPP-G)
- Main line for socket fusion welding
- PN25 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Tee Female BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | DN | G | PN | D | L1 | L | LB |
|---|---|---|---|---|---|---|---|---|---|
| 20 mm - 1/2″ | 4300902010021 | 19.2 | 20 | 1∕2 | 25 | 27.5 | 14.8 | 51.5 | 46.8 |
| 20 mm - 3/4″ | 4300902010121 | 19.2 | 20 | 3∕4 | 25 | 29.8 | 14.8 | 59.0 | 50.9 |
| 25 mm - 1/2″ | 4300902510221 | 24.2 | 25 | 1∕2 | 25 | 33.0 | 16.0 | 59.0 | 54.5 |
| 25 mm - 3/4″ | 4300902510321 | 24.2 | 25 | 3∕4 | 25 | 33.0 | 16.0 | 59.0 | 54.5 |
| 32 mm - 1″ | 4300903210521 | 31.1 | 32 | 1 | 25 | 42.0 | 18.5 | 74.5 | 69.0 |
| 32 mm - 3/4″ | 4300903210421 | 31.1 | 32 | 3∕4 | 25 | 42.0 | 18.5 | 75.0 | 69.0 |

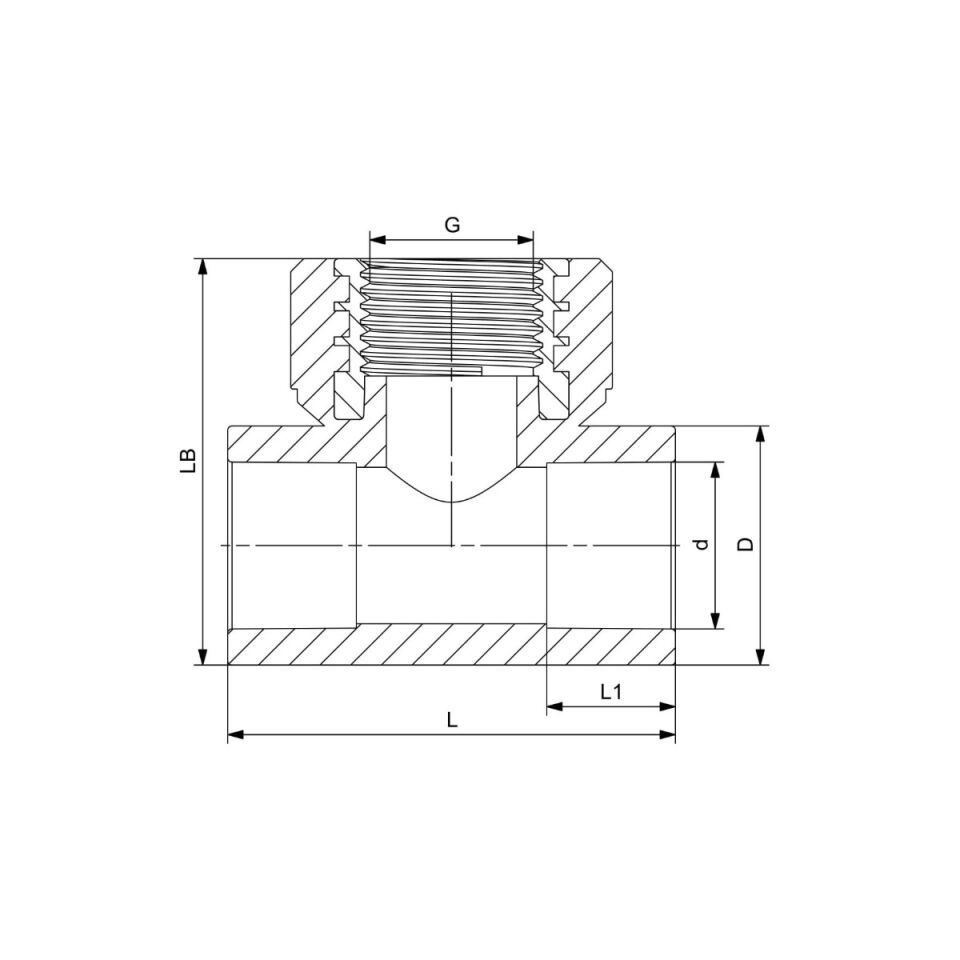

d: pipe outside diameter (mm) · DN: nominal size · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · L: side outlet / thread length (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
What if I want a male-threaded branch?
For a male-threaded outlet, the PP-R Male Threaded Tee is used.
