GF+ Aquasystem PP-R Female Threaded Elbow

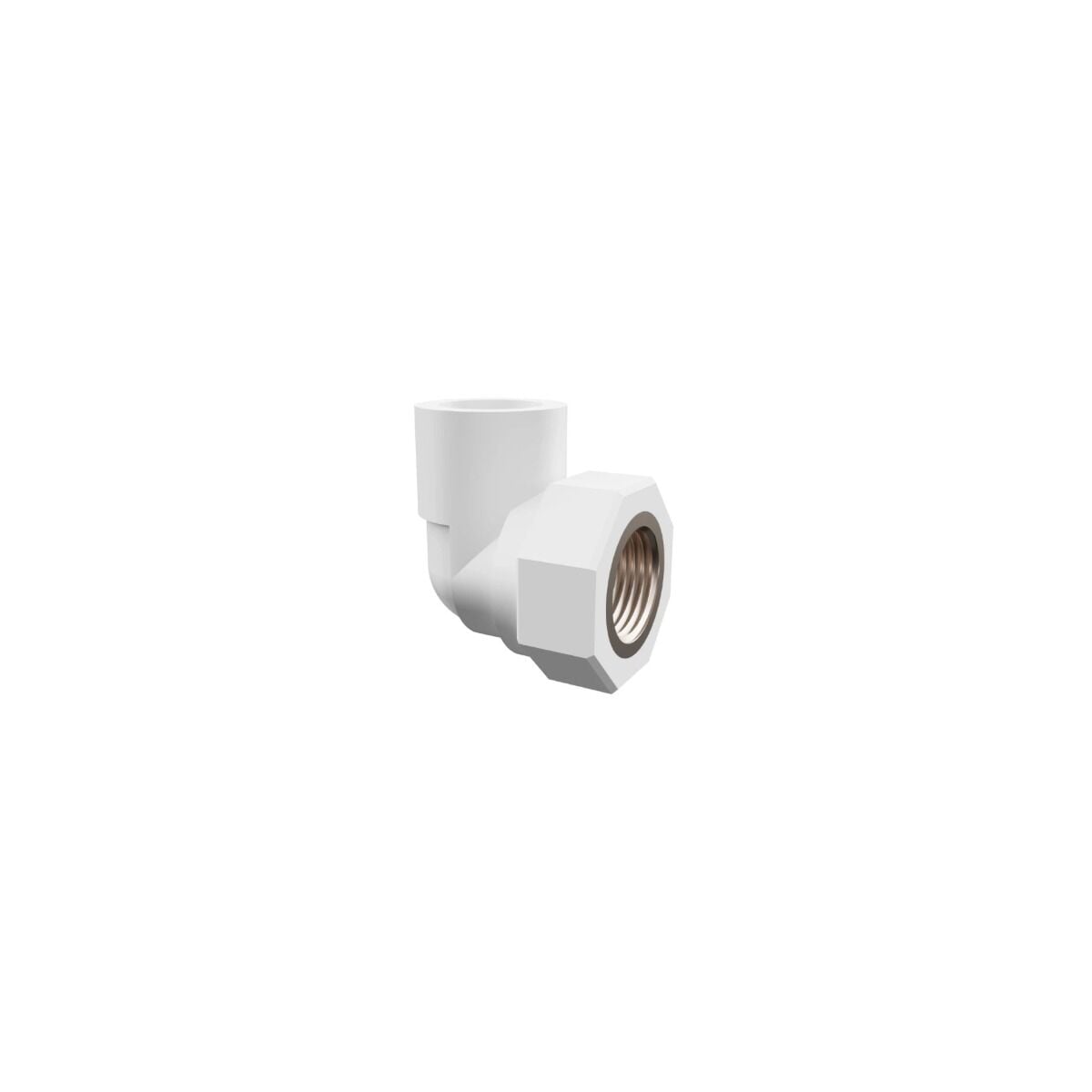

GF+ Aquasystem PP-R Female Threaded Elbow — A 90° elbow with one end welded to the pipe and a nickel-plated brass female thread on the other. It allows a threaded equipment connection to be made together with a turn in the line.
Applications
- Faucet, concealed valve and fixture outlets
- Combi boiler and water heater connections
- Right-angle connection to threaded equipment
Key features
- Nickel-plated brass female thread (BSPP-G)
- Change of direction and threaded transition in one piece
- PN25 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Female Elbow BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | DN | G | PN | D | L1 | LB |
|---|---|---|---|---|---|---|---|---|
| 20 mm - 1/2″ | 4300102006021 | 19.2 | 20 | 1∕2 | 25 | 28.0 | 15.0 | 48.0 |
| 20 mm - 3/4″ | 4300102006121 | 19.2 | 20 | 3∕4 | 25 | 30.0 | 16.0 | 50.0 |
| 25 mm - 1/2″ | 4300102506221 | 24.2 | 25 | 1∕2 | 25 | 35.0 | 21.0 | 52.0 |
| 25 mm - 3/4″ | 4300102506321 | 24.2 | 25 | 3∕4 | 25 | 32.5 | 16.5 | 59.0 |
| 32 mm - 1″ | 4300103206521 | 31.1 | 32 | 1 | 25 | 44.0 | 19.0 | 62.5 |
| 32 mm - 3/4″ | 4300103206421 | 31.1 | 32 | 3∕4 | 25 | 44.0 | 19.0 | 62.5 |

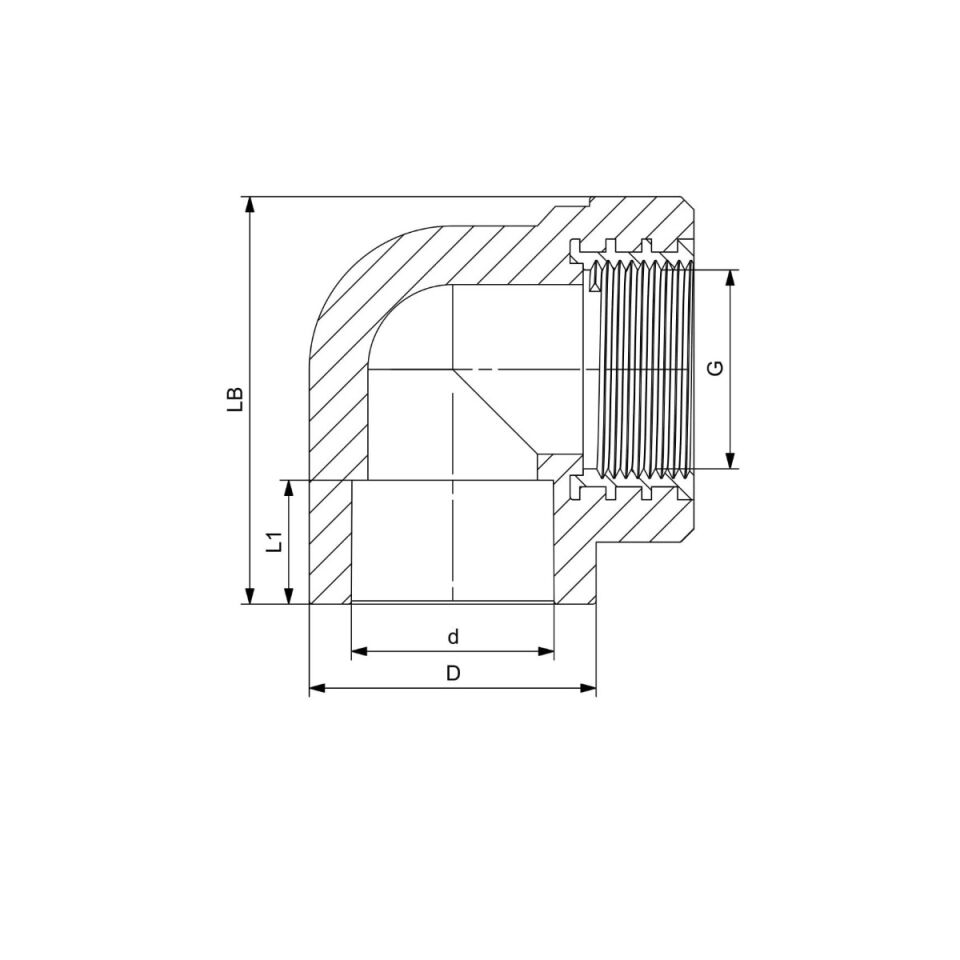

d: pipe outside diameter (mm) · DN: nominal size · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
Which one is used if it must be fixed to the wall?
For outlets to be screwed to the wall, the PP-R Female Threaded Wall Elbow (with mounting plate) with mounting lugs is preferred.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
