GF+ Aquasystem PP-R Female Threaded Adapter (Round)

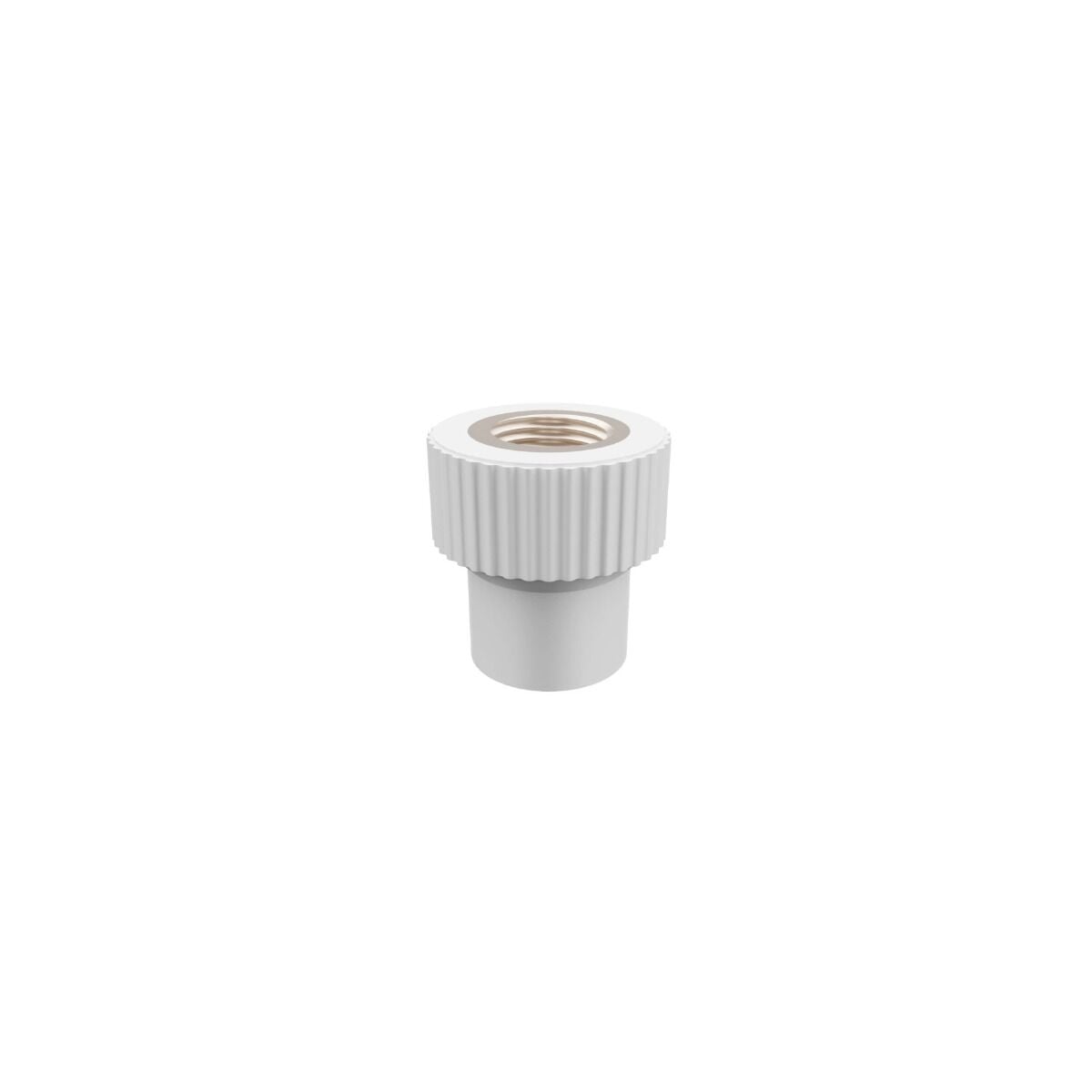

GF+ Aquasystem PP-R Female Threaded Adapter (Round) — A straight transition fitting with one end welded to the pipe and a nickel-plated brass female thread on the other. It connects in a straight line to male-threaded valves, unions and fixtures.
Applications
- Male-threaded valve and fitting connections
- Meter and filter connections
- Transition from threaded installations to PP-R
Key features
- Nickel-plated brass female thread (BSPP-G)
- Round body, straight transition
- PN25 pressure rating
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Female Socket (Round) BSPP-G PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Threaded insert | Nickel-plated brass, BSPP-G (ISO 228) thread |
| Pressure rating (GF data) | PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | G | PN | D | L1 | LB |
|---|---|---|---|---|---|---|---|
| 20 mm - 1/2″ | 4300702030021 | 20 | 1∕2 | 25 | 27.9 | 15.0 | 40.3 |
| 20 mm - 3/4″ | 4300702030121 | 20 | 3∕4 | 25 | 28.0 | 18.5 | 42.5 |
| 25 mm - 1/2″ | 4300702530221 | 25 | 1∕2 | 25 | 33.0 | 17.0 | 40.3 |
| 25 mm - 3/4″ | 4300702530321 | 25 | 3∕4 | 25 | 33.0 | 16.5 | 38.0 |
| 32 mm - 1″ | 4300703230421 | 32 | 1 | 25 | 43.5 | 18.5 | 45.5 |
| 32 mm - 3/4″ | 4300703225321 | 32 | 3∕4 | 25 | 43.5 | 18.5 | 45.5 |

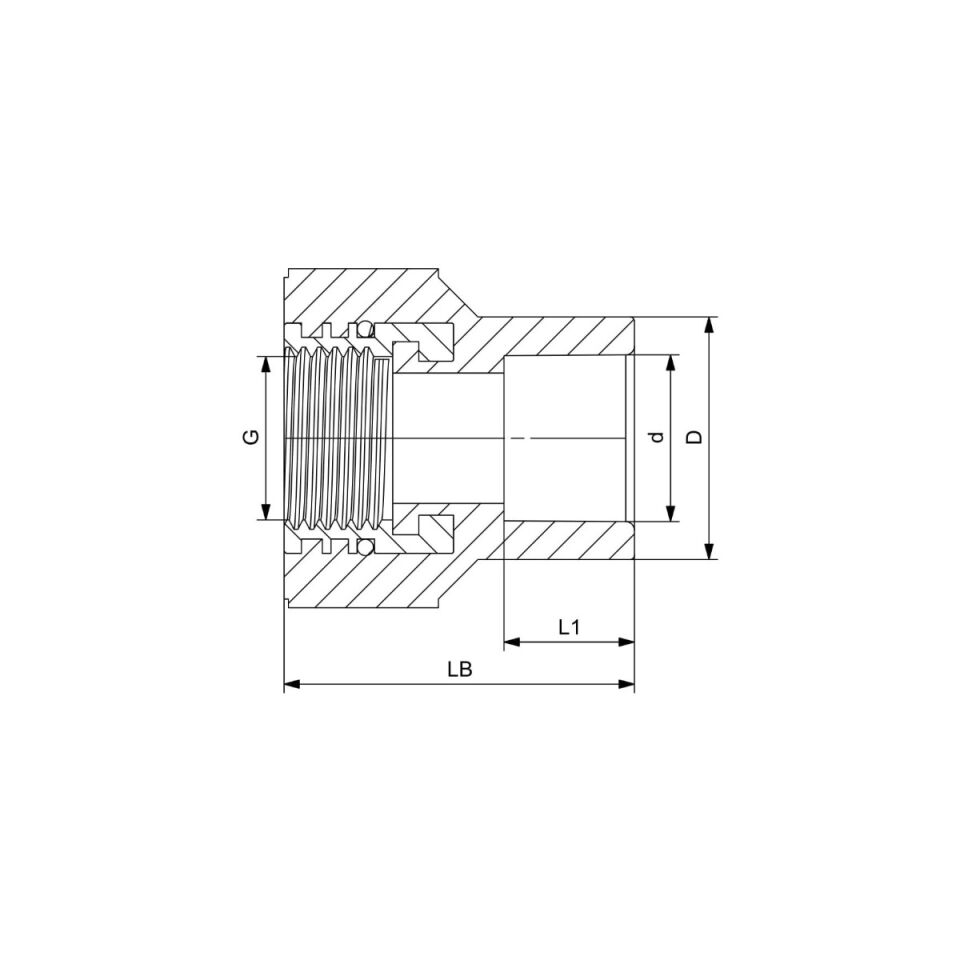

d: pipe outside diameter (mm) · G: thread size (inch, BSPP – ISO 228) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- When tightening a threaded joint, hold the brass part with a wrench; do not apply torque to the PP-R body. Use hemp or sealing tape on the thread.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
Can it be connected to an old galvanized installation?
Yes; this fitting can be used to transition onto the male thread of a galvanized pipe. Use hemp or tape to seal the thread.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
