GF+ Aquasystem PP-R Elbow 45°

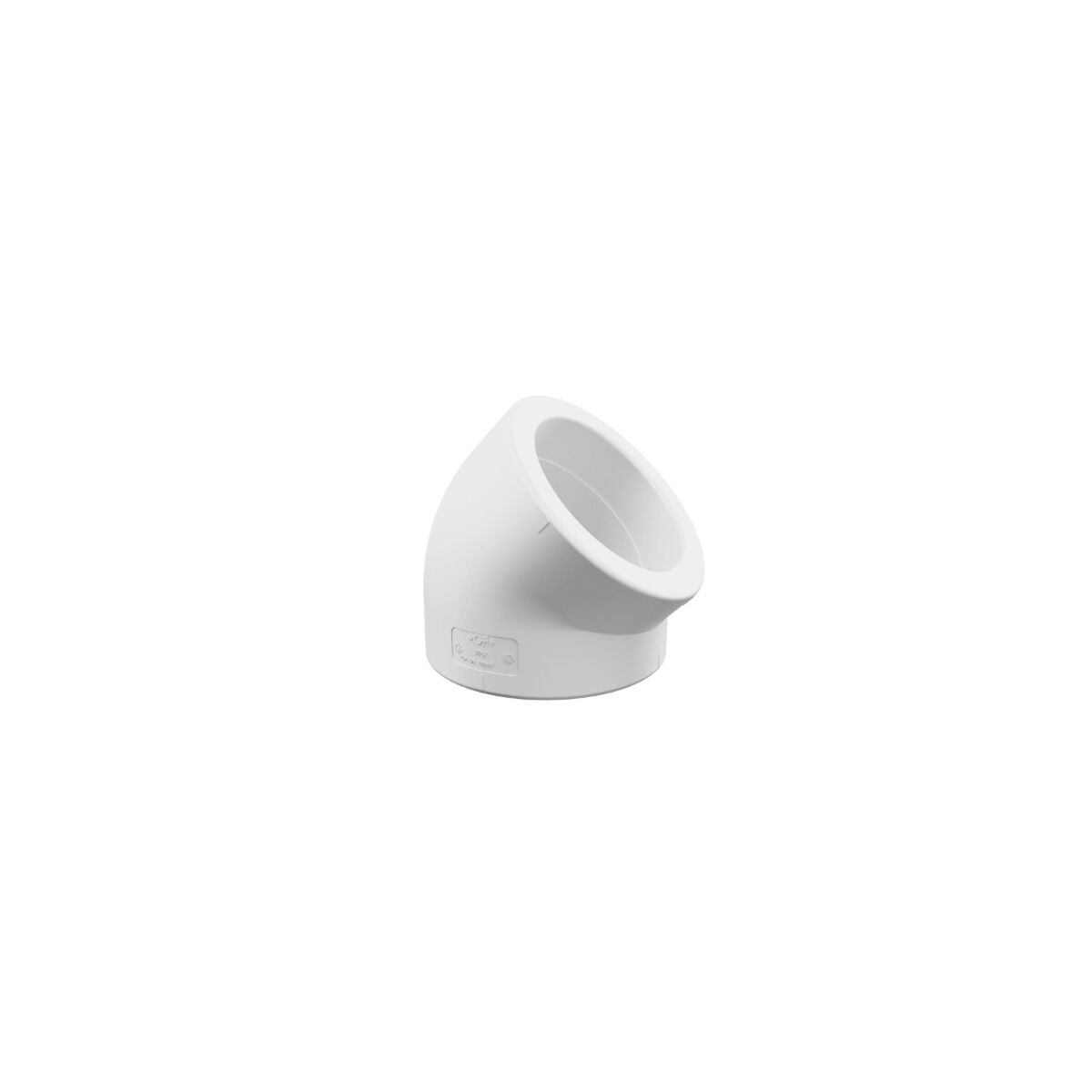

GF+ Aquasystem PP-R Elbow 45° — A fitting with welding sockets on both ends that turns the line by 45°. Because the change of direction is made in two steps, it guides the flow more smoothly than a 90° elbow; pressure loss and flow noise stay lower.
Applications
- Gradual changes of direction in risers and distribution lines
- Routing around beams, columns or other services (offset with two 45° elbows)
- Keeping flow resistance low in heating and hot water lines
Key features
- Smooth 45° change of direction - less pressure loss than a 90° elbow
- Ø20 – Ø160 mm, PN25 pressure rating
- Both ends suitable for socket fusion welding with Aquasystem pipe
Technical specifications
| Property | Value |
|---|---|
| Series | GF+ Aquasystem (Georg Fischer Piping Systems) |
| GF product description | AQUASYSTEM Elbow 45° PP-R |
| Body material | PP-R (polypropylene random copolymer, type 3) |
| Pressure rating (GF data) | PN20 / PN25 |
| Jointing | Socket fusion welding — no seals or compression parts |
| Color | White |
| Application | Cold and hot drinking water, heating systems |
| Standards | Pipe: DIN 8077/8078, EN ISO 15874 · Fittings: DIN 16962, EN ISO 15874 |
Dimensions
| Size | Product code | d | PN | D | L1 | LB |
|---|---|---|---|---|---|---|
| 20 mm | 4300102000121 | 20 | 25 | 28.0 | 15.0 | 45.2 |
| 25 mm | 4300102500221 | 25 | 25 | 33.0 | 17.0 | 52.1 |
| 32 mm | 4300103200321 | 32 | 25 | 42.8 | 18.1 | 59.5 |
| 40 mm | 4300104000421 | 40 | 25 | 52.6 | 21.0 | 70.2 |
| 50 mm | 4300105000521 | 50 | 25 | 65.6 | 24.0 | 85.6 |
| 63 mm | 4300106300621 | 63 | 25 | 83.6 | 27.6 | 103.2 |
| 75 mm | 4300107501221 | 75 | 25 | 98.6 | 31.0 | 119.7 |
| 90 mm | 4300109001322 | 90 | 25 | 97.7 | 33.0 | 136.4 |
| 110 mm | 4300111001422 | 110 | 25 | 117.7 | 37.5 | 158.6 |
| 160 mm | 4300116001621 | 160 | 20 | 208.0 | 48.0 | 218.4 |

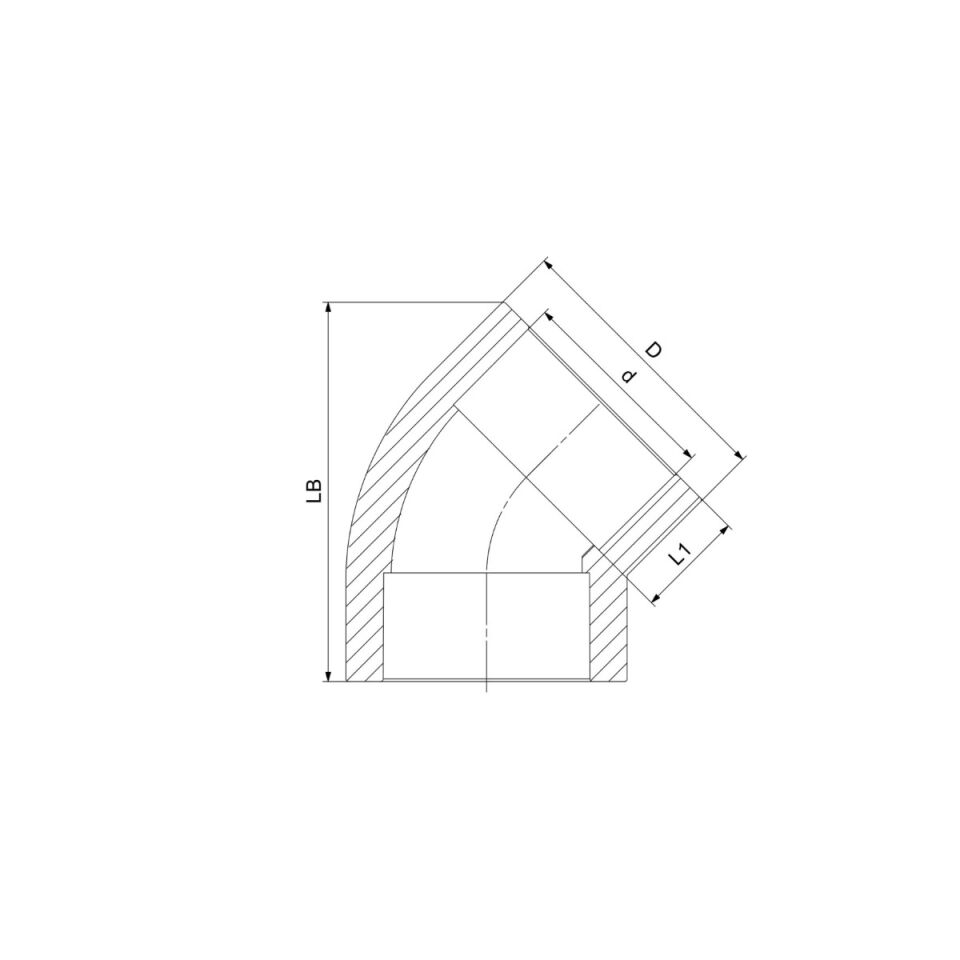

d: pipe outside diameter (mm) · PN: nominal pressure (bar, 20 °C) · D: body outside diameter (mm) · L1: socket depth (mm) · LB: overall length (mm). Dimensions from the GF Piping Systems data sheet; the technical drawing in the product images shows where each dimension applies.
Socket fusion welding times
| Pipe diameter | Welding depth (mm) | Heating (s) | Joining time (s) | Cooling (min) |
|---|---|---|---|---|
| Ø20 | 14 | 5 | 4 | 2 |
| Ø25 | 15 | 7 | 4 | 2 |
| Ø32 | 16.5 | 8 | 6 | 4 |
| Ø40 | 18 | 12 | 6 | 4 |
| Ø50 | 20 | 18 | 6 | 4 |
| Ø63 | 24 | 24 | 8 | 6 |
| Ø75 | 26 | 30 | 8 | 8 |
| Ø90 | 29 | 40 | 8 | 8 |
| Ø110 | 32.5 | 50 | 10 | 8 |
Values per DVS 2207-11 at +20 °C ambient and 260 °C heating tool temperature. Below +5 °C, extend the heating time by about 50%. Heating time starts when pipe and fitting are fully seated on the heating dies; during the joining time the parts may be aligned axially without twisting.
Installation tips
- Cut the pipe square with a pipe cutter and mark the welding depth on the pipe.
- Push pipe and fitting onto the heating dies at the same time without twisting; when the heating time is over, join them quickly and axially.
- Do not twist the parts after the joining time; do not pressurize the line before the cooling time has passed.
- Pressure-test the installation before closing walls or screed.
Frequently asked questions
How many 45° elbows are needed for an offset?
To shift a line in parallel, two 45° elbows are used with a pipe section of suitable length between them.
Which jointing method is used for Ø160 mm?
For Ø160 mm, GF offers two options: butt welded (SDR11) and socket welded. This product is socket welded and can be welded to pipes of all SDR series.
Used together in the Aquasystem system
PP-R Standard Pipe SDR6 · PP-R Fiberglass Reinforced (Faser) Pipe · PP-R Welding Kit · PP-R Welding Dies · PP-R Pipe Cutter · PP-R Elbow 90°
About the brand
Aquasystem is the PP-R piping system of Swiss-based Georg Fischer (GF) Piping Systems: pipes, fittings, valves and welding tools made to work together and joined with the same welding method. Novus Energy supplies all GF+ Aquasystem components for projects worldwide, shipped from Istanbul.
