Novus Ø200 mm PP-R Manifold

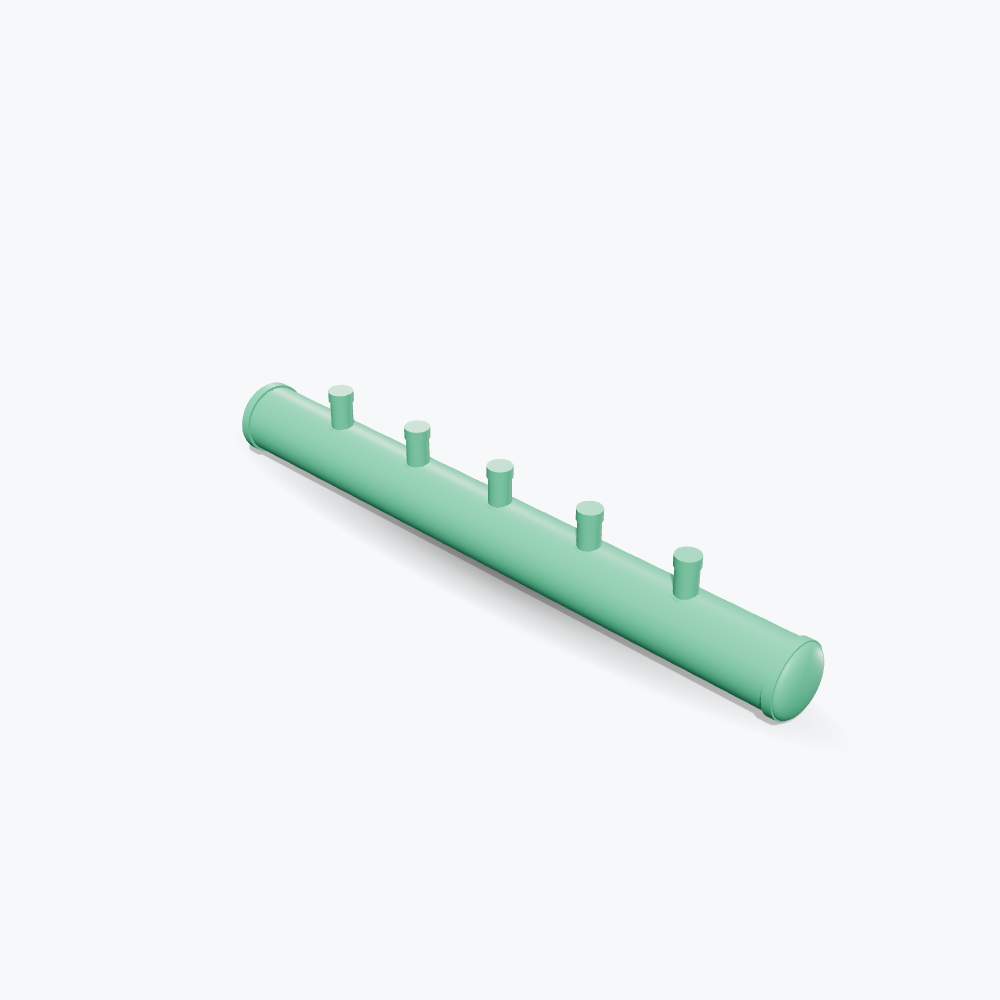

Ø200 mm PP-R Manifold is a PP-R (PPRC) manifold made from a Ø200 mm body with a 164 mm internal diameter, with a project-specific length and branch layout. At a water velocity of 1.0–1.5 m/s it is suitable for flow rates of 75.7 – 113.6 m³/h and, at ΔT = 20 K, a thermal output of 1.76 – 2.64 MW. Branch sizes, outlet directions and connection type are specified with the order.
Technical Specifications
| Specification | Value |
|---|---|
| Body size | Ø200 mm (SDR 11) |
| Approx. inner diameter | 164 mm |
| Recommended flow rate (v = 1.0 – 1.5 m/s) | 75,7 – 113,6 m³/h |
| Approx. thermal capacity (ΔT = 20 K) | 1.8 – 2.6 MW |
| Body length | Project-specific (to your drawing) |
| Branch sizes | 20 · 25 · 32 · 40 · 50 · 63 · 75 · 90 · 110 mm |
| Outlet connection | PP-R weld end (unthreaded), brass external thread, brass internal thread, union, flanged or with valve |
| Operating temperature | 70 °C continuous operation (80 °C short-term) |
| Pressure rating | PN 10 – PN 20 (depending on series and temperature) |
| Material | PP-R (PPRC) |
| Manufacturing | Novus Energy – custom-made for your project |
How does pricing work?
- The unit price is per 1 meter of manifold body (EUR, excl. VAT).
- Minimum order: 1 m; the length increases in 0.5 m steps. You set the length with the Length (m) option on the product page.
- 1 branch per 0.5 meter is included in the price — e.g., a 2 m body includes 4 branches free of charge. Additional branches are charged extra.
- Standard branches are supplied with a PP-R weld end and a male threaded adapter.
- Parts at extra charge: flanged outlet, pressure gauge and thermometer pockets, ball/butterfly valve, drain valve, strainer, support legs/brackets and insulation.
- Both ends of the body are closed with blind caps; the inlet connection is optional.
- For a longer body, a different branch layout or custom fabrication, you can request a quote via WhatsApp.
What capacity is a Ø200 mm manifold suitable for?
With a body inner diameter of 164 mm, the cross-sectional area is 0.0210 m². Using Q = A × v × 3600, the recommended flow rate is 75.7 – 113.6 m³/h; with P = Q × 1.163 × ΔT, the thermal capacity at ΔT = 20 K is 1.76 – 2.64 MW. If your heating circuit runs at ΔT 15 K, capacity drops by about one quarter.
Number of branches suitable for this body
The manifold body cross-section is selected to be at least 1.5 times the total cross-sectional area of the branches. For a Ø200 mm body, this rule gives the following upper limits:
| Branch size | Recommended max. quantity |
|---|---|
| Ø63 mm | 6 pcs |
| Ø75 mm | 4 pcs |
| Ø90 mm | 3 pcs |
| Ø110 mm | 2 pcs |
| Ø125 mm | 1 pc |
Values are based on the cross-section rule only; the exact number depends on the center-to-center spacing, valve/fitting width and body length.
Connection and end options
Outlets can be made as PP-R weld ends (unthreaded), brass external threads, brass internal threads, unions, flanges or valves; different types can be combined on the same body. The body ends are closed with blind plugs, dished caps, flanges, weld ends or threaded ends. Ball/butterfly valves, pressure gauge–thermometer pockets, drain valves, air vent connections, support legs and brackets are added on request.
Made to measure
For the Ø200 mm body, the length, number of branches and center-to-center spacing can be produced in any combination. When you select the dimensions in the manifold configurator, a dimensioned A4 technical drawing, a 3D model and a quote summary are generated instantly; you can also send your drawing via WhatsApp to get a price and lead time.
Related sizes: Ø160 mm PP-R manifold · Ø250 mm PP-R manifold · all PP-R manifold sizes · selection guide
Frequently asked questions
What capacity is a Ø200 mm manifold suitable for?
A Ø200 mm body is suitable for a flow rate of 75.7 – 113.6 m³/h at a water velocity of 1.0–1.5 m/s. Assuming ΔT = 20 K, this corresponds to approx. 1.76 – 2.64 MW of thermal output — roughly a heating plant for 220 apartments. At other ΔT values, capacity changes proportionally.
What is the price of the Ø200 mm PP-R Manifold?
The price is given per 1 meter of manifold body; minimum 1 m, in 0.5 m increments. One branch per 0.5 meter (PP-R weld end + male threaded adapter) is included in the price — a 2 m body includes 4 branches free of charge. Connections for parts such as flanges and pressure gauge and thermometer pockets are charged extra.
Do I specify the body length and number of branches myself?
Yes. Length, number/size of branches, outlet directions and center-to-center spacing are all made to your drawing. You can make your selections in the configurator and print an A4 technical drawing.
Last updated: September 20, 2026 · Prepared by: Novus Energy engineering team — manifold fabrication and metering systems. To verify dimensions and capacity, contact us via WhatsApp or at +90 216 642 42 66.
