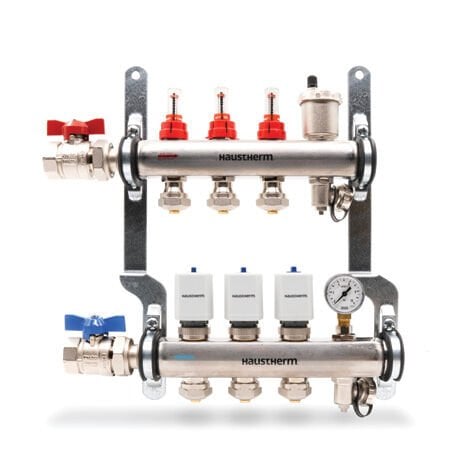

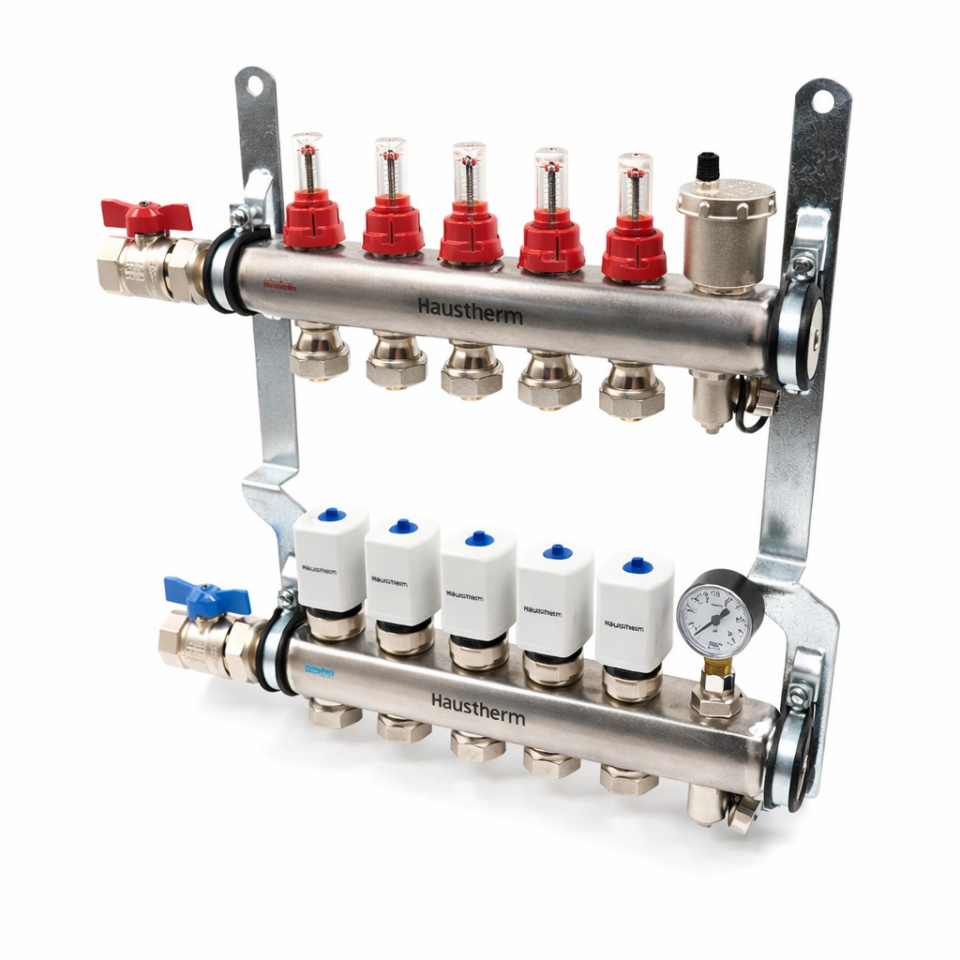

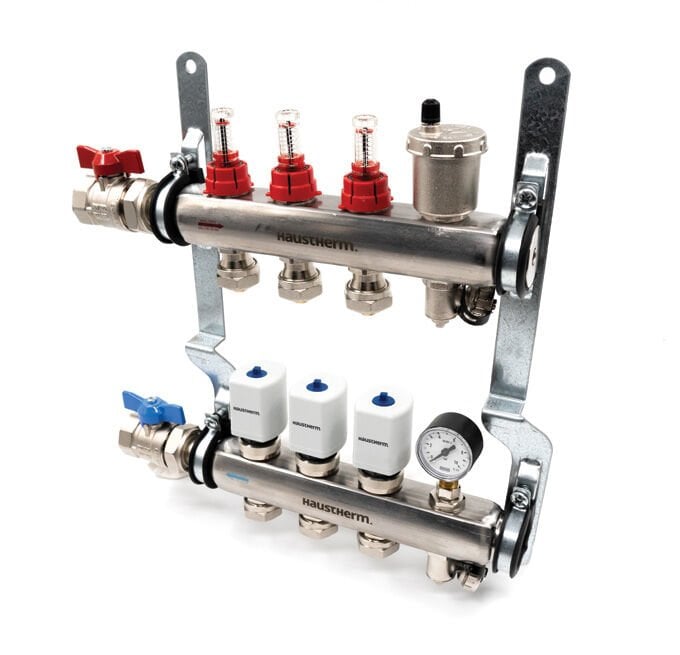

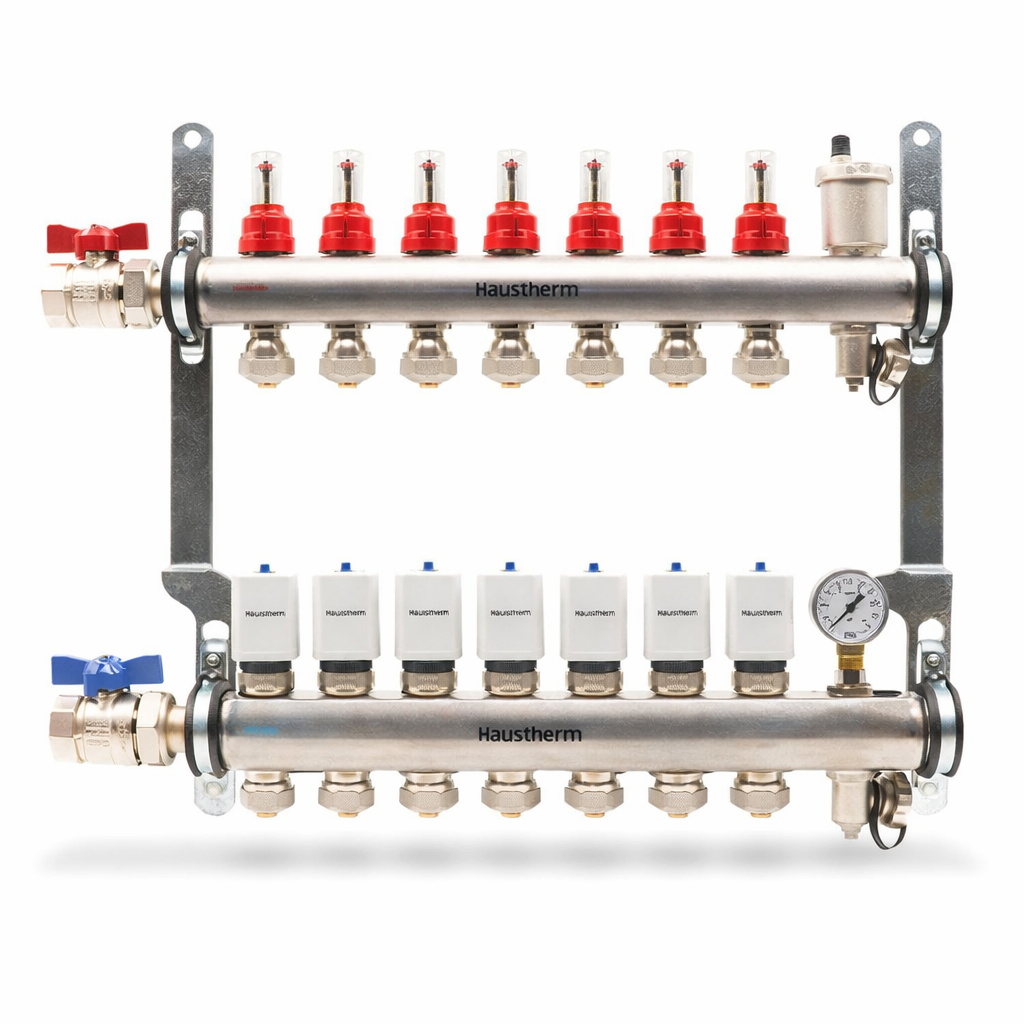

HausTherm Stainless Steel Manifold Set with Flow Meters
The Manifold Set with Flow Meters – Stainless Steel is a durable, high-performance solution designed for underfloor heating and multi-circuit heating systems. Its stainless steel body provides strong corrosion resistance and a long service life.
The integrated flow meters (flow indicators) on the manifold set allow each circuit to be measured and controlled individually. This optimizes system balance, increases energy efficiency and ensures each room receives just the heat it needs. The result is comfortable heat distribution and lower unnecessary energy costs.
- Material: Stainless steel body – high durability
- Flow meters: Flow measurement and control per circuit
- Integrated air vent: Removes air bubbles trapped in the system
- Pressure gauge: Monitors the system pressure
- Fill/drain valves: Easy maintenance and service
- Mounting support: Quick installation with brackets and clamp set
The manifold set with flow meters offers much higher performance than standard manifolds. Its stainless steel construction ensures a long service life in heating systems and superior corrosion resistance, reducing maintenance costs.
Thanks to the flow meters, the flow rate of each circuit can be adjusted precisely, providing even and balanced heat distribution, especially in underfloor heating systems. This increases energy efficiency and minimizes imbalances in the system.
In addition, the integrated air vent and pressure gauge optimize system performance and reduce maintenance needs in the long term. Especially in large, multi-circuit projects, a manifold set with flow meters raises your comfort level.

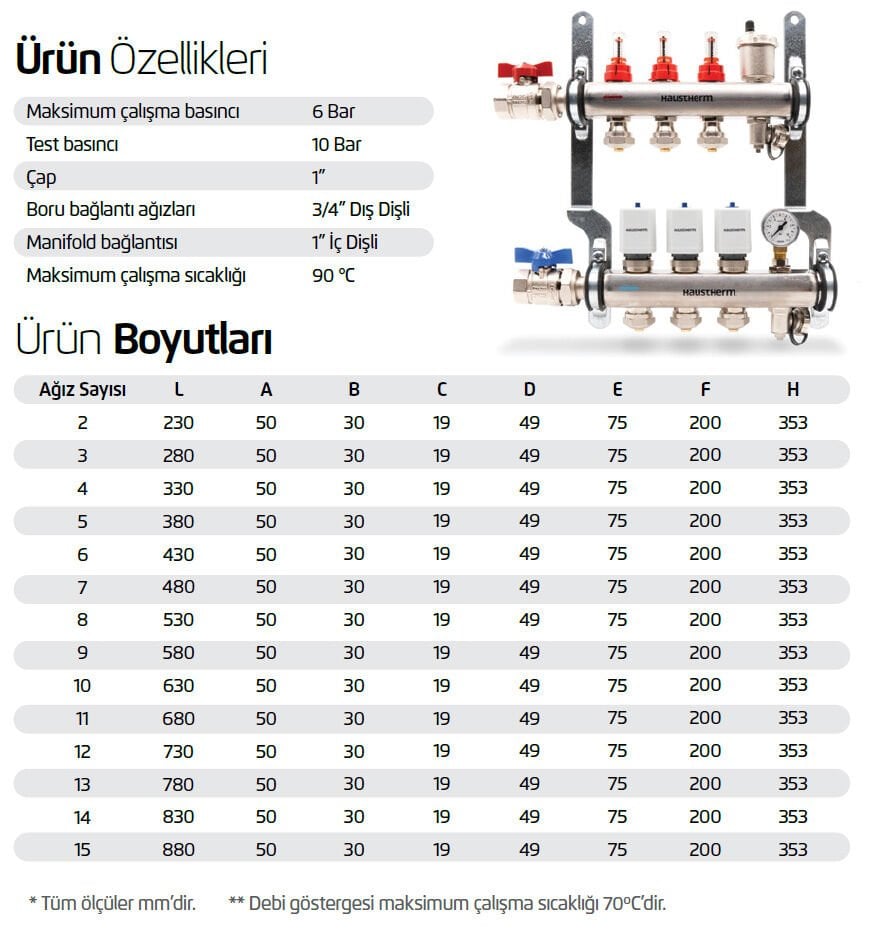

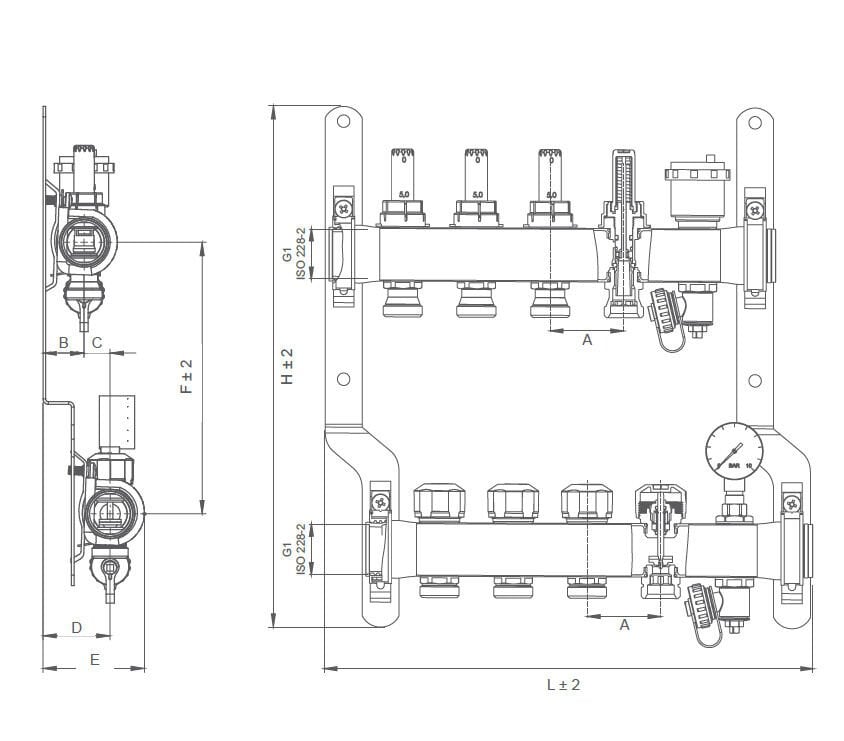

Technical Details
This manifold set has a stainless steel body and withstands high temperatures and pressures. The flow meters accurately measure the flow each line needs, ensuring perfect hydraulic balance in your system.
- Material: Grade 304 stainless steel
- Connections: Compatible with standard underfloor heating sizes
- Flow meter range: Separate flow monitoring on each outlet
- Pressure measurement: Pressure gauge for easy pressure monitoring
- Venting: Integrated air vent components
Discover the Stainless Steel Manifold Set with Flow Meters, offering maximum performance and energy efficiency for your underfloor heating or multi-circuit system.
