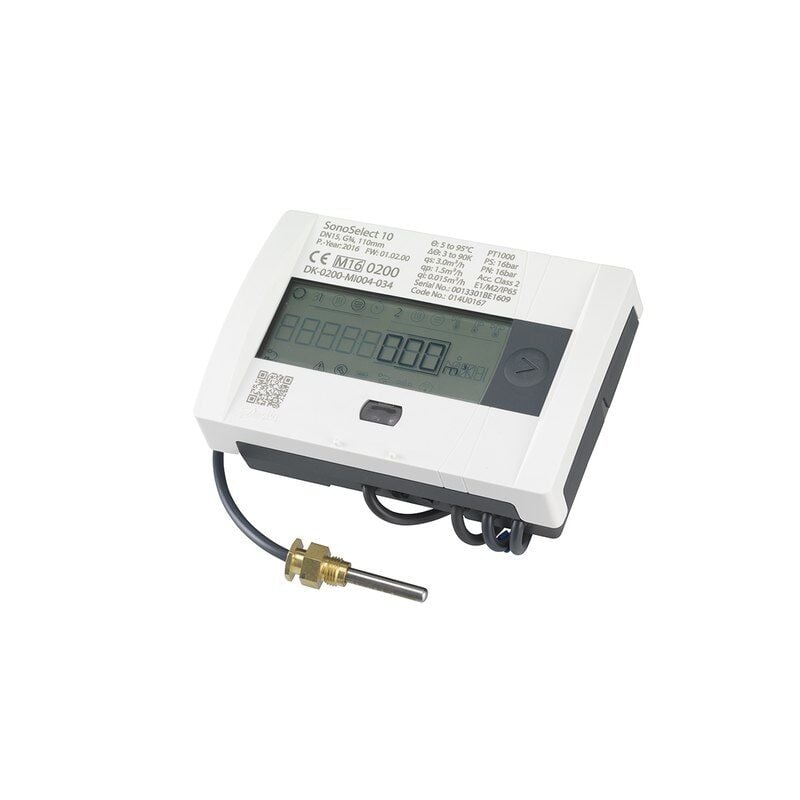

Danfoss SonoSelect DN15 Ultrasonic Heat Meter
014U1301, SonoSelect DN15 qp 1.5 m³/h, G¾" 110 mm, return-pipe mounting, with M-Bus module, for heating/cooling, 1 free sensor, Connection types: Threaded, Kvs: 3.87 m³/h, Medium temperature: 95 °C
This product is sold with options. Please make your selection below before adding it to the cart.
9.155,15₺ incl. VAT
excl. VAT: 7.629,29₺
Stock Code
DAN-SONOSELECT-DN15
Price
7.629,29 ₺ + VAT
Danfoss SonoSelect DN15 qp 1.5 m³/h, G¾" 110 mm, return-pipe mounting, with M-Bus module, for heating/cooling, 1 free sensor
SonoSelect DN15 qp 1.5 m³/h, G¾" 110 mm, return-pipe mounting, with M-Bus module, for heating/cooling, 1 free sensor. Heat meter for residential applications.
Technical Specifications
| Specification | Value |
|---|---|
| Net weight | 0.751 kg |
| Type | SonoSelect 10 |
| Flow measuring principle | Ultrasonic |
| Medium | Water quality: pH 7 to 9.5 |
| Medium temperature [°C] [Max.] | 95 °C |
| Medium temperature [°C] [Min.] | 5 °C |
| Material in contact with the medium | Brass sensor |
| Interface module slot 1 | No interface module |
| Description | heat meter for residential applications |
| Pressure, nominal [bar] | 25 bar |
| Connection size | G 3/4 |
| Connection types | Threaded |
| Supply voltage type | battery: 2 x AA cells |
| Storage temperature [°C] [Max.] | 60 °C |
| Storage temperature [°C] [Min.] | -25 °C |
| Commissioning Tool | SonoApp |
| Accuracy standard | EN1434 Class 2 |
| Display type | LCD |
| Energy unit | kWh (no decimal places) |
| Integrated communication | M-Bus |
| Temperature Difference Limits (Calculated) [K] [Max.] | 90 K |
| Temperature Difference Limits (Calculated) [K] [Min.] | 3 K |
| Housing color | RAL 9010 White |
| Daily Log Storage Interval [Months] | 1 month |
| Daily Log Storage Period [Months] | 24 months |
| Calculator unit protection class | IP65 |
| Cable length between calculator unit and flow sensor [m] | 1.5 m |
| Cable insulation material | PUR |
Danfoss products are backed by Novus Energy; for product selection, projects and bulk orders, engineering support is available via WhatsApp or phone. Technical values are compiled from manufacturer data; refer to the product datasheet for final selection.
