Trakya Döküm Tee
Trakya Döküm Tee (T)
Trakya Döküm tees are high-strength "T"-shaped fittings used to split a main line into two or to join two lines into one. Offering a three-way connection, these fittings are the basic building blocks of branch points in installation projects.
Technical Specifications
-
Material: Black-heart malleable cast iron, grade EN-GJMB-350-10.
-
Manufacturing Standard: EN 10242, Design Symbol A.
-
Thread Design: Precision threads conforming to ISO 7-1 (R/Rp), ensuring leak-tight sealing.
-
Pressure Rating: PN 25 (25 bar) operating pressure capacity.
-

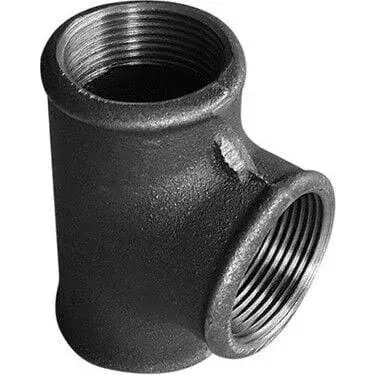

Surface Options: * Black: Oiled raw casting.
-

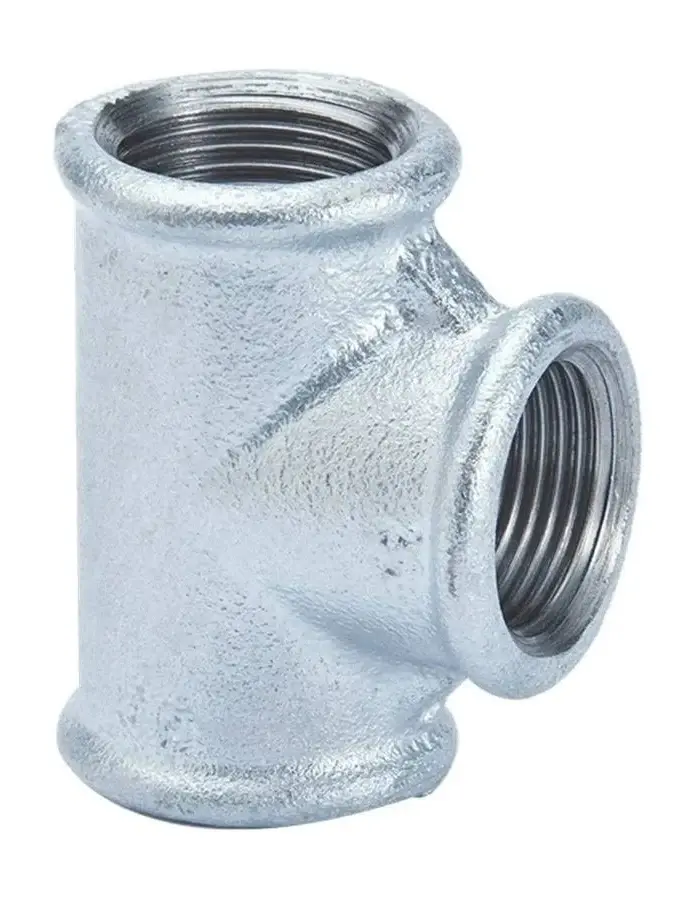

Galvanized: Corrosion-resistant hot-dip galvanized coating.
-
Benefits
-
High Strength: The malleablizing (tempering) process eliminates the brittleness of the casting; it offers maximum resistance to high pressure, impact and vibration.
-
Trouble-Free Installation: Precision-machined internal threads minimize problems such as misalignment or cross-threading during installation.
-
Long Service Life: With standard-compliant wall thickness and material quality, it offers safe use throughout the life of the installation.
Applications
-
Natural gas and LPG distribution lines.
-
Fire sprinkler and hydrant systems.
-
Plumbing, heating and cooling systems.
-
Industrial compressed air and oil lines.
Types
-
Equal Tee: For standard connections where all three outlets are the same size.
-
Reducing Tee: For reducing connections where the branch outlet is smaller than the main line.
Info: All standard sizes (1/2" - 4") and reducing versions are available. Contact us for bulk orders and technical details.
