Street Elbow (Male/Female)
Trakya Döküm Street Elbow
Trakya Döküm street elbows are special fittings that change direction in pipelines, with one end internally threaded (female) and the other end externally threaded (male). Because they can be connected directly to equipment or other fittings without an additional nipple, they save space and time during installation.
Technical Specifications
-
Material: Black-heart malleable cast iron, grade EN-GJMB-350-10.
-
Manufacturing Standard: EN 10242, Design Symbol A.
-
Thread Design: Precision threads conforming to ISO 7-1 (R/Rp), ensuring leak-tight sealing.
-
Pressure Rating: PN 25 (25 bar) operating pressure capacity.
-

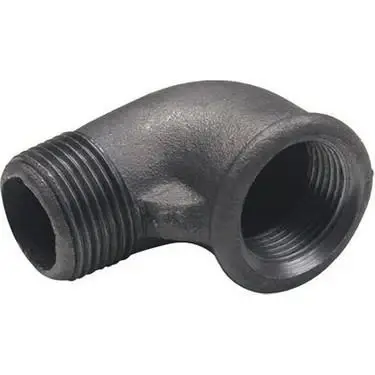

Surface Options: * Black: Oiled raw casting.
-

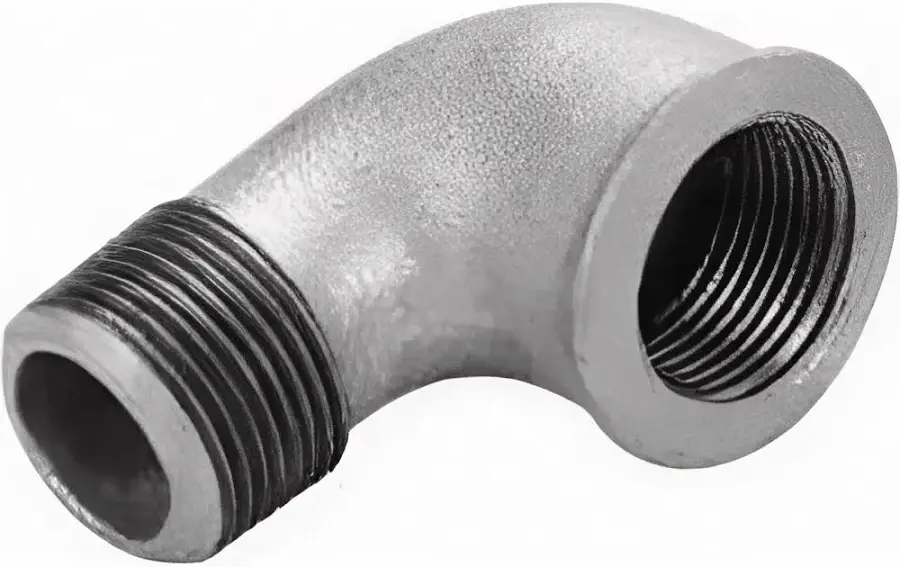

Galvanized: Corrosion-resistant hot-dip galvanized coating.
-
Benefits
-
Compact Installation: The male-female street design reduces the need for extra fittings in tight spaces and allows direct connection.
-
High Strength: Thanks to the tempering process, brittleness is low; it offers high resistance to impact, vibration and high pressure.
-
Smooth Flow: The quality of the inner surface minimizes turbulence and pressure loss.
Applications
-
Combi boiler, valve and radiator connections.
-
Natural gas and LPG installations.
-
Fire suppression and sprinkler systems.
-
Industrial air and steam lines.
Types
-
90° Street Elbow: For right-angle turns and connections.
-
45° Street Elbow: For acute-angle transitions and offset connections.
Note: All standard sizes (1/2" - 4") are available. Contact us for product selection and engineering support.
