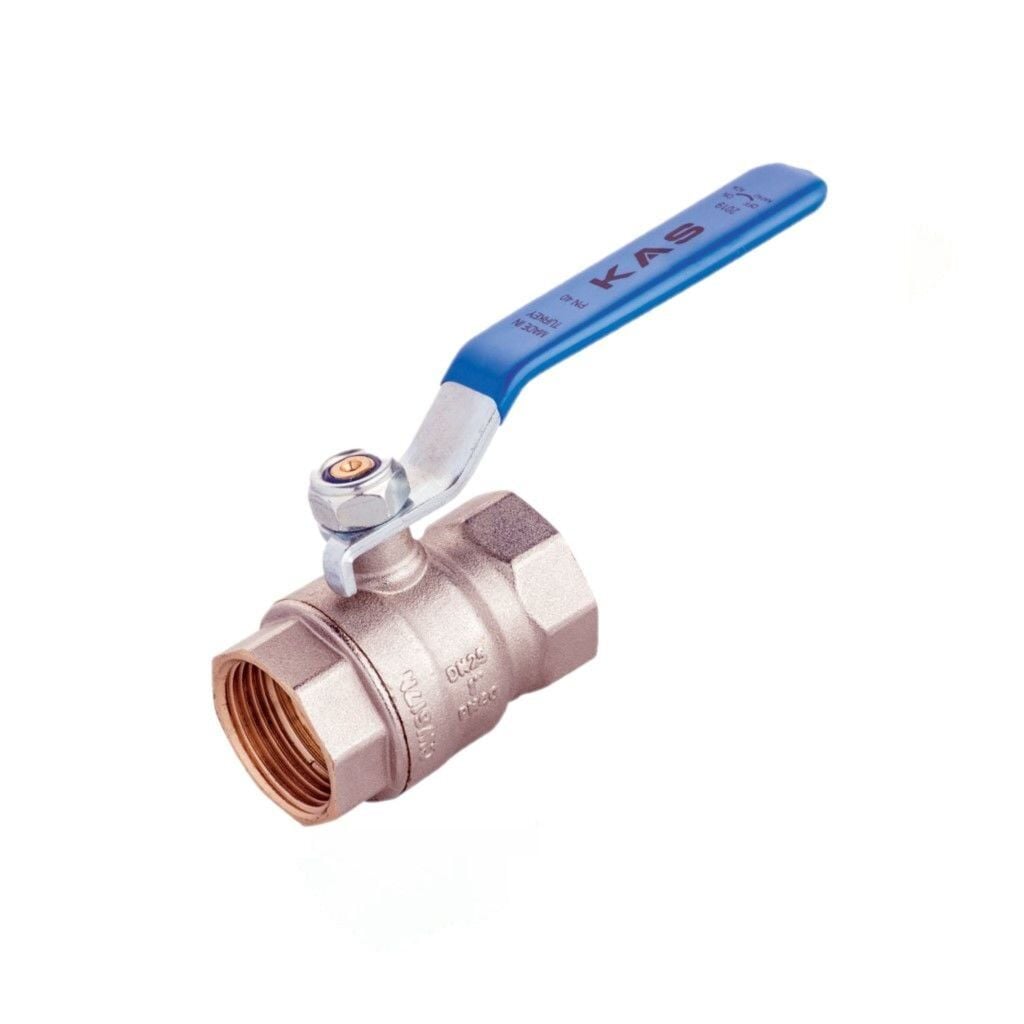

KAS PN40 Water Ball Valve
KAS - PN40 Ball Valve for Water
The PN40 water ball valve is a quarter-turn valve that uses a hollow, rotating ball to control the flow through it. It is open when the ball's bore is in line with the flow and closed when it is rotated 90 degrees by the valve handle. The handle lies in line with the flow when open and is perpendicular to it when closed, giving visual confirmation of the valve's position.
KAS PN40 water ball valves are long-lasting; even after years of use and many operating cycles they perform well and remain reliable. These qualities make them a frequent choice and an excellent option for shut-off and control applications.
Butterfly-Handle PN40 Water Ball Valve Features
- TS CEN/EN 331/A1 approval from the Turkish Standards Institution (TSE).
- ISO 9001 Quality Management System certificate.
- PN 40 operating pressure.
- Full bore for maximum flow.
- Chrome-plated ball for a longer service life.
- ISO 228 female x female connection.
- PTFE seals and EPDM O-ring for maximum safety.
- Wide range of uses in water and industrial systems.
- Steel handle with thick PVC coating.
- Temperature -10°C to +120°C
| PRODUCT CODE | PRODUCT NAME | CARTON QTY | UNIT PRICE |
|---|---|---|---|
| 08.09.530 | KAS - 1/2" | 100 pcs | Price on request |
| 08.09.531 | KAS - 3/4" | 80 pcs | P |
| 08.09.452 | KAS - 1" | 40 pcs | Price on request |
Water Ball Valve PN 40
Producing an economical model of the valve known as the water ball valve, KAS continually develops special products for its customers.
The manufacturer, active in the industry for many years, carries out R&D work to expand its product range.
With its economy water ball valve model, KAS develops market-leading products without compromising on quality.
Where Are Ball Valves Used?
It is used at water meters at building entrances, under combi boilers in homes and on water connection lines.
The economy model of the water ball valve offers a more economical solution.
