Haustherm Underfloor Heating Pump Mixing Unit F36 (20–50 °C, Pump Included)
Thermostatically controlled · 20–50 °C · 6 bar · Wilo PARA 15/6-43 pump included · with bypass line
27.863,49₺ incl. VAT
excl. VAT: 23.219,57₺

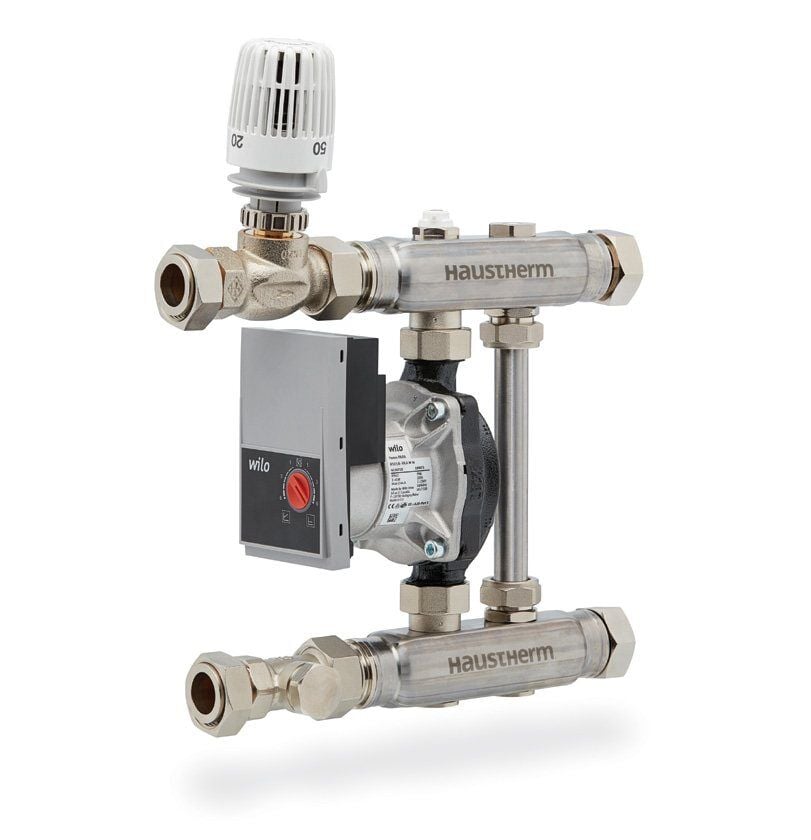

Haustherm Pump Mixing Station (F36)
Ready-to-install mixing group that lowers the high-temperature water from the boiler/heat pump outlet to a temperature suitable for underfloor heating and provides a constant flow temperature. Thanks to the integrated bypass line, the pump operates safely even when all circuits are closed.
Technical specifications
| Specification | Value |
|---|---|
| Flow temperature control range | 20–50 °C |
| Max. operating temperature | 0–80 °C |
| Max. ambient temperature | 0–40 °C |
| Max. operating pressure | 6 bar |
| Capacity | Approx. 14 kW |
| Pump | Wilo PARA 15/6-43/SC 130 |
| Power supply | 230 V – 50 Hz |
| Body material | CW617N brass |
| Seal | EPDM |

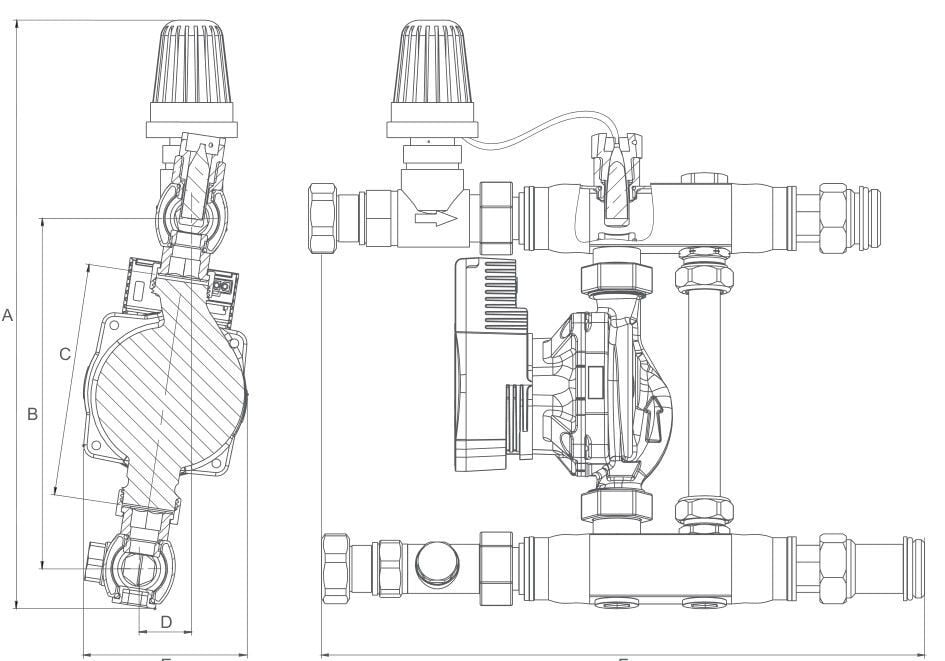

| Dimensions | A 337 · B 197 · C 130 · D 29 · E 93 · F 340 mm |
