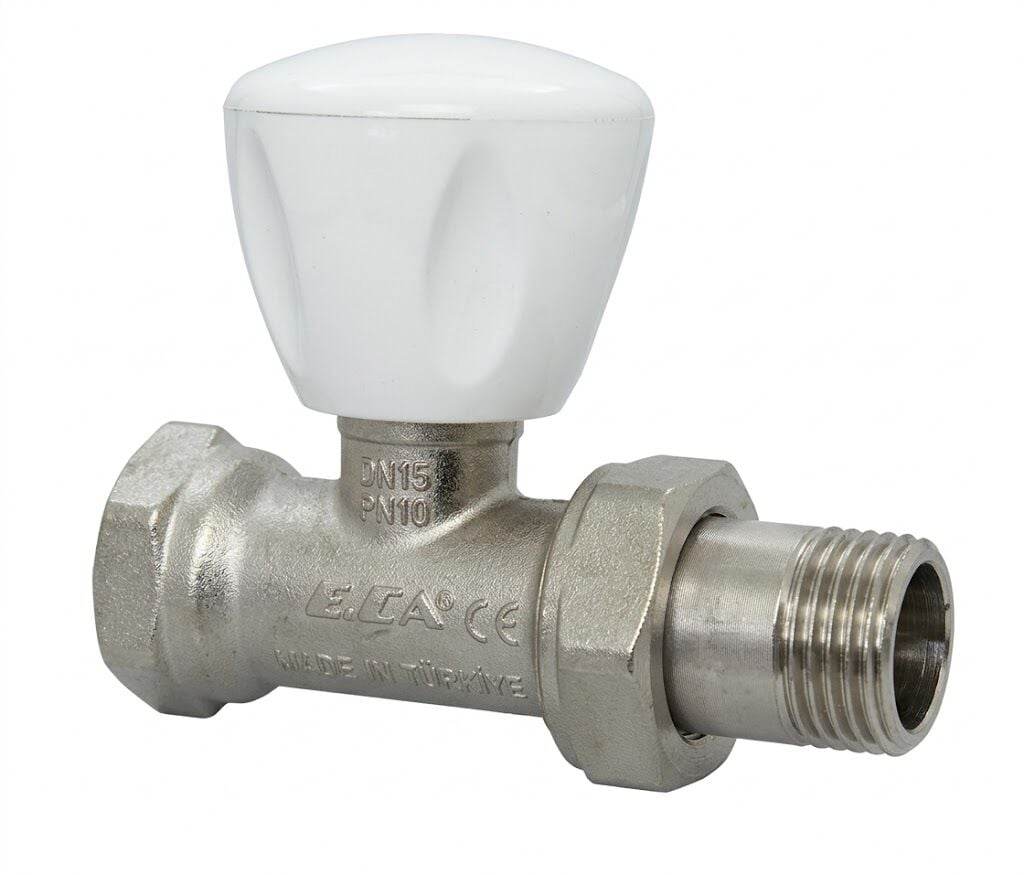

ECA Radiator Valve, Straight, 1/2″
E.C.A. 1/2" Straight Radiator Valve (Standard)
A byword for reliability in heating systems, the E.C.A. straight radiator valve is designed to manually control water flow at radiator and towel radiator inlets. Its straight body makes it the ideal solution for systems where the pipework connects to the radiator in a straight line.
Technical Specifications
-
Model: Standard straight type
-
Connection Size: 1/2" (DN15)
-
Body Material: MS 58 Pressed Brass (matte chrome-plated)
-
Handwheel type: Heat- and impact-resistant white plastic head
-
Nominal Pressure: PN 10 (10 bar)
-
Maximum temperature: 120 °C
-
Sealing: Double O-ring and special gasket design
-
Standard: Compliant with TS 579 and TS EN 215
Key Features
-
Compact, Stylish Design: Its minimalist shape and matte chrome surface blend in nicely with your radiator.
-
High Durability: The MS 58 brass body and superior chrome plating provide maximum resistance to corrosion, limescale and the abrasive effects of water.
-
Reliable Sealing: The double O-ring system in the internal mechanism ensures years of operation with no risk of dripping or leaks.
-
Precise Adjustment: Lets you fine-tune the heat output, helping you keep the room at your preferred comfort level and save energy.
-
Easy Installation: Its standard thread and radiator union connection allow quick, easy installation.
Applications
Used as the main control element on panel radiator, cast iron radiator and towel radiator connections where the pipework reaches the radiator in a straight line from the wall or floor.
