ECA Radiator Valve, PEX Straight, 1/2″
Below is the technical product description of the E.C.A. 1/2" PEX Straight Radiator Valve (RV3):

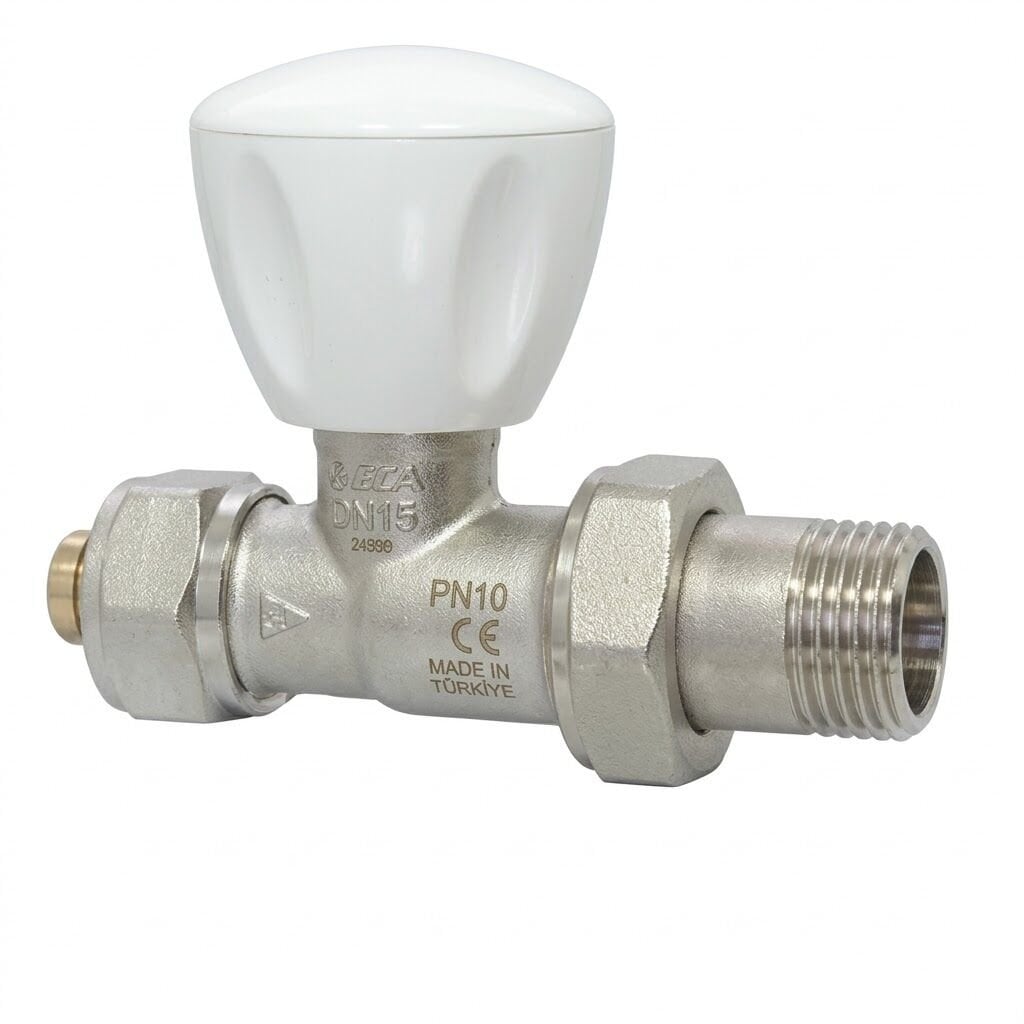

E.C.A. 1/2" PEX Straight Radiator Valve (RV3)
E.C.A. RV3 series PEX straight radiator valves are designed for systems where the pipework reaches the radiator in a straight line from the floor or the wall. Directly compatible with PEX-B pipe connections, they offer a safe and neat solution for modern manifold (home-run) piping systems.
Technical Specifications
-
Model: RV3
-
Connection Type: PEX straight (compatible with plastic pipe)
-
Size: 1/2" (DN15)
-
Body Material: MS 58 pressed brass (matte chrome plated)
-
Maximum Operating Pressure: 10 bar (PN 10)
-
Maximum Operating Temperature: 120 °C
-
Handwheel: White acrylic, resistant to heat and impact
-
Standard: TS 579 and TS EN 215 approved
Key Features
-
Direct PEX Connection: The union design, fully compatible with sleeved pipe systems distributed from the floor (PEX-B), allows quick installation without extra nipples.
-
Compact and Elegant Body: The minimalist design of the RV3 series gives radiator connections a more modern and compact look.
-
Superior Sealing: The double O-ring on the stem and special internal seals minimize the risk of weeping or leakage throughout the life of the installation.
-
Corrosion Resistance: The high-quality matte chrome plating provides maximum protection against the corrosive effects of system water.
-
Precise Control: The ergonomic handwheel precisely adjusts the amount of water entering the radiator, providing energy savings and ideal room comfort.
Applications
Used in all residential and commercial spaces with floor-routed or manifold piping where the pipe outlets are in line with the radiator inlets (straight line).
