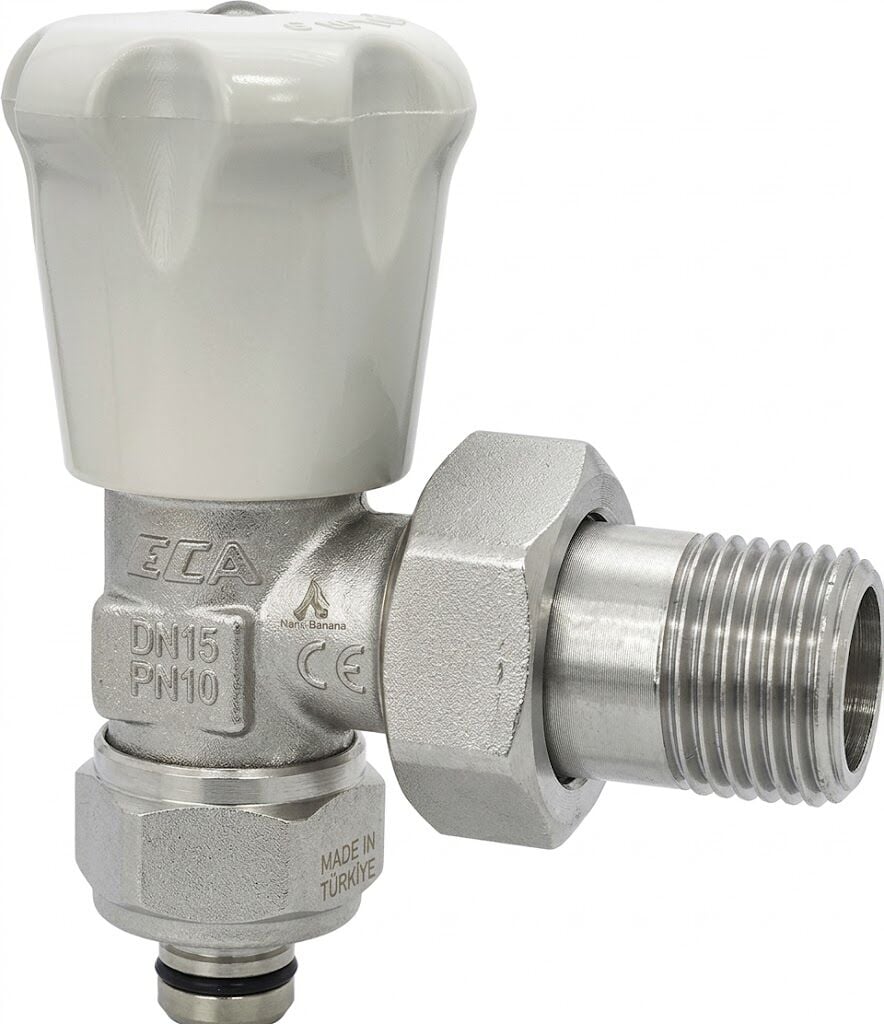

ECA Radiator Valve, PEX Angle, 1/2″
E.C.A. 1/2" PEX Angle Radiator Valve (RV2)
E.C.A. RV2 series angle radiator valves are manufactured to provide fluid control in heating systems to the highest sealing standards. Suitable for PEX pipe connection, they allow safe and practical installation in manifold piping systems.
Technical Specifications
-
Model: RV2 (manual type)
-
Connection Type: PEX angle
-
Size: 1/2" (DN15)
-
Body Material: MS 58 brass (matte chrome plated)
-
Operating Pressure: PN 10 (10 bar)
-
Operating Temperature: Maximum 120 °C
-
Finish: Matte chrome (corrosion resistant)
-
Standard: Conforms to TS 579
Product Features and Benefits
-
Precise Control: Thanks to the fine thread of its internal mechanism, the RV2 series lets you set the amount of water entering the radiator exactly where you want it.
-
PEX System Compatibility: Its union design, fully compatible with sleeved pipe systems distributed from the floor (PEX-B), requires no extra adapter.
-
Durable Handwheel: The white plastic cap, resistant to heat and impact, provides a comfortable grip even after long-term use.
-
Leak-Tightness: The quality seal and O-ring set eliminates the risk of water leaking from the stem.
Applications
Used in heating systems of residential and commercial buildings, at the PEX pipe connection points of panel radiators, towel radiators and cast-iron radiators.
