ECA PN25 Butterfly-Handle Ball Valve, Female × Female

ECA PN25 Ball Valve - Butterfly Handle (Internal - Internal Thread)

Designed for safe flow control in high-pressure systems, the ECA PN25 series has internal threads on both ends for direct connection between pipe runs. Its PN25 nominal pressure rating maximizes system safety.

Technical Specifications

• Pressure rating: PN25 (25 bar working pressure).

• Connection type: Internal thread on both ends (female x female) – to ISO 228-1.

• Body: High-quality brass with corrosion-resistant nickel plating.

• Sealing: PTFE (Teflon) ball seats and a seal set resistant to high temperatures.

• Temperature range: Suitable for media temperatures from -20 °C to +120 °C.

• Bore: The full-bore design minimizes friction loss and noise.

Benefits

• Compact Design: The butterfly handle allows easy operation in tight spaces such as service cabinets and manifold assemblies.

• High Strength: Safe for use at building main inlets and in high-pressure floor stations.

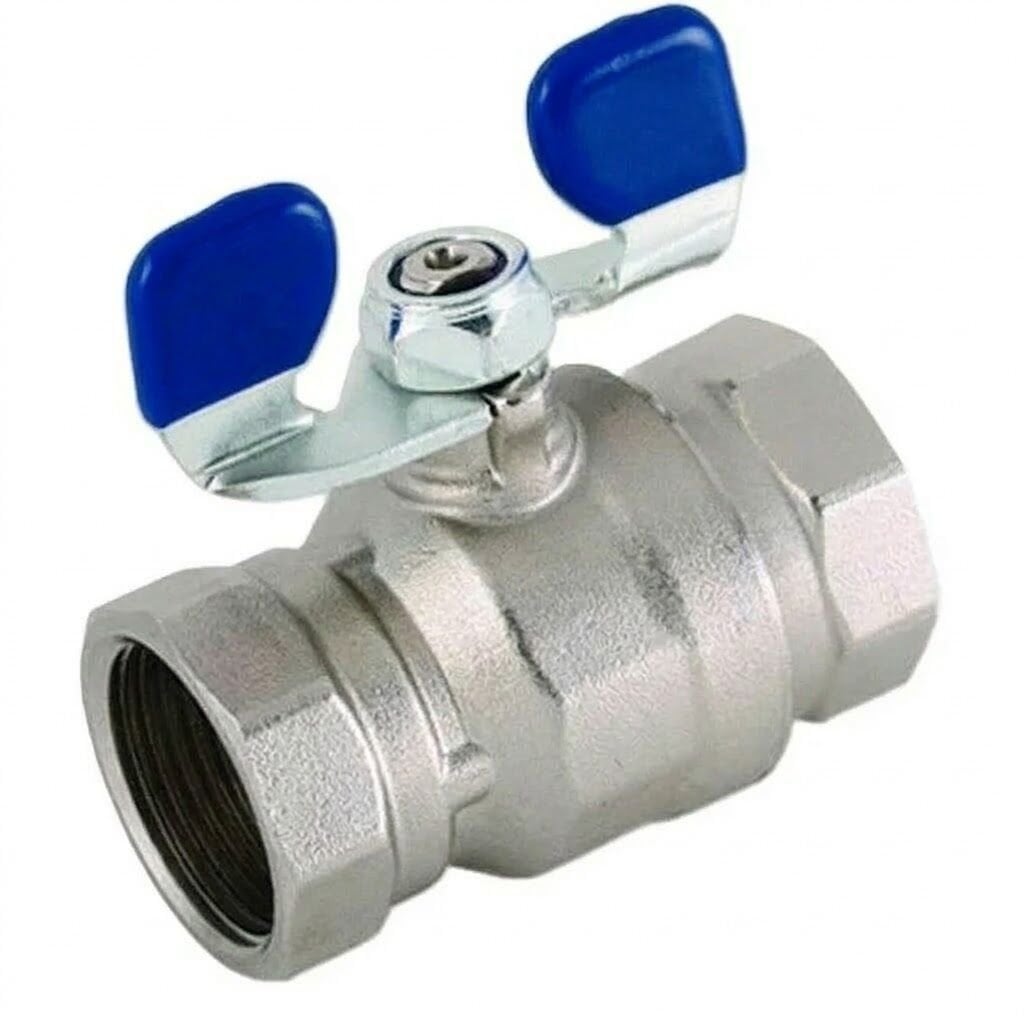

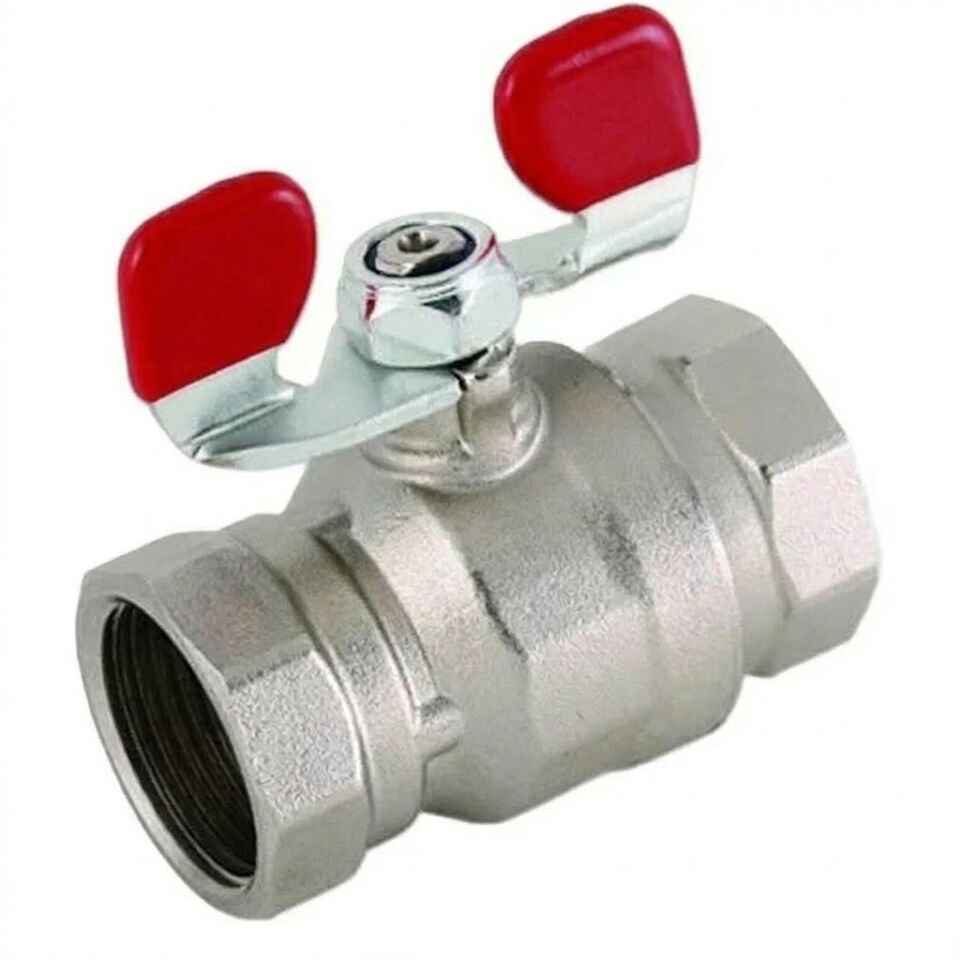

• Color-Coded Control: Red (hot) or blue (cold) handle options to suit the line.

Applications

• Individual and central heating systems.

• Industrial pressurized water and air lines.

• Mains water inlets and in-building distribution pipework.
