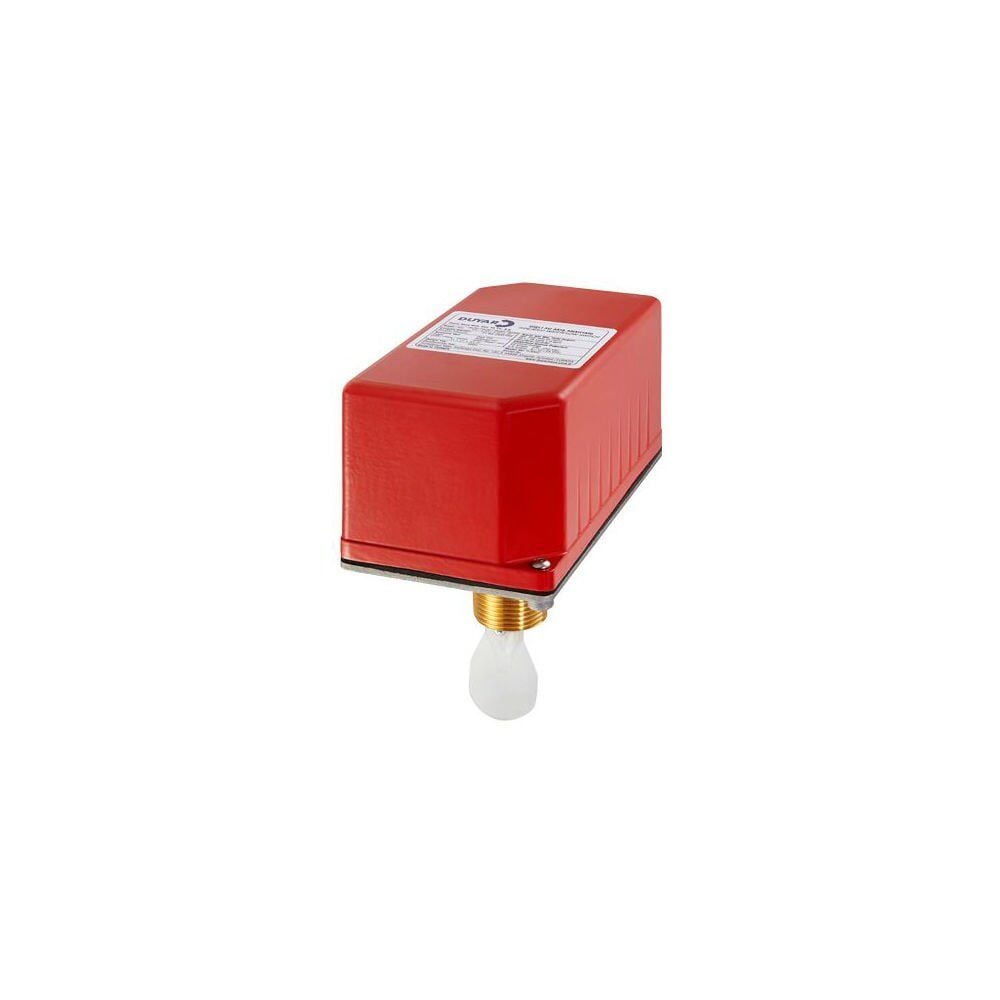

Duyar Threaded Flow Switch
threaded connection · Fire Valves · DUYAR product
7.291,08₺ incl. VAT
excl. VAT: 6.075,90₺
Threaded Flow Switch
Threaded Flow Switch
General Specifications
Max. Pressure Rating: 21 bar (300 PSI)
Operating Temperature: 4.5˚C - 50˚C (40˚F - 120˚F)
Triggering Flow Rate: Min. 10 USgal/min 38 L/min
Compatible Pipe Fittings: Threaded iron & brass tee
Contact Ratings: 10.0A 125/250 VAC - 2.5A 6/ 12/ 24 VDC
The threaded water flow switch is designed for use in wet sprinkler systems with pipe sizes of 1 “(25mm), 1 ¼ ” (32mm), 1 ½ (38mm) or 2” (50mm); it is a paddle-
type water flow switch. The unit can also be used as a sectional water flow detector in large systems. The unit contains two single-pole, double-throw snap-action
switches and an adjustable, instantly recycling pneumatic retard. The flow switch can be mounted in a horizontal or vertical position.
The threaded water flow switch is a paddle type water flow switch for use in wet sprinkler systems using pipe sizes of 1 “(25mm), 1 ¼ ” (32mm),
1 ½ (38mm) or 2” (50mm). The unit can also be used as a sectional water flow detector in large systems. The flow switch can be mounted
in a vertical or horizontal position.
