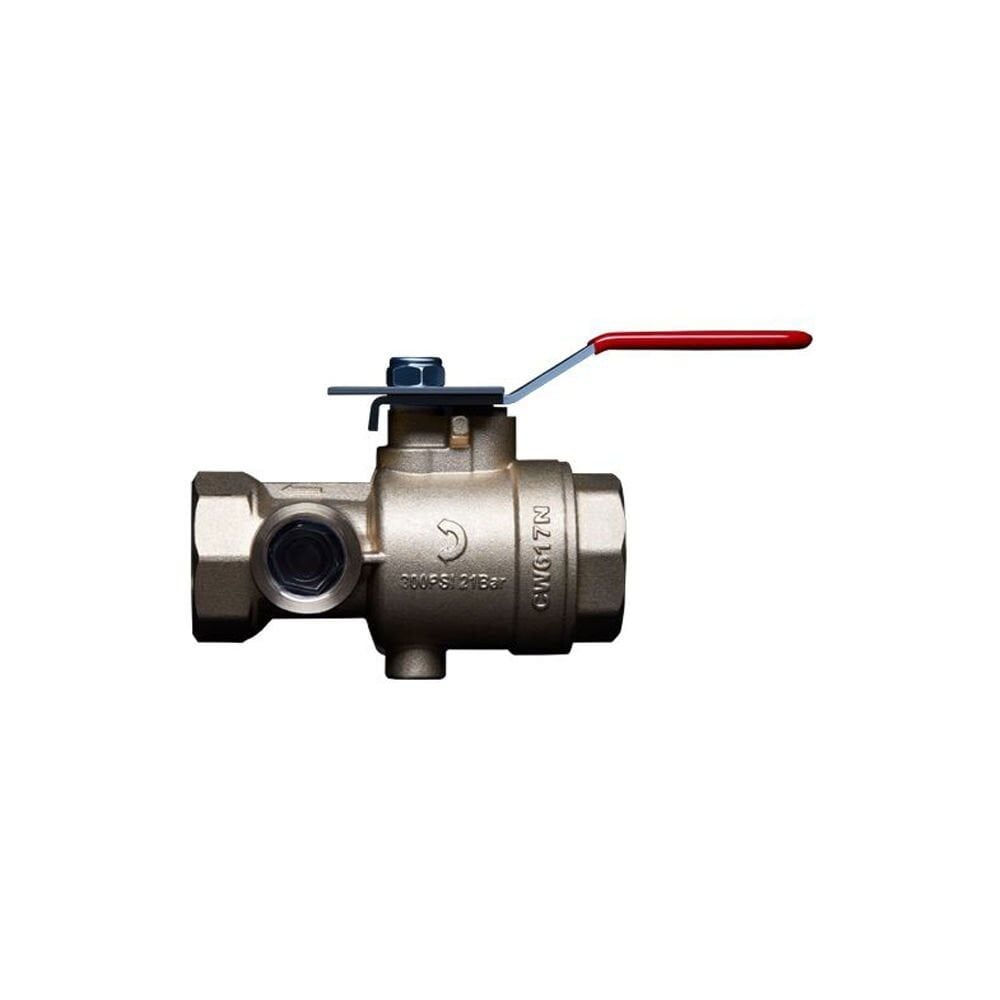

Duyar Test & Drain Valve K-8.0 (115), 17/32″ Orifice

Test & Drain Valve K 8.0 (115)

Y-4031

General Specifications

Dimensions: 1” - 2”/DN25 – DN50

Orifice Diameter: K-5.6, K-8.0, K11.2, K-14.0

Nominal Pressure: 300 psi (20.6 bar)

Working Temperature: -10˚C/+120˚C

Standards

Certificates: UL*, FM*

Design: FM 1625-2009, UL258-2004

Thread Design: ISO 228/1, NPT, NPS, BSP

Tests: FM 1625-2009, UL258-2004

 These valves are used to carry out testing and maintenance on sprinkler systems. Thanks to the orifice inside, available in different sizes, they create a flow equal to the flow through just one

sprinkler, allowing the alarm devices on the lines to be tested for the case of a single sprinkler water flow.

The orifice diameters of the smallest sprinkler in the system and of the test and drain valve must be equal. By changing the valve position, they can also be used as a drain valve to

empty the water in the pipes. A sight glass allows the flow to be observed.

 The test and drain valve is used to carry out testing and maintenance on sprinkler systems. Thanks to its orifice, available in different sizes, it creates a flow equivalent to the flow through a single sprinkler and enables the alarm devices on the lines to be tested for the case of a sprinkler water flow. The orifice diameters of the smallest sprinkler and the test and drain valve in the system should be equal. By changing the valve position, it can also be used as a drain valve to discharge the water in the piping. It includes a sight glass to observe the flow.
