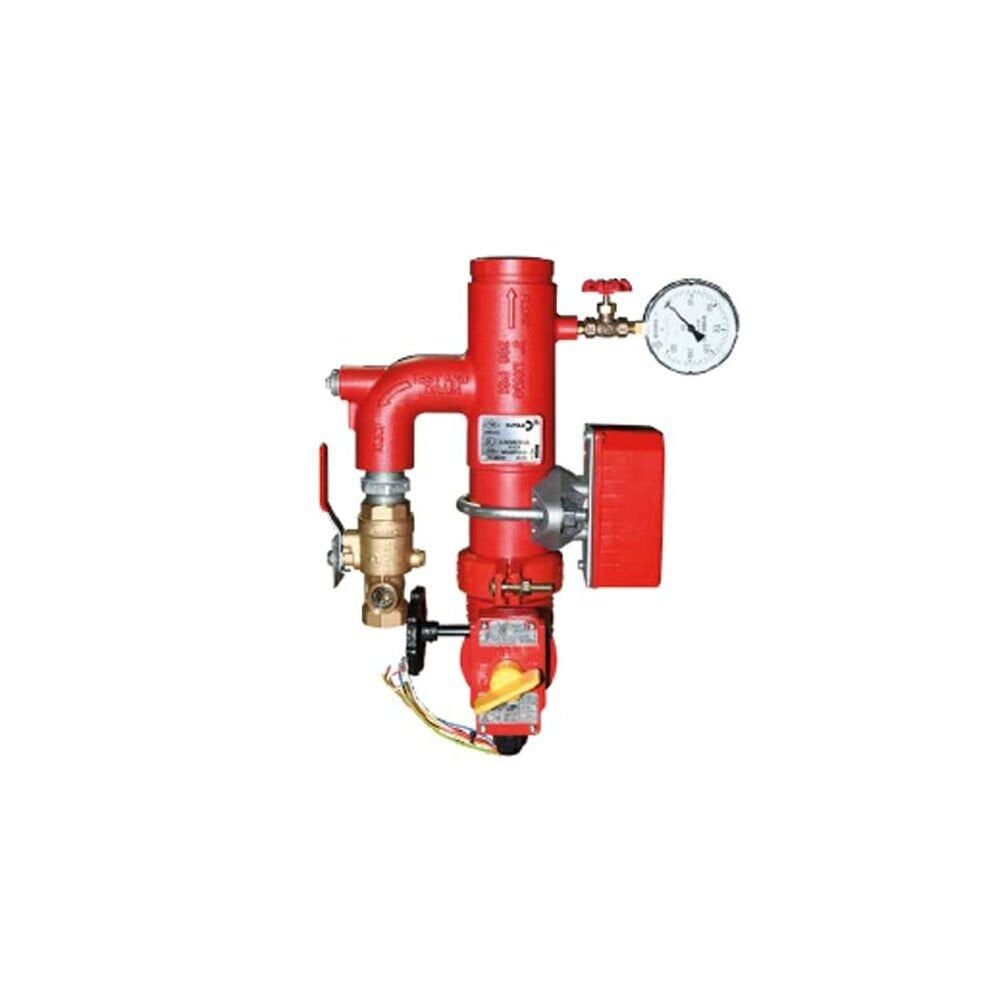

Duyar Riser Manifold with Grooved Butterfly Valve

Grooved Butterfly Valve Riser Manifold Assembly

Butterfly Valve Assembled Commercial Riser Manifold

Y-4075

General Specifications

Working Pressure: 21 Bar - 300 Psi

Finish: Red Painted

Test Orifice: K5.6, K8.0

Connection Type: Grooved x Grooved

 /Horizontal or Vertical is possible

 The flow direction is marked on the riser manifold body. The grooved ends allow fast and easy installation with grooved couplings.

The EPDM seals on the indicating butterfly valve provide excellent sealing. In product testing, the riser manifold and indicating butterfly valve successfully passed 84 bar body strength and 42 bar disc strength and leak tests; leak tests have also been completed in the assembled condition.The indicating gearbox on the butterfly valve shows how far the valve is open.

A flow signal is provided by the flow switch on the riser manifold. Its combined design makes installation quick and easy.

 The flow direction is marked on the riser manifold body. The grooved ends allow fast and easy installation with grooved couplings

The EPDM seals on the indicating butterfly valve provide excellent sealing. In product testing, the riser manifold and indicating butterfly valve successfully passed 84 bar body strength, 42 bar disc strength and leak tests, and leak tests have also been completed in the assembled condition.With the indicating gearbox on the indicating butterfly valve, the opening of the butterfly valve can be monitored.A flow signal is provided by the flow switch on the riser manifold. Its combined design makes installation quick and easy.
