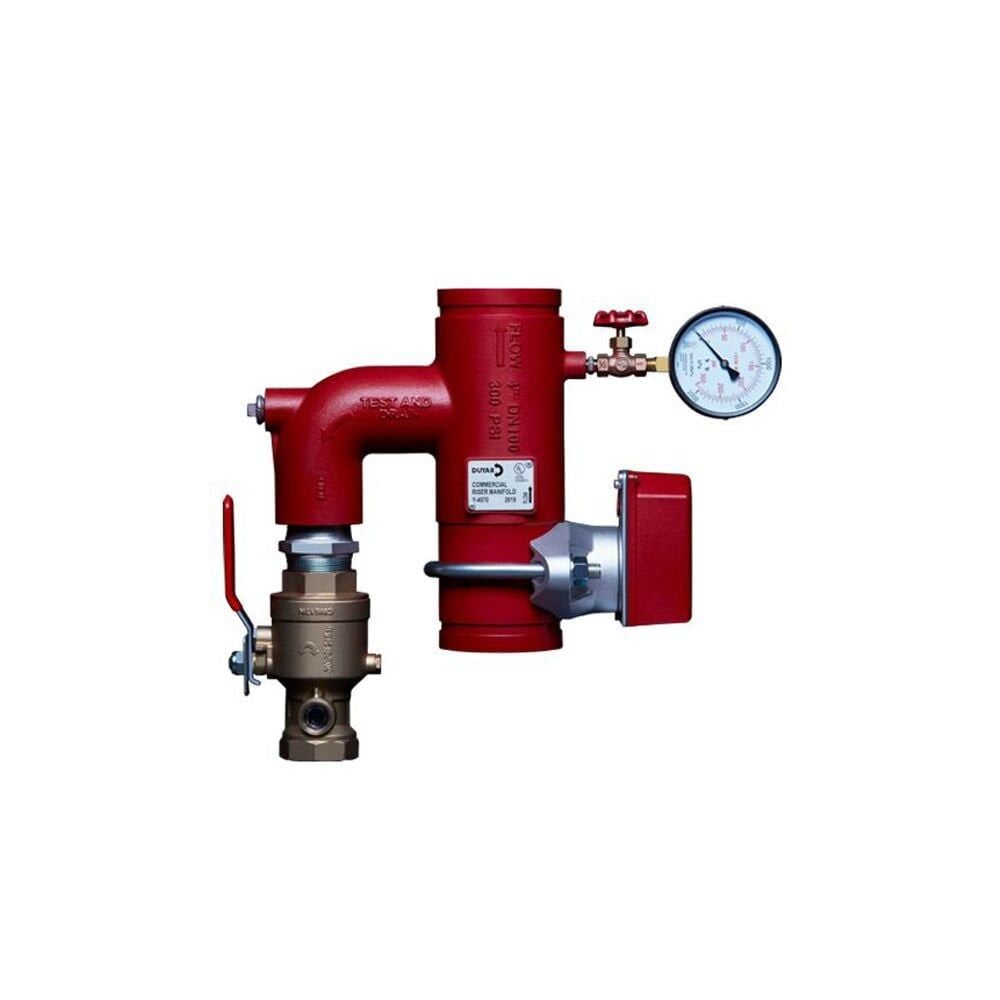

Duyar Riser Manifold, Easy Installation Unit

Riser Manifold (Easy Installation Unit)

Commercial Riser Manifold

Y-4070

All Equipment Used on the 300 PSI Grooved Product Is UL or FM Approved

General Specifications

Working Pressure: 21 Bar - 300 Psi

Finish: Red Wet Painted

Test Orifice: K5.6, K8.0

Connection Type: Grooved x Grooved

 /Horizontal or Vertical is possible

The standard version of the riser manifold does not include a relief valve. It can be fitted later if needed.

 * Originally, the commercial riser manifold is produced without a relief valve. If needed, it can be attached later.

The Duyar riser manifold (Easy Installation Unit) is designed in accordance with NFPA requirements  to speed up installation in wet sprinkler systems.

In case of fire, the flow switch generates a signal due to the flow in the system and sends it to the control panel or an electric bell,

indicating the floor, zone or branch where the fire has occurred. Thanks to the orifice of its test and drain valve,

the sprinkler system can be tested instantly and the installation drained. The riser manifold consists of a flow switch, a three-way pressure gauge valve,

a pressure gauge and a suitable test and drain valve.

 The Duyar commercial riser manifold has been designed to expedite installations in wet sprinkler systems in accordance with NFPA requirements.

A flow switch creates a signal in case of fire as a result of an incoming flow. It sends this signal to a control board or an electric bell to indicate

the floor, zone, or branch of the building that is on fire. The sprinkler system can be instantly tested and drained via the orifice of its test and

drain valves. The commercial riser manifold consists of a flow switch, a three-way gauge valve, a pressure gauge, and a convenient test and

drain valve.
