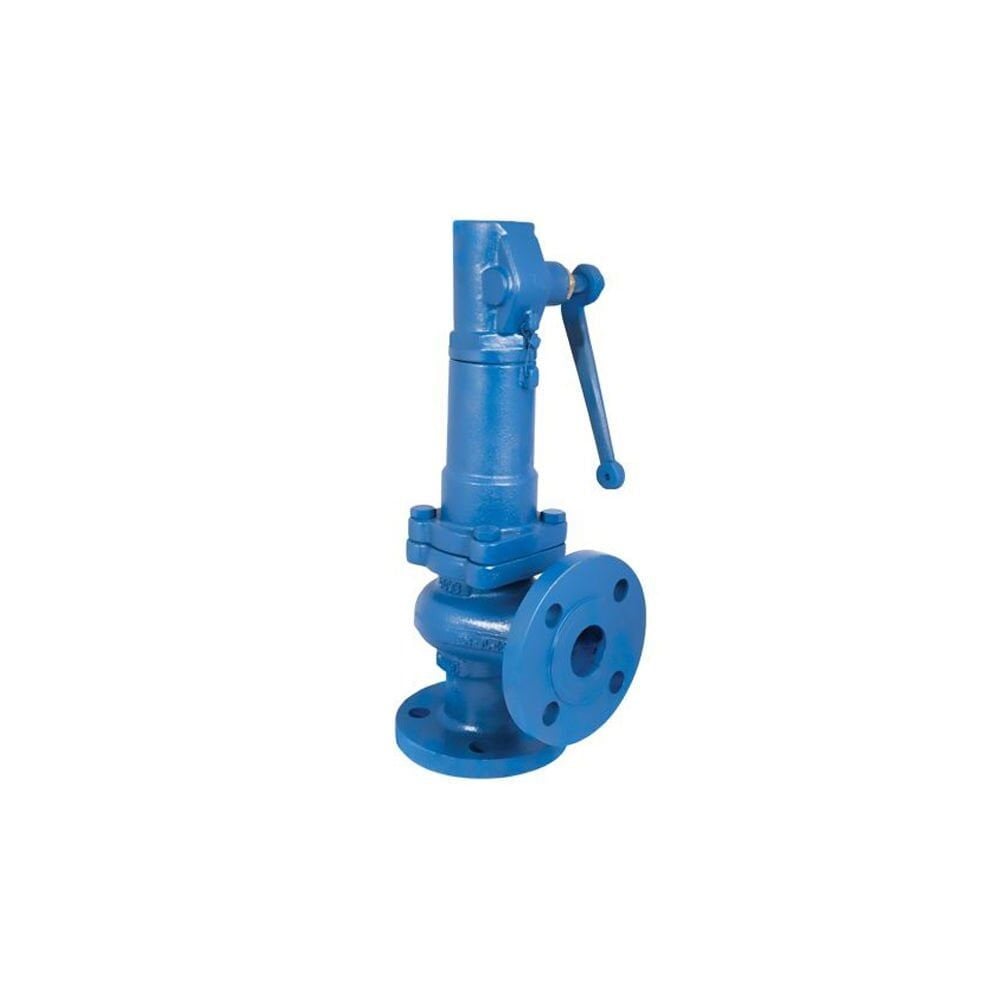

Duyar Proportional Lift Safety Relief Valve, Ductile Iron (Spring-Loaded, PN16)
PN16 · Safety Valves · DUYAR product
This product is sold with options. Please make your selection below before adding it to the cart.
17.610,06₺ incl. VAT
excl. VAT: 14.675,05₺
Proportional Lift Safety Valve (With Spring, PN 16)
GGG-40 Ductile iron
PN 16 Flanged
T-1515
Hot and Cold Water Systems, Superheated Water, Steam and Superheated Steam,
Suitable for compressed air and seawater.
General Specifications
Working Temperature: -10 ... +120 °C (16 Bar),
200 °C (13 bar), 250 °C (11 bar), 300 °C (10 bar)
Standards
Certificates:
Design: TS EN ISO 4126
Flange Dimensions: TS EN 1092-2 (PN 16)
Face-to-Face Dimensions : TS EN 558 (Series 8)
Tests: TS EN 12266-1
Applications
Hot and cold water systems, non-acidic and
non-alkaline liquids
Hot and cold water systems, non-acidic and
non-flammable liquid fluids
