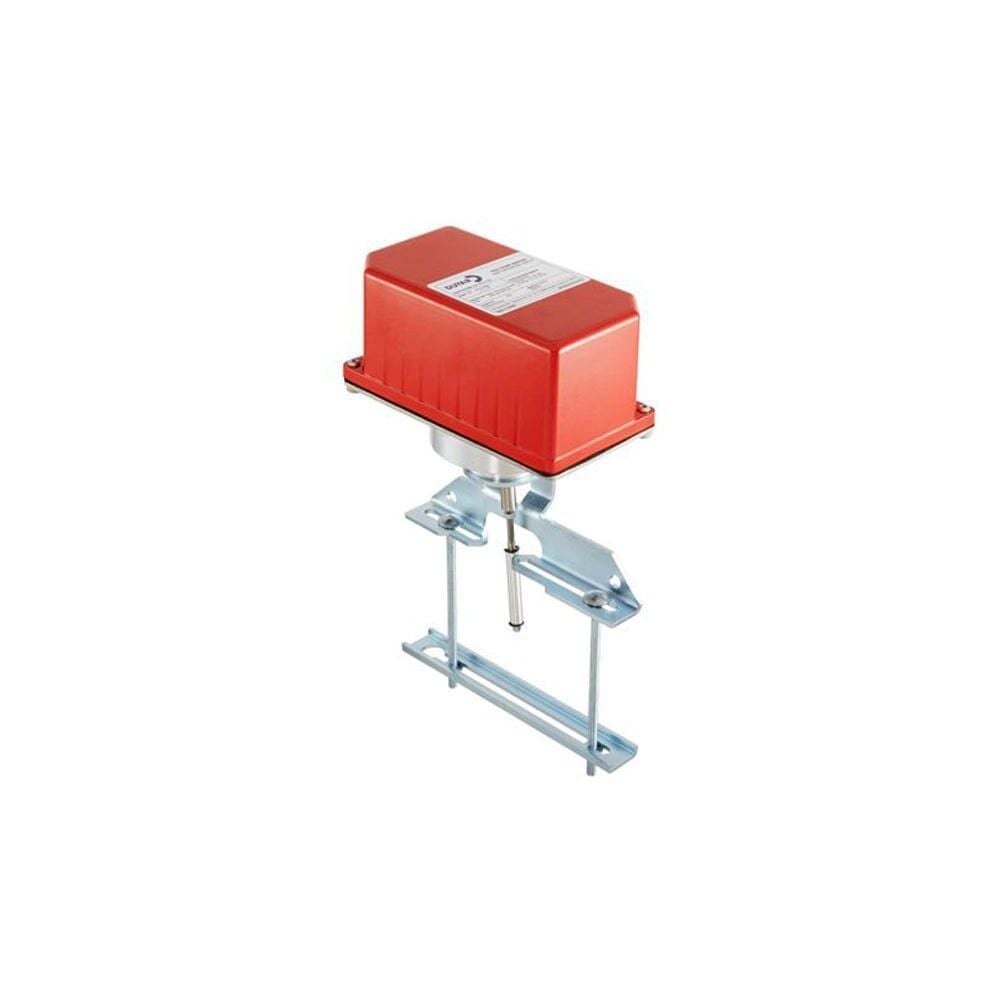

Duyar OS&Y Valve Supervisory Switch
Fire Protection Valves · DUYAR product
8.288,81₺ incl. VAT
excl. VAT: 6.907,34₺
OS&Y Supervisory Switch
General Specifications
Application: OS&Y Type Gate Valves
Size: DN15-DN300 / ½” – 12”
Environmental Limitations: 0°C to 50°C (32°F to 122°F)
For Indoor Use Only
Switch Contact Ratings: 10A-125 / 250 VAC 2.5A-24VDC
Dimensions: 203.3 × 89.1 × 165 mm (8˝ H × 3.507˝ W × 6.496˝ L)
OS&Y rising stem valve supervisory switches are used to monitor the open/closed position of the valve. When the valve opens or closes, the switch detects the up-and-
down movement of the stem and sends an electrical signal.
The OS&Y rising stem gate valve uses the supervisory switch to monitor its open/closed position. When the valve opens or closes, the switch
detects the movement of the stem and transmits an electrical signal.
