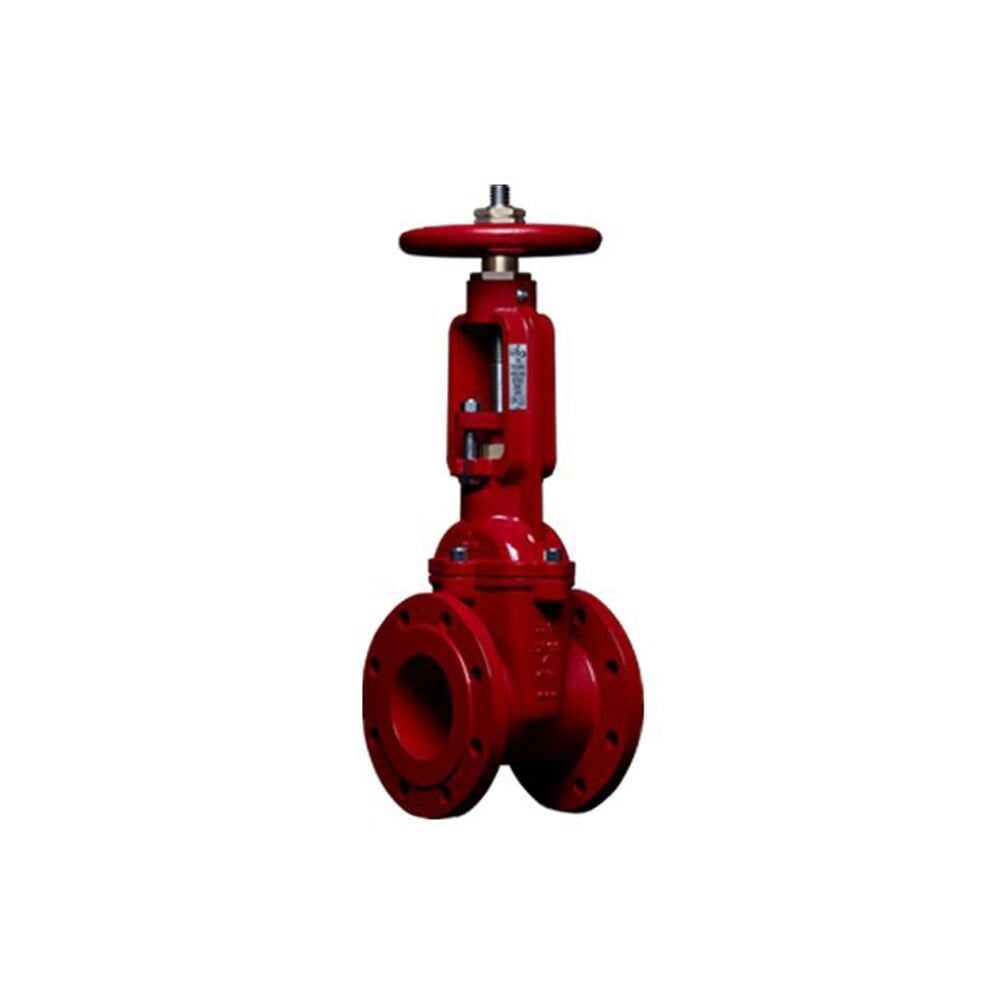

Duyar OS&Y Gate Valve 300 PSI, DN65–DN200

Y-4040 Rising Stem Gate Valve (OS&Y)

OS&Y Gate Valve

General Specifications

Size: 2 ½” - 8”/DN65 - DN200

Nominal Pressure: 300 psi (12.1 bar)

Working Temperature: -10˚C/+120˚C

Standards

Certificate: UL, FM

Design: FM 1120/1130, UL 262

Flange Connection Standard: EN -1092-2 (PN16) / ANSI

 Tests: FM 1120/1130, UL 262

  They are defined as zone control valves. To separate (control) the zones within a building, they are

used as shut-off valves on water supply lines. Butterfly valves or rising stem valves are used for shut-off or control purposes. Rising stem valves are a type of gate valve that, when fully open,

does not disturb smooth flow; the open position can be seen from the up-and-down movement of the stem, and electrical monitoring is possible by fitting a supervisory switch.

They cause less hydraulic loss than butterfly valves.

 They are defined as local control valves. Generally they are used in water feed lines as shut-off valves in order to separate (to control) zones

in the location. Butterfly valves or rising stem valves are used in order to shut off or to control the flow. The OS&Y valve in full open position is a type

of gate valve that does not hinder the flow; the open position enables the observation of the stem moving up and down and allows for electrical

monitoring with a supervisory switch. Compared to a butterfly valve, it has lower hydraulic losses.
