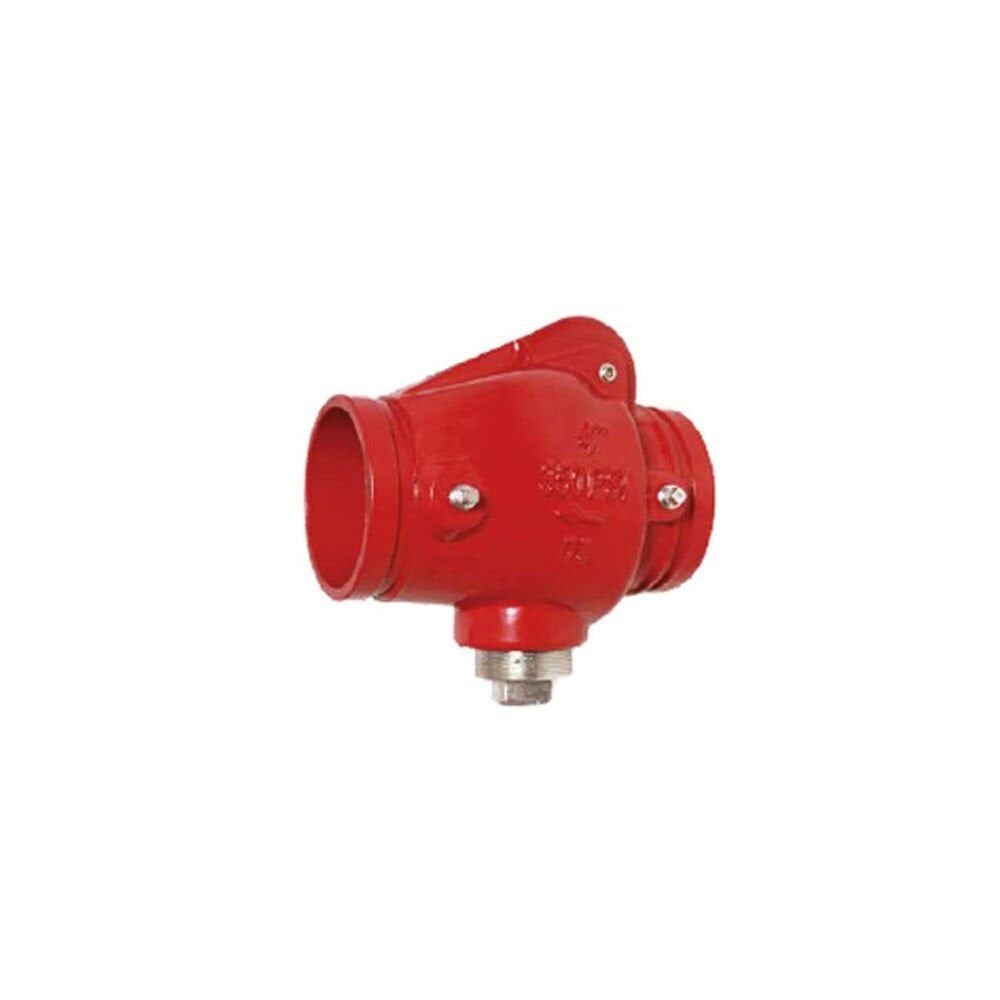

Duyar Grooved Swing Check Valve for Fire Protection
Fire Swing Check Valve (Grooved)
Y-5065-1
Swing check valves are intended for use where backflow must be prevented. They allow water to flow in one direction only.• Can be installed horizontally or vertically.• The flow direction is marked on the valve.• When flow stops, it closes automatically with the help of an integrated spring and prevents backflow.• Its spring-loaded disc design minimizes water hammer.• The grooved ends allow fast and easy installation with grooved couplings.• The EPDM seal and bronze seat provide excellent sealing.• In product testing it successfully passed 84 bar body strength and 42 bar disc strength and leak tests.
General Specifications
Size: 2”, 2 ½”, 3”, 4”, 5”, 6”, 8”, 10”, 12”
Nominal Pressure: 350 PSI
Maximum Working Temperature: 80˚C/176˚F
Coating: Electrostatic epoxy coating inside and outside.
Spray or other coating upon request.
Standards
Certificates: UL, FM
Flange Connection Standard: ASME/ANSI B16.1 Class
125 or ASME/ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB/T9113.1
Tests: FM 1120/1130, UL 262
