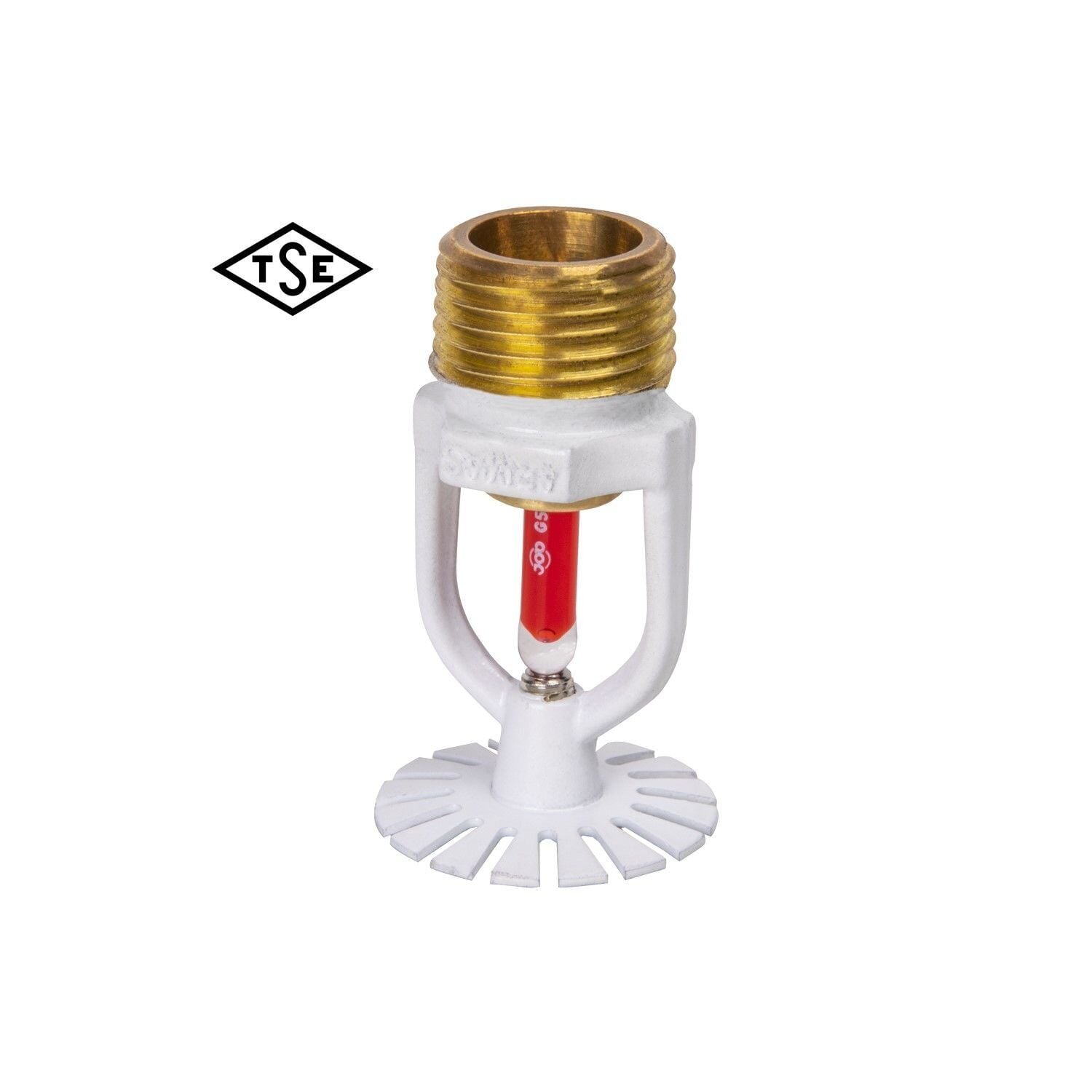

Duyar 57°C Quick Response Pendent Sprinkler 1/2″
DY 3427 K 5.6 (80) 1/2" NPT
57° Pendent Quick Response Sprinkler
Quick Response
Duyar pendent quick response sprinklers are easy to use and highly reliable. The sprinkler is installed on a specially designed pipe network so as to cover the area that requires protection. The liquid inside the glass bulb, one of the key parts of the sealing element, expands due to the heat generated by the fire and bursts the bulb. The temperature rating must be selected 30°C above the maximum expected ambient temperature. When the glass bulb of the sprinkler above the fire bursts, pressurized water strikes the deflector and is sprayed onto the fire. Only the sprinkler exposed to the temperature rise from the fire bursts and releases water.
General Specifications
• All hazard classes
• 3 mm bulb
Applications
• Hotel • Dormitory
• Hospital • Business center
They are preferred in areas with a suspended ceiling or where downward-facing sprinklers are suitable. They discharge water downward in a widening cone.
They can be used with escutcheons.
They are preferred for suspended ceilings or for locations where downward-facing sprinklers are suitable. Water is discharged downward in an expanding cone.
They can be used with escutcheons
