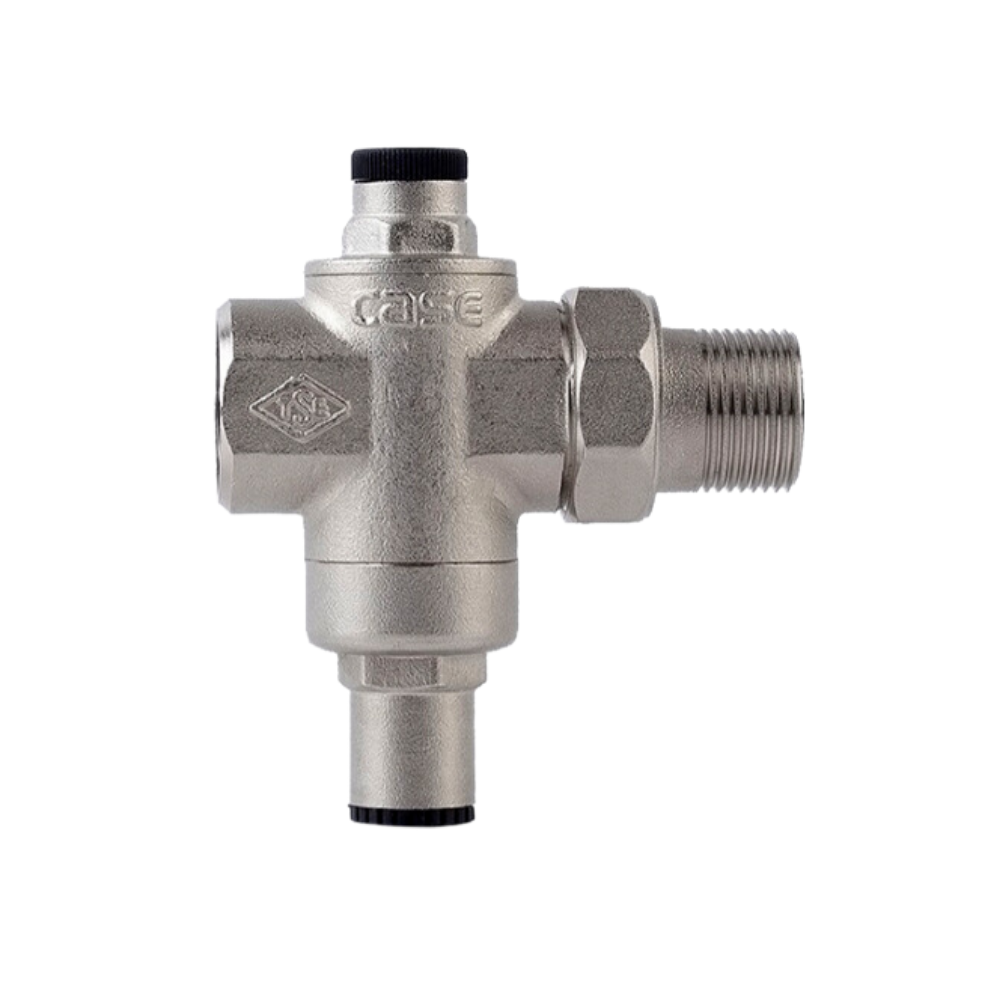

CASE 0415 Pressure Reducing Valve with Union
div>CASE - Pressure Reducing Valve with Union Fittings
| FEATURES | DESCRIPTION |
|---|---|
| Maximum Inlet Pressure | 16 bar |
| Pressure Setting Range | 1.5 - 6.5 bar |
| Factory Set Pressure | 3 bar |
| Maximum Temperature | 40° C |
| Medium | Water |
| Standard | EN 1567 |
| PRODUCT CODE | PRODUCT SIZE | CARTON QTY | UNIT PRICE |
|---|---|---|---|
| 0415 | 1/2" | 30 | Price on request |
| 0420 | 3/4" | 30 | Price on request |
The water pressure reducing valve lowers the pressure of high-pressure mains water
and is designed to prevent damage to the pipework and to the appliances
connected to it.
Water Pressure Reducing Valves:
- Prevents damage caused by water hammer.
- Prevents noise caused by pressurized water.
- Saves water by balancing the pressure. In laboratory tests,
Reducing a pressure of 7.8 bar to 3 bar has been shown to save 25%
of total water consumption.
- Protect washing machines, dishwashers, combi boilers and water heaters
from the harmful effects of high-pressure water.
* Not for use with air or gas; designed for water only.
How Does a Water Pressure Reducing Valve Work?
The operating principle of water pressure reducing valves is based on the balance
of two opposing forces.
These forces are:
1- The force exerted by the compressed spring
2- The force exerted by the water pressure on the piston
If the spring force is greater than the force acting on the piston, the piston
moves downward; if it is smaller, the piston moves upward, and
this regulates the outlet pressure in a controlled way.
