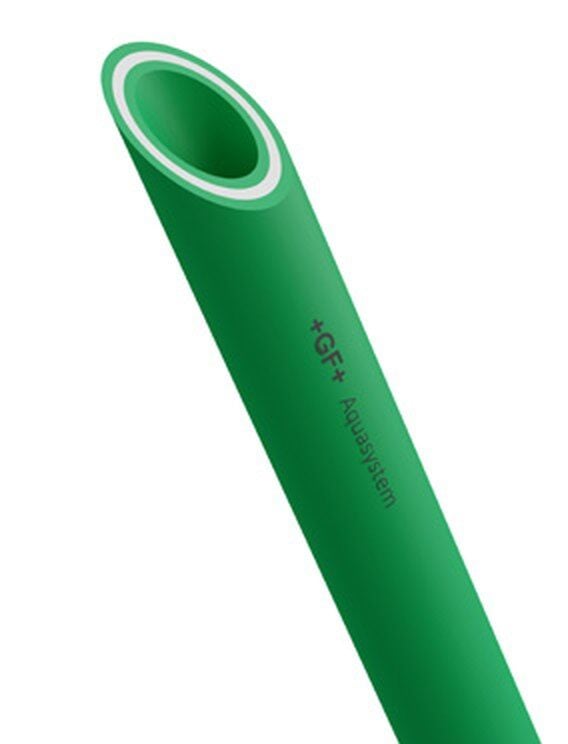

GF Hakan Plastik Aquasystem PP-RCT Glass Fiber Reinforced Pipe SDR9
PP-RCT Glass Fiber Reinforced Pipe SDR9 is a pressure pipe made from PP-RCT raw material; it belongs to the SDR 9 wall series (PN12.5). It is used in drinking water, hot water and heating lines.
The glass-fiber-reinforced middle layer significantly reduces the linear expansion of the pipe when it heats up. It is preferred for long risers and hot water lines because it reduces the need for fixing points and expansion compensators. The glass fiber is only in the middle layer; the inner surface in contact with water is pure polymer.
PP-RCT (PP-R with a modified crystalline structure) offers higher strength at elevated temperatures than standard PP-R; because the same pressure rating can be achieved with a thinner wall, the internal cross-section is larger.
Technical specifications
- Raw material: PP-RCT + glass fiber reinforcement
- Wall series: SDR 9 (PN12.5)
- Size range: Ø20 – Ø160 mm
- Joining: socket fusion (polyfusion) welding
- Color: green
- Sales unit: meter
- Order terms: minimum 4 m, in multiples of 4 m
About the brand
Aquasystem is the PP-R pipe and fittings range of GF Hakan Plastik. Hakan Plastik has been manufacturing plastic pipes since 1965 and has been part of Switzerland-based Georg Fischer (GF) since 2013. Novus Energy supplies the pipes, fittings, valves and fusion welding equipment of the Aquasystem PP-R system on a project basis.
